For use between a force gauge and another attachment or grip. Use them with a Mark-10 force gauge and test stand to create a complete compression testing system.
Model
Capacity
(lb / N)
Weight
(lb / kg)
A
ØB
C
D
G1024
200 / 1000
0.01 / 0.005
5.0 / 127.0
0.25 / 6.4
#10-32F
#10-32G
G1024-1
0.02 / 0.009
2.0 / 50.8
G1024-2
0.05 / 0.023
1.0 / 25.4
G1031
500 / 2500
0.05 / 0.023
5.0 / 127.0
0.5 / 12.7
5/16-18F
5/16-18F
G1031-1
0.1 / 0.045
2.0 / 50.8
G1031-2
0.05 / 0.023
1.0 / 25.4

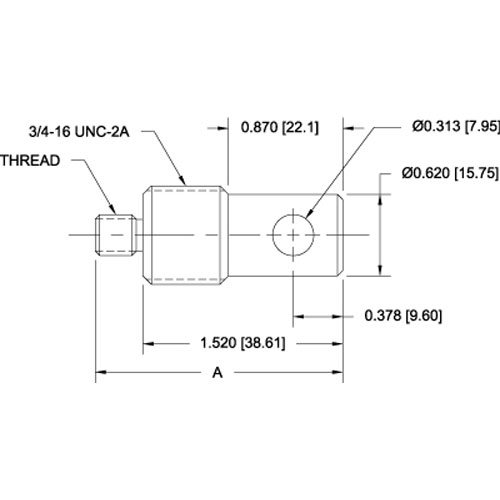

Mark-10 Eye End Adapters
These adapters provide a commonly accepted industry method of attaching fixtures to load cells and test frames. They prevent grip rotation and allow for quick removal and installation.
Several thread sizes and variations are available to suit most common test frames, load cells, grips, and force gauges. Eye ends and adapters are available individually or in kits.
Model No.
A
Thread
Weight lb [kg]
Capacity lbF [N]
G1081
1.82 [46.2]
#10-32
0.13 [0.06]
200 [1,000]
G1081-1
1.88 [47.8]
5/16-18
0.14 [0.06]
200 [1,000]
G1081-2
2.02 [51.3]
1/2-20
0.15 [0.07]
500 [2,500]
Mark-10 Chisel Points
For compressing or puncturing a variety of samples. Use them with a force gauge and a test stand to create a complete testing system.
Model
Capacity
(lb / N)
Weight
(lb / kg)
A
ØB
C
G1025
200 / 1000
0.003 / 0.001
0.5 / 12.7
0.5 / 12.7
#10-32F
G1032
500 / 2500
0.04 / 0.018
1.0 / 25.4
0.5 / 12.7
5/16-18F
Mark-10 Cone Points
For puncturing a variety of samples. Use them with a force gauge and a test stand to create a complete testing system.
Model
Capacity
(lb / N)
Weight
(lb / kg)
A
ØB
C
G1026
200 / 1000
0.003 / 0.001
0.5 / 12.7
0.5 / 12.7
#10-32F
G1033
500 / 2500
0.03 / 0.014
1.0 / 25.4
0.5 / 12.7
5/16-18F
Mark-10 V-Grooves
For compression testing of round or odd shaped samples. Use them with a force gauge and a test stand to create a complete testing system.
Model
Capacity
(lb / N)
Weight
(lb / kg)
A
ØB
C
D
G1027
200 / 1000
0.004 / 0.001
0.5 / 12.7
0.25 / 6.4
#10-32F
0.08 / 2.0
G1034
500 / 2500
0.04 / 0.018
1.0 / 25.4
0.5 / 12.7
5/16-18F
0.25 / 6.4
Mark-10 Thread Adapters
For use between a force gauge and another attachment or grip. Use them with a force gauge and a test stand to create a complete testing system.
Model
Capacity lbF [N]
Length in [mm]
Thread A
Thread B
Price
G1051
100 lb 500 N
0.55 [14.0]
#4-40M
#10-32M
$20.00
G1050
100 lb 500 N
0.75 [19.1]
#10-32F
#4-40M
$20.00
G1039
200 lb 1,000 N
0.75 [19.1]
#10-32F
#10-32F
$15.00
G1030
200 lb 1,000 N
0.50[12.7]
#10-32F
5/16-18M
$20.00
G1067
200 lb 1,000 N
0.75 [19.1]
#10-32F
1/2-20M
$20.00
G1048
200 lb 1,000 N
0.75 [19.1]
#10-32F
M4M
$20.00
G1057
200 lb 1,000 N
0.75 [19.1]
#10-32F
M6F
$20.00
G1054
200 lb 1,000 N
0.75 [19.1]
#10-32F
M6M
$20.00
G1060
200 lb 1,000 N
0.75 [19.1]
#10-32M
#10-32M
$20.00
G1063
200 lb 1,000 N
1.30 [33.0]
#10-32M
5/16-18F
$20.00
G1047
200 lb 1,000 N
0.75 [19.1]
#10-32M
M4F
$20.00
Model
Capacity lbF [N]
Length in [mm]
Thread A
Thread B
Price
G1069
500 lb 2,500 N
1.25 [31.8]
5/16-18F
1/4-28M
$20.00
G1037
500 lb 2,500 N
1.00 [25.4]
5/16-18F
5/16-18F
$20.00
G1059
500 lb 2,500 N
1.13 [28.7]
5/16-18F
1/2-20F
$20.00
G1066
500 lb 2,500 N
0.75 [19.1]
5/16-18F
1/2-20M
$20.00
G1049
500 lb 2,500 N
1.25 [31.8]
5/16-18F
M6M
$20.00
G1040
500 lb 2,500 N
0.92 [23.4]
5/16-18M
5/16-18M
$20.00
G1041
500 lb 2,500 N
1.06 [26.9]
1/2-20M
5/16-18M
$20.00
G1091
1000 lb 5,500 N
1.30 [33.0]
1/2-20F
1/2-20F
$20.00

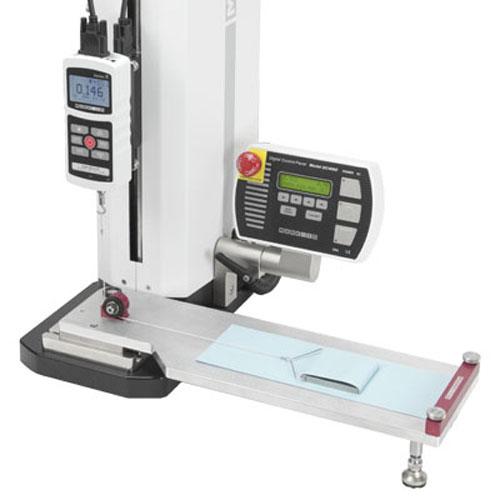

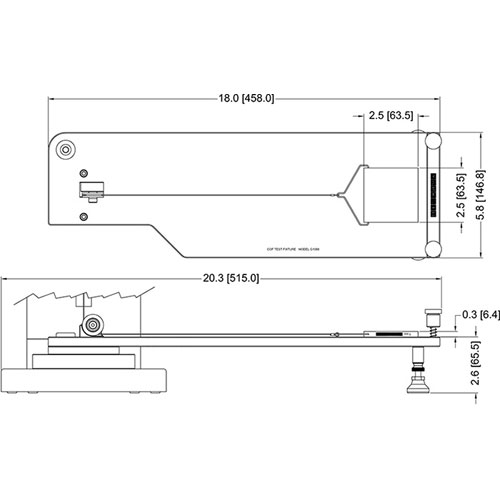

Mark-10 G1086 ASTM D1894 Coefficient of Friction Fixture
The G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients can be measured using the M5-2-COF gauge.
The fixture includes a large work table with sample clamp, level, 200 g sled, cable, and low-friction pulley. The fixture is directly compatible with the M5-2-COF gauge, ESM303 test stand, and ESM301 motorized test stand.
FEATURES & SPECIFICATIONS
Table surface material: 6061 T6 aluminum
Sled material: 303 SS
Maximum sled travel: 10.5 in (265 mm)
Mounts directly to the ESM303 and ESM301 motorized test stand

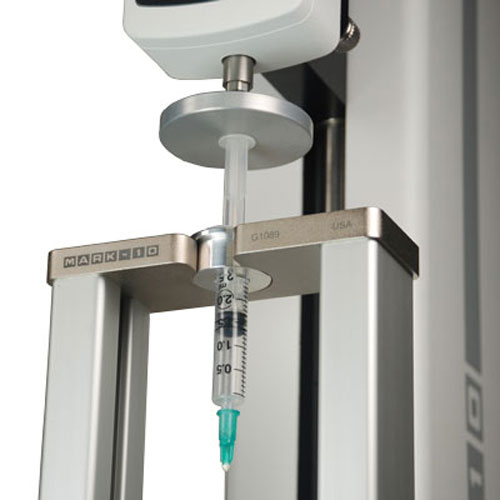

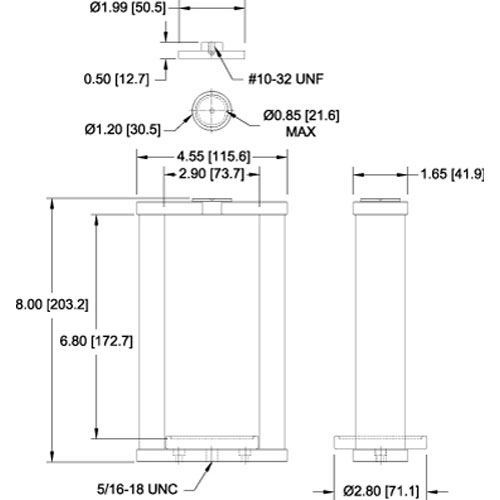

Mark-10 G1089 ISO 7886-1 Syringe Compression Fixture
This fixture is designed to test compression force of a syringe plunger, as per ISO 7886-1 and other relevant standards. Four blank stainless steel inserts are included, and may be drilled in the field to accommodate various diameter barrels. When used with appropriate instruments, such as an ESM303 test stand and Series 7 force gauge, initial and secondary peaks may be captured, as well as average force over a period of time.
FEATURES & SPECIFICATIONS
Secures a syringe assembly for plunger compression force testing
Capacity: 100 lbF [500 N]
Replaceable inserts, may be drilled in the field up to 0.85 in [21.6 mm] dia.
