This attachment is designed to simulate a finger for testing pushbuttons, membrane switches, etc. Use this grip with a Mark-10 force gauge and test stand to create a complete compression testing system.
Capacity
(lb / N) |
Weight
(lb / kg) |
| 50 / 250 |
0.01 / 0.004 |
|
Mark-10 G1018 Swivel Adapter |
|
Use these adapters between any grip and force gauge to provide a swiveling action for proper sample alignment.
| Model |
Capacity
(lb / N) |
Weight
(lb / kg) |
A |
B |
| G1018-1 |
200 / 1000 |
0.12 / 0.05 |
#10-32M |
#10-32M |
| G1018-2 |
500 / 2500 |
0.27 / 0.12 |
5/16-18M |
5/16-18M |
|
Mark-10 G1016 and G1017 Series STH Torque Sensor Attachments |
G1016-1 above
G1016-2 above
G1016-3 above
G1017 above
|
G1016 diagram above
G1017 diagram above
|
These attachments mount directly to Series STH torque sensors for various torque measurement applications. Select a size appropriate for your sample.
| G1016-1 |
100 / 11.3 |
026 / 0.12 |
2.9 / 73.7 |
0.188 / 4.7 |
0.028-0.25 / 0.7-6.3 |
| G1016-2 |
0.36 / 0.16 |
3.16 / 80.3 |
0.062-0.375 / 1.6-9.5 |
| G1016-3 |
0.67 / 0.3 |
3.73 / 94.7 |
0.078-0.5 / 2-12.7 |
| G1017 |
0.11 / 0.05 |
2.33 / 59.2 |
1/4" hex |
|
|

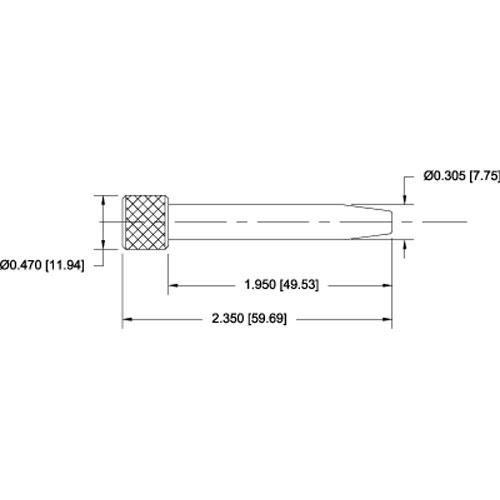

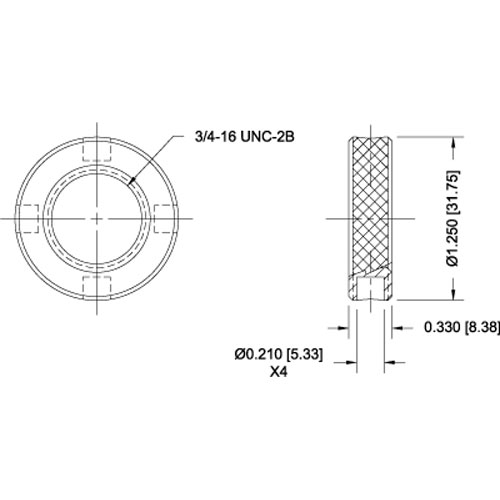

These adapters provide a commonly accepted industry method of attaching fixtures to load cells and test frames. They prevent grip rotation and allow for quick removal and installation.
Several thread sizes and variations are available to suit most common test frames, load cells, grips, and force gauges. Eye ends and adapters are available individually or in kits.
|
|
These adapters provide a commonly accepted industry method of attaching fixtures to load cells and test frames. They prevent grip rotation and allow for quick removal and installation.
Several thread sizes and variations are available to suit most common test frames, load cells, grips, and force gauges. Eye ends and adapters are available individually or in kits.
|
Mark-10 G1010 Jacobs Chuck Pin Vise |
|
This grip is suitable for holding round samples such as wire or tubing up to 0.375" dia. It can mount to any force gauge or test stand. Includes key.
| Model |
Capacity lbF [N] |
Weight lb [kg] |
A |
Chuck Key Size |
| G1010-1 |
30 lbF - [150 N] |
0.25 lb - [0.11 kg] |
0.028 - 0.25
[0.7 - 6.3] |
KGA |
| G1010 |
30 lbF - [150 N] |
0.35 lb - [0.16 kg] |
0.062 - 0.375
[1.6 - 9.5] |
KGA |
| G1010-2 |
30 lbF - [150 N] |
0.66 lb - [0.30 kg] |
0.078 - 0.5
[2.0 - 12.7] |
KK |
|
|
|
These hooks are ideal for a variety of tensile tests. Use them with a force gauge and a test stand to create a complete testing system.
| Model |
Capacity (lb / N) |
Weight (lb / kg) |
RA |
|
|
D |
| G1028 |
20 / 100 |
0.01 / 0.005 |
0.05 / 1.3 |
1.0 / 25.4 |
0.1 / 2.5 |
#10-32F |
| G1038 |
200 / 1000 |
0.02 / 0.009 |
0.2 / 5.1 |
1.5 / 38.1 |
0.19 / 4.8 |
#10-32M |
| G1035 |
500 / 2500 |
0.5 / 0.023 |
0.3 / 7.6 |
1.9 / 48.3 |
0.28 / 7.1 |
5/16-18M |
| G1042 |
1000 / 4500 |
0.32 / 0.145 |
0.5 / 12.7 |
4.1 / 104.1 |
0.45 / 11.4 |
1/2-20M |
|
Mark-10 G1029 & G1036 Flat Heads |
|
These attachments are ideal for compression testing of buttons, membrane switches, etc. Use them with a force gauge and a test stand to create a complete testing system.
| Model |
Capacity (lb / N) |
Weight (lb / kg) |
A |
B |
C |
G1029 |
200 / 1000 |
0.01 / 0.005 |
0.5 / 12.7 |
0.5 / 12.7 |
#10-32F |
G1036 |
500 / 2500N |
0.06 / 0.027 |
0.75 / 19.1 |
0.87 / 22.1 |
5/16-18F |
|
