Mark 10 Model TT02 Digital Torque Tool Tester
Authorized Dealer
The TT02 Series Torque Tool Testers present a simple and accurate solution for testing manual, electric, and pneumatic torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments

View Specifications Cart

call now

Specifications Chart

Mark 10 Model TT02 Digital Torque Tool Tester

FREE UPS Ground Shipping
(within the 48 continental US States)

Model:

Mark 10 ST002 Carrying case for Torque Tool Testers
Mark 10 ST002 Carrying case for Torque Tool Testers , add $190.00
Mark-10 AC1066-1 Rundown fixture, soft joint simulation
Mark-10 AC1066-1 Rundown fixture, soft joint simulation, add $237.50
Mark-10 AC1066-2 	Rundown fixture hard joint simulation
Mark-10 AC1066-2 Rundown fixture hard joint simulation, add $239.40

The TT02 Series Torque Tool Testers present a simple and accurate solution for testing manual, electric, and pneumatic torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments. The TT02 captures peak torque in both measurement directions, and also calculates 1st and 2nd peaks, useful for click-type tools

A blazingly fast sampling rate of 7,000 Hz and accuracy of ±0.3% produce reliable and consistent test results. The TT02 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output/zeroing/data storage upon tool slip or click, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration

Series TT02 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT02’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Note: Not for use with impact tools. Features

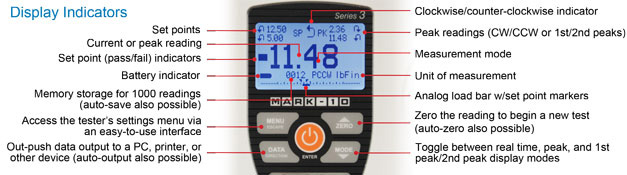

  • First / second peak capture for CW and CCW directions
  • 3/8” square receptacle accommodates common bits and attachments
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • 1,000-point data memory with statistics and outputs
  • USB, RS-232, Mitutoyo, and analog outputs Break detection: automatic output, data storage, and zeroing upon tool click/slip automates testing processes
  • Programmable set point indicators and outputs for pass/fail determination
  • Password protection prevents unauthorized changes
  • 5 selectable units of measurement
  • MESURTM Lite data collection software included
Model MTT02-12 MTT02-25 MTT02-50 MTT02-100
Price Mark-10 MTT02-12 Torque T
$1,420.25
buy now
Mark-10 MTT02-25 Torque T
$1,420.25
buy now
Mark-10 MTT02-50 Torque T
$1,420.25
buy now
Mark-10M MTT02-100 Torque
$1,420.25
buy now
lbFin 12 x 0.005 25 x 0.01 50 x 0.02 100 x 0.05
Ncm 135 x 0.1 290 x 0.2 570 x 0.5 1150 x 0.5
ozFin 192 x 0.1 400 x 0.2 800 x 0.5 1600 x 1
Nm 1.35 x 0.001 2.9 x 0.002 5.7 x 0.005 11.5 x 0.005
Accuracy: ±0.3% of full scale
Sampling Rate 7,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low
Battery Life Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units ozFin, lbFin, lbFft, Nm, Ncm
Outputs USB / RS-232: Configurable up to 115,200 baud.
UMitutoyo:: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog:±1 VCD, ±0.25% of full scale at capacity.
General purpose:Three open drain outputs, one input.
Set points:Three open drain lines.
Configurable Settings 1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload 150% of full scale (display shows “OVER” at 110% and above)
Weight 5.8 lb [2.6 kg]
Included items: 1/4" hex to 3/8" square adapter, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration (data is available for an additional charge).
Warranty 3 years (see individual statement for further details)
