Mark-10 EK3 Ergonomics testing kit

Force Measurement >> Mark-10

Series EK3 kits make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, physical therapy, and ergonomic studies. These kits present the ergonomist and other professionals with a simple and economical testing solution. 200 lbF and 500 lbF capacity force gauges are available. The kits consist of all the items listed below View Spec Cart

Mark-10 EK3 Ergonomics testing kit FREE UPS Ground Shipping (within the 48 continental US States) Model: Select EK3-100 $1,083.00 EK3-200 $1,083.00 EK3-500 $1,083.00    Mark-10 E1012 Looped cable (Does not fit into carrying cases. ), add $47.50 Mark-10 E1013 Myometer ki (Does not fit into carrying cases. Requires E1006 hook.), add $294.50

Series EK3 kits make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, physical therapy, and ergonomic studies. These kits present the ergonomist and other professionals with a simple and economical testing solution. 200 lbF and 500 lbF capacity force gauges are available.

Series 3 digital force gauge
• ±0.3% accuracy
• USB output
• Compact design, easy to hold
• Measures in lbF, kgF, or N
• Peak force capture for push and pull forces
• Durable construction ensures longevity
• Battery or AC operation
• USB output cable and driver

MESURTM Lite software - MESURTM Lite tabulates individual data points from Series 3 gauges. One-click export to Excel easily allows for further data manipulation.

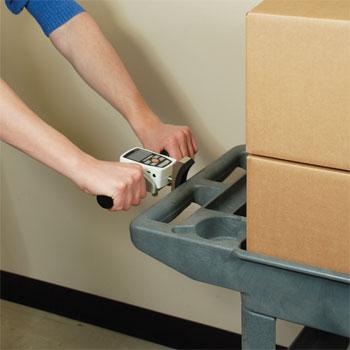

Double- and single-handle cradles - Contain non-slip rubber handles for various applications

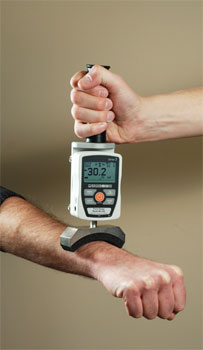

Padded attachments - Flat, curved, and square padded attachments mount directly to the force gauge for conducting strength analysis

Clevis Grip - Spring-loaded pin with ball plunger locks into place for added safety in pull tests.

Flat Attachment - Round attachment for compression tests.

Accessories - Cushioned carrying case, AC adapter, battery, user?s manual, and NIST-traceable certificate of calibration.

Model	EK3-100	EK3-200	EK3-500
Price	$1,083.00	$1,083.00	$1,083.00
Capacity X Resolution lb	100 x 0.02 lb	200 x 0.05 lb	500 x 0.1 lb
