Imada FB-Series Mechanical Push/Pull Force Gauges

	Quick Jump:

Imada FB/PS Mechanical Push/Pull Force Gauge

Imada FB-Series Mechanical Force Gauges
Price: All Models $430
currently in stock
Shipping Weight: 10 lbs. (estimate shipping cost)
Other Imada Force Gauges
Other Force Testing Products

The rugged construction of the FB gauges will withstand industrial environments and yet retain calibration for extended periods. The ergonomic design makes it ideal for hand-held use, or the gauges can be mounted to a test fixture. The zero-tare ring allows you to zero the gauge to compensate for measuring adapters and changes in measuring position, and the real time/peak hold selector switch allows you to observe transients or capture peaks.

Many ranges are available to cover all of your measurement needs. The FB gauges are sold as kits complete with gauge, hard carrying case, five measuring tips (flat head, conical, chisel, notched and small hook) as well as a 3" extension shaft. The PS resolution is 2 times greater than FB and the kit includes everything in the FB kit plus a large hook and Y-hook.

Features

Simple, rugged and virtually maintenance free
Retains a high degree of accuracy for extended periods
Ergonomic, heavy-duty metal construction
No batteries needed
Intrinsically safe in hazardous environments
Capacity up to 100 pounds (push/pull)
Overload capacity 165 pounds on all ranges
Tare ring
Real time and peak mode
Full set of accessories and carrying case included
Optional attachments

Pounds		Kilograms		Newtons
Model	Capacity x Resolution	Model	Capacity x Resolution	Model	Capacity x Resolution
FB-32oz	32 x 0.25 oz $430.00	FB-1kg	1 kg x 10 g $430.00	FB-10N	10N x 0.05 N $430.00
FB-2	2 x 0.02 lb $430.00	FB-2kg	2 kg x 20 g $430.00	FB-20N	20N x 0.1 N $430.00
FB-5	5 x 0.05 lb $430.00	FB-3kg	3 kg x 25 g $430.00	FB-30N	30 N x 0.2 N $430.00
FB-10	10 x 0.1 lb $430.00	FB-5kg	5 kg x 50 g $430.00	FB-50N	50N x 0.25 N $430.00
FB-20	20 x 0.2 lb $430.00	FB-10kg	10 kg x 100 g $430.00	FB-100N	100 N x 0.5 N $430.00
FB-30	30 x 0.25 lb $430.00	FB-20kg	20 kg x 200 g $430.00	FB-200N	200 N x 1 N $430.00
FB-50	50 x 0.5 lb $430.00	FB-30kg	30 kg x 250 g $430.00	FB-300N	300 N x 2 N $430.00
FB-100	100 x 1 lb $430.00	FB-50kg	50 kg x 500 g $430.00	FB-500N	500 N x 2.5 N $430.00
FB-150	150 x 1 lb - (Accuracy: ±0.5% F.S.) $550.00

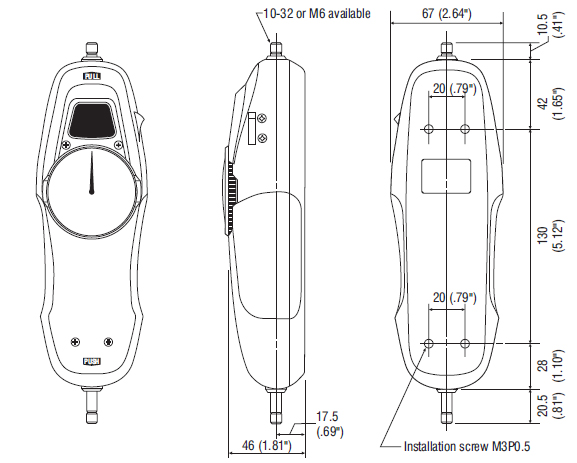

Dimensions
