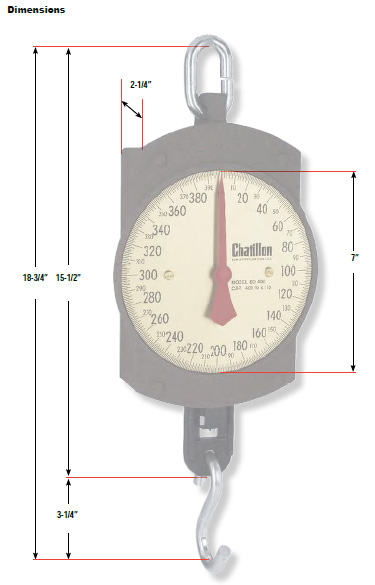

The CHATILLON® BD Series hanging scales are designed for weighing large or small loads up to 400 lbs. Ideal for agriculture, warehouses, workshops or
the home. Scales are constructed with a heavy, protective cast-iron runner and housing with large, easy-to-read 7-inch dial. Dials have large, bold black
numbers and graduations. Scales achieve full capacity in one revolution
Scales feature a convenient zero adjustment screw. Scale is factory calibrated using certified NIST weights. Scale comes with plated top loop and bottom
hook
Features
Large, Easy-to-Read Brass Dial
7-inch High Contrast Dial
Full Capacity in 1 Revolutions
Plated Top Loop and Bottom Hook
1 Year Warranty
Model
BD-200
BD-400
Price
$259.95
$269.95
Capacity x Resolution
200 lb x 1/2 lb
400 lb x 1 lb
Safe Overload
120% of rated capacity
Ultimate Overload
125% of Rated Capacity
Display
Single Reading
Operating Temperature
32o to 104oF (0o to 40oC)
Storage Temperature
-4o to 104oF (-20o to 40oC)
Model
Resolution
Range
Scale Divisions
Tolerance Division
Tolerance Weight
%Accurate
BD-200
200 lb x 1/2 lb
0-25 lb
0-50
+1/2 d
+0.25 lb
+0.13%
26 - 100 lb
51-200
+1 d
+0.5 lb
+0.25%
101 - 200 lb
201 - 400
+1-1/2 d
+0.75 lb
+0.38%
BD-400
400 lb x 1 lb
0-50 lb
0-50
+1/2 d
+0.5 lb
+0.13%
51 - 200 lb
51-200
+1 d
+1 lb
+0.25%
201 - 400 lb
201 - 400
+1-1/2 d
+1.5 lb
+0.38%

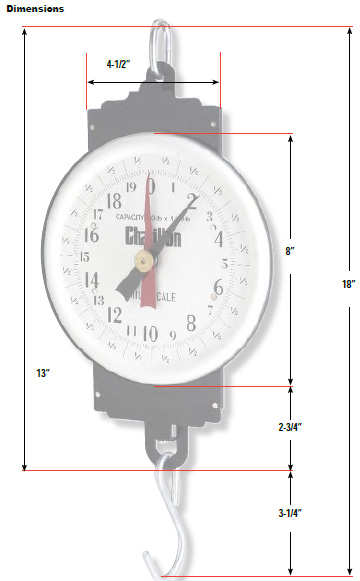

Milk Scales / Dairy Scales - Models 260/270 MD
The CHATILLON® MD-60 Series hanging scale is designed expressly for dairy applications. Scale is constructed of heavy gauge japanned steel with large,
easy-to-read 8-inch dial. Dials have large, bold black numbers and graduations. The MD-60 scale has two pointers- one pointer can be locked to indicate
net tare weight; the other pointer indicates gross weight. Scale capacity is achieved in 3 pointer revolutions. Scale capacity is 60 lbs. Measurements are
in 1/10 lb increments.
Scales feature a convenient zero adjustment screw. Scale is factory calibrated using certified NIST weights. Scale comes with top loop and bottom hook.
Loop and hook are plated.
Features
Large, Easy-to-Read Dial
8-inch High Contrast Dial
Twin Pointers for Net and Gross Weight
Full Capacity in 3 Revolutions:
Plated Top Loop and Bottom Hook
1 Year Warranty
Model
MD-60 (270MD)
Price
$169.06
Capacity x Resolution
60 lb x 1/10 lb
Safe Overload
120% of rated capacity
Ultimate Overload
125% of Rated Capacity
Display
Single Reading
Operating Temperature
32o to 104oF (0o to 40oC)
Storage Temperature
-4o to 104oF (-20o to 40oC)
Model
Resolution
Range
Scale Divisions
Tolerance Division
Tolerance Weight
%Accurate
MD-60
60 lb x 1/10 lb
0-5 lb
0-50
+1/2 d
+0.05 lb
+0.08%
6 - 20 lb
51-200
+1 d
+0.1 lb
+0.17%
21 - 40 lb
201 - 400
+1-1/2 d
+0.15 lb
+0.25%
41 - 60 lb
400 +
+2-1/2 d
+0.25 lb
+0.42%
Warehouse Scales - Models 773H, 6050, 6100, 6200
The CHATILLON® Warehouse Series hanging scales are designed for general purpose applications. Scales are constructed of heavy gauge japanned steel
with large, easy-to-read 8-inch dial. Dials have large, bold black numbers and graduations.
Scales feature a convenient zero adjustment screw. Scale is factory calibrated using certified NIST weights. Scale comes with top loop and bottom hook.
Loop and hook are plated.
