Optional HV/W-06G Built-in Printer for VFD models |
AND Weighing HV-G Series Industrial Platform Scales - Legal for Trade
Note: "-NC" models do not include the column
currently in stock
Shipping
Weight: See below (estimate shipping
cost)
Other AND
scales
Other Industrial
scales
|

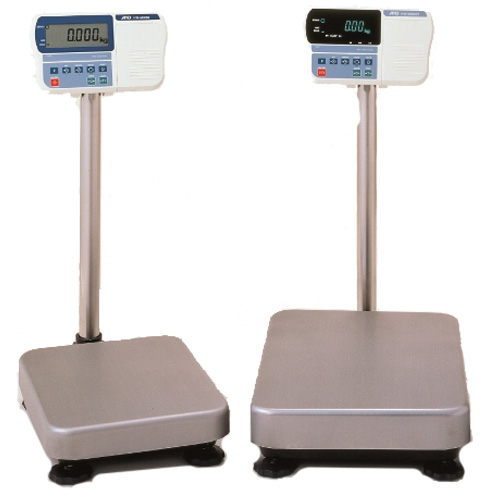

 The AND Weighing HV-G Series NTEP Legal for Trade industrial platform scales provide counting, percentage, and comparator functions. These versatile platform scales are useful for packaging, shipping, pharmaceutical, and other applications.
- Comparator - Set the high and low weight targets and show HI/OK/LO on the disipaly
- Triple Range - Resolution can be changes automatically for three capacity levels
- Large and clear LCD or VFD display: 1 inch (25 mm) high digits on the LCD / 0.8 inch (20 mm on VFD
- Stainless Steel weighing pan
- Water and dust protection for Load Cell sensor: the Gore-tex® membrane wicks moisture away and keeps it away
 Optional comparator buzzer - optional comparator output sounds buzzer on selected comparator sounds - Setpoint control for simple batching - The weighing data can be controlled at three setpoints: Full Flow, Preliminary, Zero Band outputs
- Tilting meter head - Meter head tilts on the column to adjust for the best viewing angle. Relieves neck and eye strain
- Standard RS-232C - Bidirectional RS232C interface to connect with printer or PC
- Measures in lbs, kgs, oz
- Works with WinCT Software
- Counting and percent functions
- M+ function for totaling weighing data
- Water and dust resistant
- 2 year warranty
With LCD Display:
| Model |
HV-200KGL |
| Price without Column (-NC) |
|
| Capacity x Readability (lb) |
500 x 0.2 |
300 x 0.1 |
150 x 0.05 |
| Capacity x Readability (kg) |
220 x 0.1 |
150 x 0.05 |
60 x 0.02 |
| Operating Temperature |
-10 C to 40 C |
| Legal for Trade |
NTEP (CC No. 00-088)
Measurement Canada (Approval No. AM-5404) |
| Linearity (±g) |
100 |
50 |
20 |
| Pan Size (in/mm) |
15.4 x 20.9 /
390 x 530 |
| Physical Dimensions (in/mm) |
15.4 x 28 x 30.4 / 390 x 712 x 773 |
| Power |
AC adapter or 6 DD alkaline batteries (600 hrs)
|
| Approximate Weight |
37.5 lb / 17 kg |
| Standard Accessories |
AC adapter, Display cover, Manual |
With VFD Display:
| Model |
HV-15KGV |
HV-200KGV |
| Price with Column |
$645.00
 |
|
| Price without Column (-NC) |
$567.00
|
$699.00
|
| Capacity x Readability (lb) |
30 x 0.01 |
15 x 0.005 |
6 x 0.002 |
5000 x 0.2 |
300 x 0.1 |
150 x 0.05 |
| Capacity x Readability (kg) |
15 x 0.005 |
6 x 0.002 |
3 x 0.001 |
220 x 0.1 |
150 x 0.05 |
60 x 0.02 |
| Operating Temperature |
-10 C to 40 C |
| Legal for Trade |
NTEP (CC No. 00-088)
Measurement Canada (Approval No. AM-5404) |
| Linearity (±g) |
5 |
2 |
1 |
100 |
50 |
20 |
| Pan Size (in/mm) |
9.8 x 9.8 /
250 x 250 |
15.4 x 20.9 /
390 x 530 |
| Physical Dimensions (in/mm) |
10.8 x 18.7 x 14.5 / 275 x 474 x 368 |
15.4 x 28 x 30.4 / 390 x 712 x 773 |
| Power |
AC |
| Approximate Weight |
15.4 lb / 7 kg |
39.7 lb / 18 kg |
| Standard Accessories |
Display cover, Manual |
|
