For management of masses in ASTM Class 2-7 and OIML Class F1 and below
Equipped with an internal mass for simplifi ed calibration of the balance. Enhanced function settings reduce errors due to drafts and vibrations.
| Model |
Applicable mass |
0.2g |
0.5g |
1g |
2g |
5g |
10g |
20g |
50g |
100g |
200g |
500g |
1kg |
2kg |
5kg |
10kg |
20kg |
50kg |
100kg |
| MC-1000 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MC-6100 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MC-10K |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MC-30K |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MC-100K |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Auto-centering Pan Options
Improve mass comparison by correcting eccentric loadings
Precision balances with extended resolution
The MC Series may also be used as high resolution balances. Display weighing results with an extra decimal place not normally found in balances of this capacity. The extended resolution enables measurements of minute weight changes of heavy objects and small variations with heavy tare containers.
Example Applications
- Precious metal weighing
- Fill ratio of gas cylinders
- Electronic & semiconductor manufacturing
- Moisture content of catalysts
- Pharmaceutical manufacturing
- Precision check-weighing with wider ranges
- Discharge from feeders (loss-in-weight)
- Cutting dust (contaminants) left on mechanical parts
- Particles trapped by particulate filters
| Model |
MC-1000 |
MC-6100 |
MC-10K |
MC-30K |
MC-100K |
| Price |
$4,584.25
|
$4,587.40
|
$5,494.60
|
$5,494.60
|
$6,644.35
|
| Capacity x Readability |
1100g x 0.0001g (0.1 mg) |
6100g x 0.001g (1 mg) |
10.1 kg x 0.001g (1 mg) |
31 kg x 0.01 g |
101 kg x 0.1 g |
| Repeatability (Standard Deviation)*1 |
0.0005 g / 1 kg |
0.004 g / 5 kg |
0.005 g / 10 kg |
0.015 g / 20 kg |
0.2 g (for 100 kg) |
| 0.0004 g / 500 g |
0.0015 g / 2 kg |
0.004 g / 5 kg |
0.1 g (for 60 kg) |
| Linearity |
±0.002 g |
±0.02 g |
±0.03 g |
±0.2 g |
±2 g |
| Sensitivity drift (10 °C to 30 °C) |
±2 ppm / °C |
±3 ppm / °C |
±6 ppm / °C |
| Operating temperature |
5 °C to 40 °C (41 °F to 104 °F), 85%RH or less (no condensation) |
| Display refresh rate |
5 times / second or 10 times / second |
| Standard interface |
RS-232C |
| Display mode |
kg, g, oz, lb, lb-oz, Troy oz, carat, momme, dwt, grain |
| Internal calibration |
internal calibration |
| Weighing pan (diameter) |
128 x 128 mm |
165 x 165 mm |
270 x 210 mm |
270 x 210 mm |
386 x 346 mm |
| Power consumption |
Approx. 11 VA (supplied by the AC adapter) |
Approx. 15 VA (supplied by the AC adapter) |

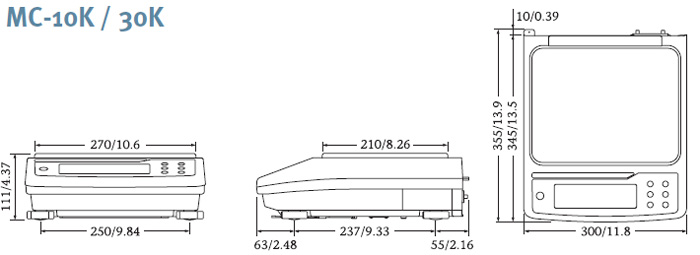

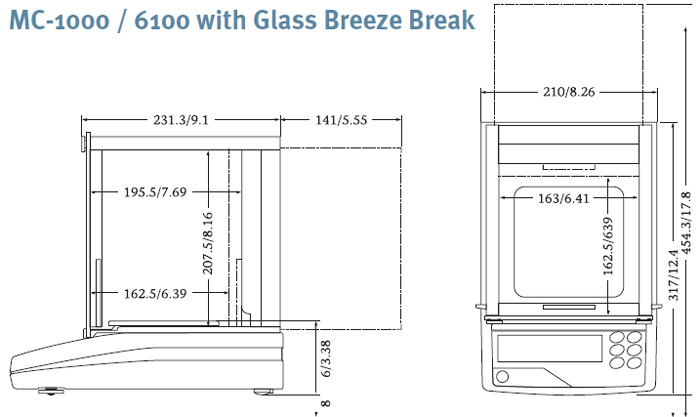

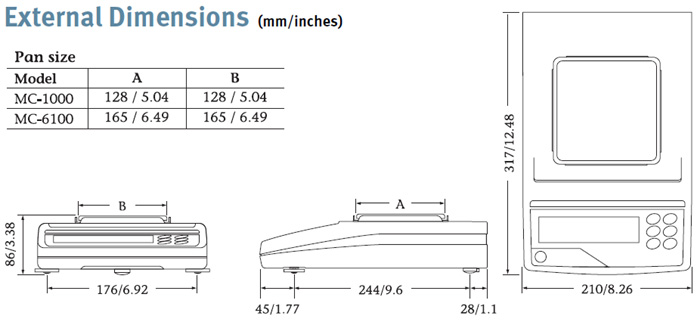

| External dimensions |
210 (W) x 317 (D) x 86 (H) mm |
300 (W) x 355 (D) x 111 (H) mm |
Platform: 346 (W) x 443 (D) x 130 (H) mm (Cable length: 3 m) |
| Net weight |
Approx. 4.6 kg |
Approx. 5.1 kg |
Approx. 9.3 kg |
Approx. 18 kg |
| Standard accessories |
AC adapter, Instruction manual, Glass breeze break (MC-1000/6100) or
Simple breeze break (MC-10K/30K), In-use cover, WinCT (CD-ROM) |
AC adapter, Instruction manual,In-use cover, WinCT (CD-ROM) |
|
