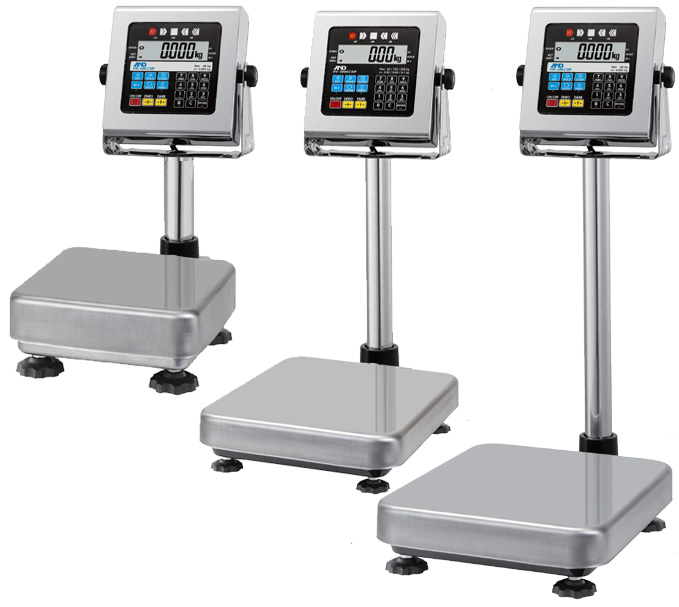

AND Weighing HV-CWP/HW-CWP Series Waterproof Platform Scales - Legal for Trade
currently in stock
Shipping
Weight: see below. (estimate shipping
cost)
Other AND
scales
Other Industrial
scales
|
How to Reduce Waste and Increase Productivity
The A&D HV-CWP/HW-CWP series is a multi-functional platform scale fitted for measurement under wet conditions. With a durable construction, high-speed response times and exceptional check weighing capabilities, it can meet the demands of even the most challenging industrial applications.
IP65 dust & waterproof *1 with stainless steel (SUS304) surface
Downtime and loss is reduced as scales without waterproofing often result in being damaged within a short period of time. Additionally, these features allow you to keep the scale clean and hygienic.
*1 Permits no ingress of dust and withstands water jetting from any direction.
High-speed measurement?response in 1 second or less (typical for the HV-CWP series) *2
Fast-paced weighing is an essential prerequisite for streamlining operations.
*2 Time required for the last digit to settle (the stabilization mark will be lit one second after). With the HW-CWP series, response typically takes not more than 1.5 seconds.

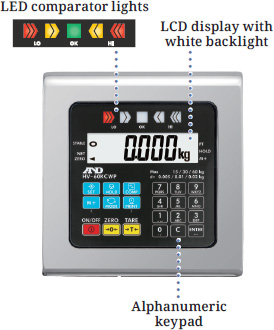

Bright and multi-colored 5-step LED comparator lights
With highly intuitive comparator lights, check weighing (judging whether the measured weight is within the designated limits) becomes far more accurate and efficient than with a numeric display alone, leading to a significant cost reduction.
Auto-tare and negative comparison functions
The scale can perform tare automatically when the weight reaches the set target range. Additionally, negative values can be used as comparator limits. With these functions combined, you can perform "take-away" check weighing, that is, removing a target amount repeatedly from its container with no key press.
LCD display (26 mm character height) with white backlight
Do not underestimate the effect of display visibility on operators' work efficiency, fatigue and tendency to make errors, especially in areas where illumination is not sufficient.
Quick and easy settings using the alphanumeric keypad
Direct alphanumeric input makes it simple and straightforward to enter/re-enter preset tare values, comparator limits, calibration values and various internal settings.
Key lock function
You can inhibit the use of certain keys to prevent operators from making unwanted changes to the scale settings.
Optional roller conveyers
Large and medium-size roller conveyers (HVW-13 and HVW-14 respectively) can make measurements of heavy objects in conveyer systems smoother and quicker.
Wide selection of capacities and resolutions
Select a scale that best suits your purpose and budget from either HV-CWP series of three multi-interval*3 models and HW-CWP series of four high-resolution models (see the specifications for details).
*3 The lighter the target object, the finer the readability.
Two slots for optional data communication interfaces
One is for a comparator relay output/buzzer interface (HVW-04CWP), which enables signaling check weighing results by buzzer and/or external comparator (traffic) lights. The other is for either USB interface (HVW-02BCWP)*4 or RS-232C interface (HVW-03CWP) for outputting data, entering commands, and changing the scale settings externally. The scale is still IP65 with HVW-04CWP and/or HVW-03CWP installed.*5
*4 For communication with a PC only. The driver software can be downloaded for free.
*5 Except if a loose-wire cable is used for connection. When HVW-02BCWP is installed, the scale is no longer dust or waterproof.
Other Useful Features
- GMP/GLP compliant output to meet documentation requirements
- Universal Flexi Coms (UFC) function that lets you edit serial data output format or printout format
- Display hold function that makes it easy to read and record the display value when external disturbances can occur unexpectedly
- Counting mode to count a number of small pieces of the same mass value instantly and precisely
- Accumulation (M+) function to display the sum total of separate weighing results
- Display angle freely adjustable to suit the convenience of individual operators
- Display unit holder (AX-043005266) available to separate the display unit from the scale on a bench
| Model |
HV-15KCWP |
HV-60KCWP |
HV-200KCWP |
HW-10KCWP |
HW-60KCWP |
HW-100KCWP |
HW-100KCWP |
| Price |
$870.40
 |
$998.40
|
$1036.80
|
$1088.00
|
$1126.40
|
$1184.00
|
$1241.60
|
| Capacity x Readability |
3 x 0.001 kg*
6 x 0.002 kg*
15 x 0.005 kg* |
15 x 0.005 kg*
30 x 0.01 kg*
60 x 0.02 kg* |
60 x 0.02 kg*
150 x 0.05 kg*
220 x 0.1 kg* |
10 x 0.001 kg |
60 x 0.005 kg |
100 x 0.01 kg |
220 x 0.02 kg |
6 x 0.002 lb*
15 x 0.005 lb*
30 x 0.01 lb* |
30 x 0.01 lb*
60 x 0.02 lb*
150 x 0.05 lb* |
150 x 0.05 lb*
300 x 0.1 lb*
500 x 0.2 lb* |
20 x 0.002 lb |
150 x 0.01 lb |
200 x 0.02 lb |
500 x 0.05 lb |
96 x 0.05 oz*
240 x 0.1 oz*
480 x 0.2 oz* |
480 x 0.2 oz*
960 x 0.5 oz*
2400 x 1 oz* |
2400 x 1 oz*
4800 x 2 oz*
8000 x 5 oz* |
320 x 0.05 oz |
2400 x 0.2 oz |
3200 x 0.5 oz |
8000 x 1 oz |
| 30 lb x 0.1 oz |
- |
20 lb x 0.1 oz |
- |
Max. countable number
(Counting mode) |
150,000 |
120,000 |
110,000 |
100,000 |
120,000 |
100,000 |
110,000 |
Number of samples
(Counting mode) |
5, 10, 20, 50 or 100 |
| Legal for Trade) |
NTEP #17-099A2, Canada AM-6088r1 |
| Capacity x Readability |
3 x 0.001 kg*
6 x 0.002 kg*
15 x 0.005 kg* |
15 x 0.005 kg*
30 x 0.01 kg*
60 x 0.02 kg* |
60 x 0.02 kg*
150 x 0.05 kg*
220 x 0.1 kg* |
- |
- |
- |
- |
6 x 0.002 lb*
15 x 0.005 lb*
30 x 0.01 lb* |
30 x 0.01 lb*
60 x 0.02 lb*
150 x 0.05 lb* |
150 x 0.05 lb*
300 x 0.1 lb*
500 x 0.2 lb* |
- |
- |
- |
- |
| Rated |
IP65 |
| Stabilization time*ii |
Within 1 second |
Within 1.5 seconds |
| Repeatability (std. deviation) [kg] |
0.001 / 0.002 / 0.005 |
0.005 / 0.01 / 0.02 |
0.02 / 0.05 / 0.1 |
0.002 |
0.01 |
0.02 |
0.04 |
| Linearity [kg] |
±0.001 / ±0.002 / ±0.005 |
±0.005 / ±0.01 / ±0.02 |
±0.02 / ±0.05 / ±0.1 |
±0.002 |
±0.01 |
±0.02 |
±0.04 |
| Sensitivity drift |
±20 ppm / (5 to 35 C / 41 to 95 F) |
| Display |
7 segment LCD (Character height: 26 mm) with backlight
3-color, 5-step LED comparator lights |
| Display update |
10 times / second |
| Operating environment |
-10 C to 40 C / 14 F to 104 F, 85% R.H. or less (no condensation) |
| Power supply |
AC main (100 to 240 V) |
| Weighing pan size |
250 x 250 mm
9.8 x 9.8 in |
330 x 424 mm
13.0 x 16.7 in |
390 x 530 mm
15.4 x 20.9 in |
250 x 250 mm
9.8 x 9.8 in |
330 x 424 mm
13.0 x 16.7 in |
390 x 530 mm
15.4 x 20.9 in |
390 x 530 mm
15.4 x 20.9 in |
| Dimensions (W × D × H) |
250 x 470 x 430 mm
9.8 x 18.5 x 16.9 in |
330 × 616 x 752 mm
13.0 × 24.3 x 29.6 in |
390 × 722 x 752 mm
15.4 × 28.4 x 29.6 in |
250 x 470 x 430 mm
9.8 x 18.5 x 16.9 in |
330 × 616 x 752 mm
13.0 × 24.3 x 29.6 in |
390 × 722 x 752 mm
15.4 × 28.4 x 29.6 in |
390 × 722 x 752 mm
15.4 × 28.4 x 29.6 in |
| Weight (approx.) |
8 kg / 18 lb |
12 kg / 26 lb |
19 kg / 42 lb |
8 kg / 18 lb |
12 kg / 26 lb |
19 kg / 42 lb |
19 kg / 42 lb |
| Options |
HVW-02BCWP - USB interface (bi-directional, type mini-B)
HVW-03CWP - RS-232C interface (terminal block)
HVW-04CWP - Comparator relay output/buzzer interface
HVW-13 - Large roller conveyer (for the 100 to 200 kg capacity models)
HVW-14 - Medium-size roller conveyer (for the 60 kg capacity models) |
| Accessories |
AD-1612 - Comparator buzzer
AD-8127 - Compact printer
AD-8526 - Serial/Ethernet converter
AD-8922A - Remote controller
AX-KO3285-320 - RS-232C cable for PC and AD-812 (D-Sub 9P, 3 m)
AX-043005266 - Display unit holder |
* Multi-interval: The lighter the target object, the finer the readability.
*ii Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
