AND
Weighing GXK-Series Industrial Scales
currently in stock
Shipping
Weight: 20 lbs. (estimate shipping
cost)
Other AND
scales
Other Industrial
scales
|

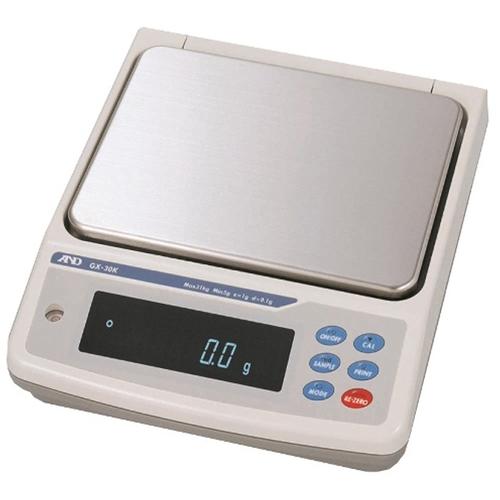

A&D Weighings GXK series industrial
scales with Super Hybrid Sensor® (SHS) technology to improve
response speed, accuracy and minimize maintenance costs. THe
GXK series' unique design provides the fastest response speed
in their class - just 1.5 seconds! This digital industrial
scale is available in capacities from 2 kg to 30 kg and max
0.01 g readability. With internal calibration, RS232 and multiple
weighing modes
- Internal Calibration - saves time
and the cost of an external calibration mass
- IP65/NEMA4 - protection against
dust and spills
- Stainless steel weighing pan
- Standard RS-232C bi-directional
communication
- GLP/GMP/ISO compliant to either AD-8121B printer or a computer.
Transmits date, time, ID number, serial number and calibration
data.
- Data memory function can accept any of the following data
matrices:
- 200 sets of weighing data
- 100 sets of weighing data with date and time
- 50 sets of GLP data with time, data, calibration
data, ID number and serial number
- 50 sets of unit average piece weight for use in the
piece-counting mode
- With Windows compatible data collection software
- Five Year Warranty
- Multiple Weighing Modes including
kg, g, lb, oz, ozt, ct, mm, GN and custom unit, plus animal
weighing, comparator function, counting function, percentage
weighing and density determination
- Time and Date Built-in and complies
with GLP and interval weighing in the data memory function
- Vacuum Fluorescent Display
Specifications
- Stabilization Time: 1.5 seconds
- Display Refresh: 5 times per second (stable) / 10 times
per second
- Pan Size:10.62 x 8.26 inches (270 x 210 mm)

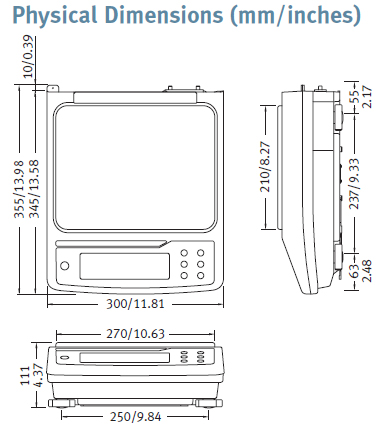

- Dimensions: 11.81 W x 13.98 D x 4.37 H inches (300 x 355
x 111 mm)
- Operating Temp: 5°C ~ 40 °C (14°F ~ 104°F)
Specs:
| Model |
GX-8K |
GX-10K |
GX-8K2 |
GX-12K |
GX-20K |
GX-30K |
GX-32K |
 |
 |
 |
 |
 |
 |
 |
| Price |
 |
|
|
|
|
|
|
| Capacity x Readability |
8.1kg x 0.01g |
10.1kg x 0.01g |
8.1kg x 0.1g
2.1kg x 0.01g
|
12kg x 0.1g |
21kg x 0.1g |
31kg x 0.1g |
31kg x 1g
6.1kg x 0.1g
|
| Minimum weighing value |
0.01g |
0.01g |
0.1g/0.01g |
0.1g |
1g/0.1g |
| Repeatability (Standard Deviation) |
0.01g |
0.01g |
0.05g/0.01g |
0.1g |
0.5g/0.1g |
| Decimal ounce (oz) |
285.7190x0.0005 |
370.4x0.0005 |
285.720x0.005
74.0755x0.0005 |
423.290x0.005 |
740.755x0.005 |
1093.495x0.005 |
1093.50x0.05
215.170x0.005 |
| Troy ounce (ozt) |
260.4210x0.0005 |
337.6x0.0005 |
260.420x0.005
67.5165x0.0005 |
385.810x0.005 |
675.165x0.005 |
996.675x0.005 |
996.65x0.05
196.120x0.005 |
| Pennyweight (dwt) |
5208.42x0.01 |
6751.5x0.01 |
5208.4x0.1
1350.33x0.01 |
7716.2x0.1 |
13503.3x0.1 |
19933.5x0.1 |
19933x1
3922.4x0.1 |
| Carat (ct) |
40500.00x0.05 |
50,500x0.05 |
40500.0x0.5
10500.00x0.05 |
60000.0x0.5 |
105000.0x0.5 |
155000.0x0.5 |
155000x5
30500.0x0.5 |
| Momme (mom) |
2160.000x0.005 |
2800.000x0.005 |
2160.00x0.05
560.000x0.005 |
3200.00x0.05 |
5600.00x0.05 |
8266.65x0.05 |
8266.5x0.5
1626.65x0.05 |
| Grain unit (GN) |
125002.2x0.2 |
162040x0.2 |
125002x2
32408.0x0.2 |
185188x2 |
324080x2 |
478404x2 |
- |
| Pound (lb) |
17.85745x0.00005 |
23.15x0.00005 |
17.8575x0.0005
4.62970x0.00005 |
26.4555x0.0005 |
46.2970x0.0005 |
68.3435x0.0005 |
68.345x0.00
13.4480x0.0005 |
| Pound/Ounce (lb/oz) |
17L 13.719x0.001 |
23L 2.4x0.001 |
17L 13.72x0.01
4L 10.075x0.001 |
26L 7.29x0.01 |
46L 4.75x0.010 |
68L 5.49x0.01 |
68L 5.5x0.1
13L 7.17x0.01 |
| Linearity |
±0.02g |
±0.1g/±0.02g |
±0.2g |
1g |
| Stabilization time (typical at FAST) |
Approximately 1.5 seconds |
Sensitivity drift
(10°C to 30°C, when auto. self cal. is not used) |
±2ppm/°C |
±3ppm/°C |
±5ppm/°C |
| Operating temperature & humidity |
5°C to 40°C, below 85%RH (no condensation) |
| Calibration |
Motor-driven Internal Calibration |
| Display fresh rate |
5 times/second or 10 times a second |
Counting Mode
Min. unit mass |
0.01g |
0.1g |
1g |
Percent Mode
Min. 100% ref. mass |
0.01g |
10g |
100g |
Percent Mode
Min. % display |
0.01%, 0.1%, 1% (depends on reference mass stored) |
| Standard Interface |
RS-232C (provided as standard, with WinCT, our proprietary data transmission software) |
| Water and dust proof specifications |
Compliant with IP65 |
| Calib. weights to be used for calib. ext. |
2kg, 3kg, 4kg, 5kg, 6kg, 7kg, 8kg |
5kg, 10kg |
10kg, 20kg |
20kg, 30kg |
| Weighing pan dimensions |
270(W) x 210(D) mm (10.62 x 8.26 inch) |
| Power supply (AC adapter) |
Confirm that the adapter type is correct for the local voltage and power receptacle |
| Net weight |
Approximately 9.3kg - 20.5lbs |
 |
