Lab Scales: AND Weighing GF-Series Lab Scales

Call Toll Free:
(800) 832-0055

AND Weighing GF-Series Lab Scales

	Quick Jump:

AND Weighing GF-Series Laboratory Scales

Models GF-200, GF-300, GF-400, GF-600

Models GF-1200, GF-2000, GF-3000, GF-4000, GF-6100, GF-6000, GF-8000

View Specifications Chart

The GF Series of lab scales incorporates our unique SHS technology and defies comparison with all others. Our revolutionary and patented Super Hybrid Sensor (SHS) technology improves response speed and minimizes maintenance costs. Its unique design provides the fastest response speed in its class--an amazing one-second. SHS combines the best of magnetic force restoration and single point parallelogram load sensing technologies.

Some Models Legal for Trade (as noted below)
Fast, new Super Hybrid Sensor (SHS) gives you the ultimate in response speed - Just ONE Second!
Resolution Range among models: 1/60,000 to 1/600,000
IP54 splashproof operator keyboard protects against dust and spills
Stainless steel weighing pan.
Standard RS232 bi-directional communication
Large, bright Vacuum Fluorescent Display - see the display even in the dark
Interval time setting for automatic weighings at intervals from 1 second to 10 minutes
Weighs in grams, decimal ounces, pennyweight, milligrams, troy ounces, carats, grains, mommes, taels and tolas
Percentage, Counting Functions & Comparator functions plus Density Determination, Animal Weighing and Percentage weighing functions
ACAI Counting Function for highly accurate counting
Bright, blue Vacuum Fluorescent Display
GLP/GMP/ISO Compliance to either an AD-8121 printer or to a computer.
Windows compatible data collection software
USB compatible
Auto re-zero function after each weighing
5 year warranty

Specifications

Stabilization Time: 1 second
Dimensions: 8.27 W x 12.5 D x 3.4 H in (210 W x 317 D x 86 H mm)
Operating Temp: 5°C ~ 40 °C (14°F ~ 104°F)
Power: approximately 11VA
Standard Accessories: Manual, AC Adapter, Dust Cover

AND EWi-Series Industrial Scales - Specs:

AND Weighing GF-Series Lab Scales
currently in stock
Shipping Weight: 11 lbs. (estimate shipping cost)
Other AND scales
Other Laboratory scales

FREE UPS Ground Shipping
(within the 48 continental US States)

	AD-1682 Rechargeable Battery Pack, Add
	AD-8920A Universal Remote Display, Add
	GX-02 USB Option (Uni-directional) w/ cable for GF-Series , Add
	AD-100-2 Anti-theft Device for Everest, Add
	GX-04 Comparator Output with a Buzzer for GF-Series , Add
	GX-06 Analog Output/Current Loop Output for GF-Series (Factory Installed Only), Add
	GX-12 Animal weighing pan (not applicable for GX/GF-200) , Add
	GX-13 Density determination kit (for the pan size of 128 mm × 128 mm only) , Add
	AD-8526-25:Serial / Ethernet Converter , Add

Model	GF-200	GF-300	GF-400	GF-600	GF-800	GF-1000	GF-1200	GF-2000	GF-3000	GF-4000	GF-6100	GF-6000	GF-8000
Model
Price					-
Capacity	210g	310g	410g	610g	810g	1100g	1210g	2100g	3100g	4100g	6100g	6100g	8100g
Repeatability	0.001g						0.01g					0.1g
Legal for Trade	GF-200N	GF-300N	-	-	-	-	GF-1200N	GF-2000N	GF-3000N	-	-	GF-6000N	-
Legal for Trade			-	-	-	-				-	-		-
Units of measure	Gram, Decimal ounce, Troy ounce, Pennyweight, Carat, Momme, Grain unit, Pound, Pound/Ounce
Linearity	±0.002g			±0.003g			±0.02g				±0.03g	±0.1g
Stabilization time	Approx. 1 second						Approx. 1 second				Approx. 1.5 second	Approx. 1 second
Sensitivity drift	±2ppm/oC (When automatic self calibration is not used)											±5ppm/°C (auto-self califbration OFF)
Operating temperature	5°C to 40°C (41°F to 104°F), 85%RH or less (No condensation)
Sensing method	Super Hybrid Sensor (SHS) *SHS:
Display type	Vacuum Fluorescent Display (VFD)
Display refresh rate	5 times/second or 10 times/second
Counting mode Minimum unit mass	0.001g						0.01g					0.1g
Counting mode Number of samples	10, 25, 50 or 100 pieces
Percent mode Minimum 100% reference mass	0.100g						1.00g					10.0g
Percent mode Minimum 100% display	0.01%, 0.1%, 1% (Depends on reference mass stored)
Standard serial I/F	RS-232C Interface with Windows Communication Tools (WinCT: included as CD-ROM)
Weighing pan	128 x 128mm (5.04 x 5.04inch					165 x 165mm (6.50 x 6.50inch)
External dimensions	210(W) x 317(D) x 86(H)mm (8.27 x 12.48 x 3.39inch)
AC adapter	Confirm that the adapter type is correct for the local voltage and power receptacle
Power consumption	Approx. 11VA (supplied by AC adapter)
Net weight	Approx. 3.8kg						Approx. 4.3kg

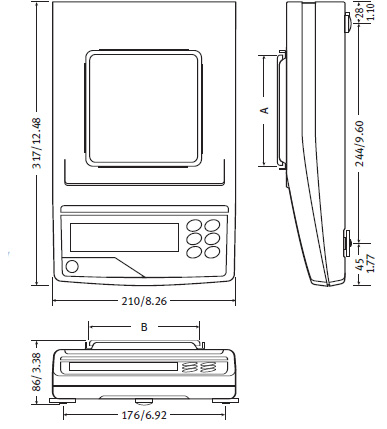

Pan Size (mm/inches)

Model	A	B
GF-200/300/400/600/800/1000	128/5.03	128/5.03
GF-1200/2000/3000/4000/6100/6000/8000	165/6.49	165/6.49
