UWE PSC-Series Intelligent-Count Heavy-Duty Counting Scales	Authorized Dealer

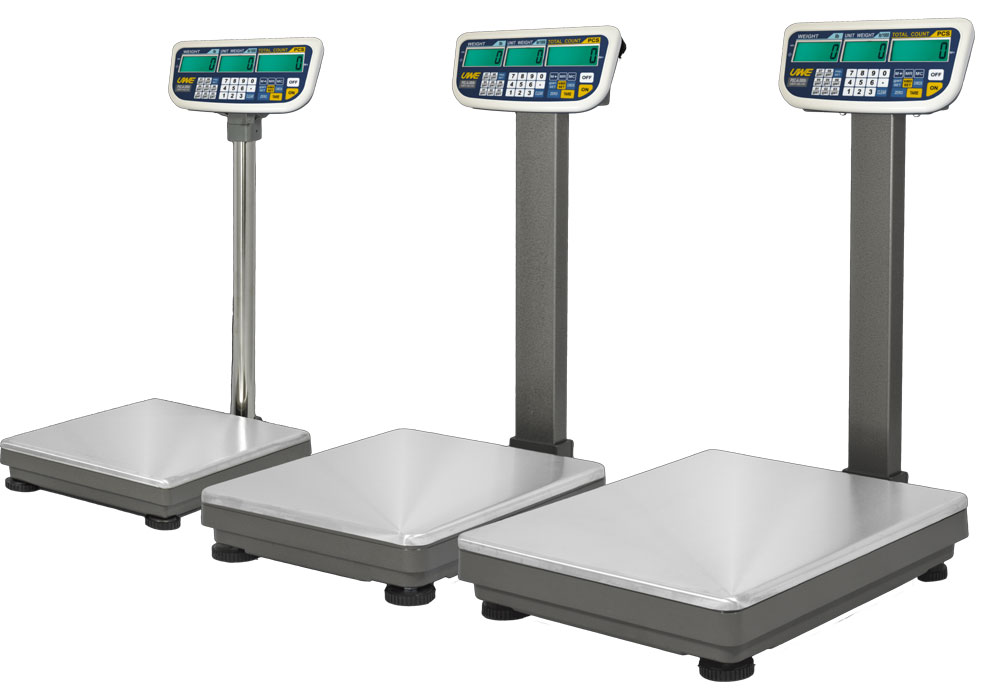

The PSC-A is the newest version of the popular PSC Series of bench style counting scales from Intelligent Weighing Technology. The PSC-A scales come in a variety of platform sizes and capacities. These are high capacity, heavy-duty counting scales. Each of these scales has 15,000 displayed divisions, with 200,000 internal divisions for accurate counting.

Industrial Scale

Specifications Chart

The PSC-A is the newest version of the popular PSC Series of bench style counting scales from Intelligent Weighing Technology. The PSC-A scales come in a variety of platform sizes and capacities. These are high capacity, heavy-duty counting scales. Each of these scales has 15,000 displayed divisions, with 200,000 internal divisions for accurate counting.

Dedicated Counting Program
Cast Aluminium Body
15,000 Displayed Divisions
Full Numeric Keyboard
RS232 Interface

Model	PSC-AB-75	PSC-AB-150	PSC-AB-300	PSC-AF-150	PSC-AF-300	PSC-AF-750	PSC-AL-300
Price	$612.30	$612.30	$612.30	$651.42	$651.42	$651.42	$727.65
Capacity x Readability	75 x 0.005 lb	150 x 0.01 lb	300 x 0.02 lb	150 x 0.01 lb	300 x 0.02 lb	750 x 0.05 lb	300 x 0.02 lb
Platform Size (W x D x H)	13 x 17.7 x 3.5 in 330 x 450 x 89 mm			16.5 x 20.5 x 4.5 in 420 x 520 x 120 mm			19.7 x 23.6 x 4.5 in 500 x 600 x 120 mm
Displayed Divisions	15,000
Internal Divisions	200,000
Functions	counting, accumulation
Weighing Units	lb
Stabilization Time (seconds)	< 1.5
Tare Range	To capacity by subtraction
Power Source	Built-in rechargeable battery or external power adapter (included)
Construction	Stainless steel platform cover, cast aluminum platform
Display	0.86 in / 22 mm wide angle viewing LCD
Operating Environment	32ºF to 104ºF
Dimensions (W x D x H)	13 x 20.7 x 28.3 in 330 x 450 x 720 mm			13 x 20.7 x 28.3 in 330 x 450 x 720 mm			19.7 x 25.5 x 33.9 in 500 x 647 x 860 mm
Net Weight	25.8 lb / 11.7 kg			42.2 lb / 19.2 kg			56 lb / 25.4 kg
Shipping Weight	29 lb / 13.2 kg			46 lb / 20.8 kg			63 lb / 28.4 kg
Options	load cell extension cable, Printer			3 in wheel kit (on AF and AL Models only), load cell extension cable, Printer

Features	Benefits
Overload and shock protection mechanism	Protects against excessive loads and shock applied to platform
Heavy duty rugged construction	Will withstand harsh industrial operation
Low profile	Space saving, easy to load and unload
Adjustable through 90° wide-angle backlit LCD display	Can be seen from a wide viewing range and in poor lighting conditions
Built-in rechargeable battery or external power adapter	Portability. Battery lasts 200 hr
Accumulation function	Allows you to add together consecutive weights to arrive at a total
Zero tracking	Ensures that you always start weighing at zero
Automatic power save	Conserves battery power
Low battery indicator / charge status indicator	Alerts you to charge the battery, saving downtime
Easy calibration function	Ensures accuracy
Adjustable feet and spirit level	Scale remains level for accurate results on uneven working surfaces - Anti-slip
In use cover (for indicator)	Protects indicator from damage and dirt

The PSC is equipped with the following state of the art counting features

Auto piece weight enhancement	Allows for fi ner counting
Accumulation memory for weight and total count	Gives ability to add together weighings by count or weight
Full numeric keypad	User friendly operation and fast data entry
Over weighing and counting alarm	Ensures fast throughput with fewer mistakes
8 x one touch piece weight PLU	Frequently used component sample weights can be stored in memory for easy retrieval
