Shimpo PT Digital Force Gauges with Physical Therapy Kits SHIMPO Equipment
Authorized Dealer
For muscle strength and ergonomic force testing,the SHIMPO digital PT kits have just the right ingredients for the professional Physical Therapist, or Ergonomist. Lightweight, rugged and attractive, these kits are great for Isokinetic testing and job task analysis. The PT kits with digital force gauges are ergonomically crafted and are easy to operate. In addition, the FGV-PT series kits are equipped with free software for Force data collection.
Call New

Specifications Chart

Shimpo MF-PT Mechanical Force Gauges with Physical Therapy Kits

Price: $760.00

View Spec Cart

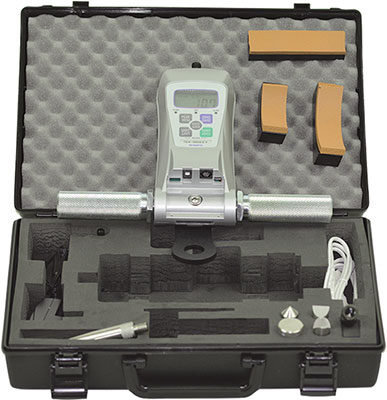

Physical Therapy Kits with Digital Force Gauge global/images/product_2/alt/alt_12687.jpg

For muscle strength and ergonomic force testing,the SHIMPO digital PT kits have just the right ingredients for the professional Physical Therapist, or Ergonomist. Lightweight, rugged and attractive, these kits are great for Isokinetic testing and job task analysis. The PT kits with digital force gauges are ergonomically crafted and are easy to operate. In addition, the FGV-PT series kits are equipped with free software for Force data collection.

global/images/product_2/alt/alt_12687.jpg

All kits are capable of displaying peak compression, tension or real time forces. These handsome padded kits are furnished with padded ERGO accessories, handle adapters and N.I.S.T. traceable certicates of calibration. The digital PT Kits are ideal for A.D.A Compliance, workplace design and ergonomic studies.

  • Ranges from 100 to 500 lbs (50 to 250 kg)
  • Large easy to read LCD display with units selection
  • Peak hold tension and compression or real time force mode
  • 180° Reversible display aids user operation in various test configurations
  • Compact, ergonomic design is perfect for handheld use
  • Outstanding ±0.2% F.S. accuracy allows usage in strictest applications
  • Rugged, die cast aluminum housing provides proper protection
  • Operate with the rechargeable batteries or AC Power Adapter
  • CE Mark & RoHS Approval
Model FGE-PT100 FGE-PT200 FGE-PT500 FGV-PT100 FGV-PT200 FGV-PT500
Shimpo FGE-PT100 Physical
$945.00
buy now
Shimpo FGE-PT200 Physical
$1,093.50
buy now
Shimpo FGE-PT500 Physical
$1,134.00
buy now
Shimpo FGV-PT100 Physical
$1,075.50
buy now
Shimpo FGV-PT200 Physical
$1,120.50
buy now
Shimpo FGV-PT500 Physical
$1,345.50
buy now
Capacity X Readability 100 x 0.1 lb 200 x 0.1 lb 500 x 0.1 lb 100 x 0.1 lb 200 x 0.1 lb 500 x 0.1 lb
50 x 0.01 Kg 100 x 0.1 Kg 250 x 0.1 Kg 50 x 0.01 Kg 100 x 0.1 Kg 250 x 0.1 Kg
500 x 0.1 N 1000 x 1 N 2500 x 1 N 500 x 0.1 N 1000 x 1 N 2500 x 1 N
Included Gauge FGE-100XY FGE-200XY FGE-500HXY FGV-100XY FGV-200XY FGV-500HXY
Accuracy +/- 0.2% F.S. @ 73°F (23°C)
Selectable Units kg, N and lb.
Overload Capacity 150% of F.S.; 200% of F.S. for 100 lb
Data Sampling Rate 1000/sec
Display Reversible 4-Digit LCD, 0.47? high (12 mm) with various indicators including tension and low battery indication
Power Rechargeable Ni-battery or universal AC adapter/charger (100 – 240 VAC 50/60 Hz)
Auto Power Shut-Off Yes (not active if adapter/charge is in use)
Output - Analog: ±1 VDC (through a 12 bit D/A converter)
- RS232C: Baud rate (19200, 9600, 4800, 2400 bps selectable), commands control
- USB: Allows communication between FGV-XY and Windows® PC Software with TORIEMON-USB via USB cable (included)
- Overload Comparator: Open-collector output (Max DC30V/5mA)
Temperature Limits 32 - 104°F (0 - 40°C)
Certification CE, RoHS
Warranty 2 year
Included Accessories Force gauge, carrying case and attachments (hook, chisel, flat head, notched head, hanger, cone head, extension rod, metric to inch adapter), padded ERGO accessories, handle, AC adapter/charger, N.I.S.T. traceable certificate of calibration and FGV-RS232 cable (w/FGV series only)
