The Cubis® was developed for users, who expect the best possible performance from a lab balance across the board but only want to invest in what is necessary. For this reason, Sartorius has gone far beyond simply further developing what already exists. The new Cubis® represents a groundbreaking new concept.
The New Generation of Modular Premium Laboratory Balances
For scientists in R&D and analytical laboratories needing the most reliable lab weighing results, the Cubis® II from Sartorius is a completely configurable, high performance portfolio of balance hardware and software that will align with your unique demands and compliance requirements to maximize operational efficiency and experimental outcomes.
All modules of the Cubis® II balance were designed for an intuitive operation, further aided by intelligent diagnostic systems. These design elements guarantee a higher degree of repeatability for different workflows while lowering the probability of human error during measurement.
Trusted Results The Cubis® II balance offers several advantages over other lab balances:
Leading Performance: the Cubis® II balance offers best-in-class performance, including high-capacity and high readability, regardless of sample type
Error-free Operations: Ensure a high level of trust and transparency by using Cubis® II’s functionality to assess relevant factors during data acquisition.
Full End-to-End Data Integrity: Ensure your data is reliable and cannot be manipulated with Cubis® II’s user management function and LIMS connectivity.
Reliable Support: Our lab weighing team provides expert support to help ensure your success, even when making very specific and/or unique requests.
The modular weighing system Cubis® II can be individually configured from different components. The combinability of the display unit, weighing module, draft shield, software packages for various applications and functions and a comprehensive range of accessories allows the individual adaptation of the Cubis® II balance to all weighing tasks. The Cubis® II range of premium laboratory balances with a maximum load between 2.1 g and 70 kg and a readability between 0.1 ìg to 1 g provide the ideal model for every application.
Cubis® II Display and Control Units
Advances User Interface MCA
Large 7“ color touch display including touch, scroll, swipe functionality with factory installed essential weighing applications and diverse QApp Packages for optional software extension.
Features:
High-performance touch screen with high resolution and brilliant colors
Modern user guidance with outstanding ease of use, even in complex lab situations
Essential User Interface MCE
Large, high-contrast touch display with factory-installed essential weighing applications for easy operation of highest weighing performance.
Features:
For users who do not have complex applications but need to weigh with the highest level of accuracy
High-contrast touch display with clearly structured functionality
Easy-to-use essential weighing applications included

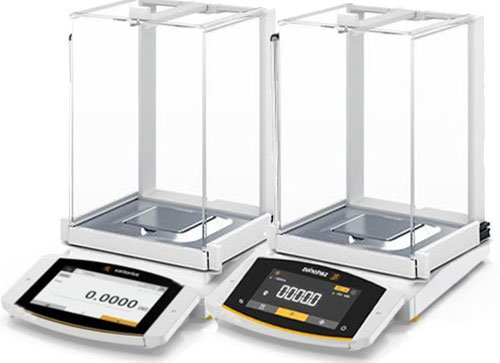

Sartorius Cubis II Semi-Micro Balance 0.1 mg Specs:
Model
MCA124SI-S00
MCA124SU-S00
MCE124SU-S00
MCA124S-2S00-U
MCE124S-2S00-U
MCA124S-2S00-A
MCE124S-2S00-A
MCA124S-2S00-I
MCE124S-2S00-I
Price
$13,200.50
$9,443.50
$6,332.50
$7,140.00
$6,332.50
$9,656.00
$8,848.50
$10,897.00
$10,089.50
Capacity x Readability
120 g x 0.1 mg
120 g x 0.1 mg
120 g x 0.1 mg
120 g x 0.1 mg
120 g x 0.1 mg
120 g x 0.1 mg
120 g x 0.1 mg
120 g x 0.1 mg
120 g x 0.1 mg
Draft Shield Type
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
QApp Packages
All Inclusive Package QP99 - The software application package All inclusive includes 4 different sub-packages for compliance (Pharma (QP1)), complex weighing applications (Advanced (QP2)), weighing applications and helpful tools (Utilities (QP3)) and connectors for data exchange (Connectivity (QP4)).
MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting
MCE Factory installed basic set of essential weighing applications
Display
MCA Advanced User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
Repeatability at 5 % load Standard deviation of the load values, tolerance
0.1 mg
Repeatability at 5 % load Standard deviation of the load values, typical value
0.05 mg
Repeatability near Max Standard deviation of the load values, tolerance
0.1 mg
Repeatability near Max Standard deviation of the load values, typical value
0.05 mg
Linearity Deviation
Tolerance 0.2 mg Typical value 0.13 mg
Interfaces
USB A, B, C, RS232, and Ethernet
Deviation at eccentric loading, positions according to OIML R76
Test weight
50 g
Tolerance
0.2 mg
Typical value
0.12 mg
Sensitivity drift between +10 °C and +30 °C
1 ppm/K
Tare maximum capacity: Less than 100 % of maximum capacity
Accuracy class according to Directive 2014/31/EU
I
Verification scale interval (e) according to Directive 2014/31/EU
1 mg
Minimum load (Min) according to Directive 2014/31/EU
10 mg
Minimum weight according to USP (United States Pharmacopeia), Chap. 41
Optimum minimum weight
82 mg
Typical minimum weight
100 mg
Typical stabilization time
1 s
Typical measurement time
3 s
Recommended calibration weight
100 g E2
Recommended calibration weight
100 g E2
100 g E2
100 g E2
100 g E2
100 g E2
100 g E2
100 g E2
100 g E2
100 g E2
Dimensions
MCE/MCA Weighing module (L × W × H)*
404 x 240 x 373 mm
Electronics module (L × W × H)
MCA 355 x 260 x 61 mm MCE 315 x 240 x 61 mm
Weighing pan size
85 x 85 mm
Weight, approx.*
10.2 kg /11.7 kg
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany
Model
MCA224SI-S00
MCA224SU-S00
MCE224SU-S00
MCA224S-2S00-U
MCE224S-2S00-U
MCA224S-2S00-A
MCE224S-2S00-A
MCA224S-2S00-I
MCE224S-2S00-I
Price
$14,297.00
$10,540.00
$7,429.00
$8,236.50
$7,429.00
$10,752.50
$9,945.00
$11,993.50
$11,186.00
Capacity x Readability
220 g x 0.1 mg
220 g x 0.1 mg
220 g x 0.1 mg
220 g x 0.1 mg
220 g x 0.1 mg
220 g x 0.1 mg
220 g x 0.1 mg
220 g x 0.1 mg
220 g x 0.1 mg
Draft Shield Type
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
QApp Packages
All Inclusive Package QP99 - The software application package All inclusive includes 4 different sub-packages for compliance (Pharma (QP1)), complex weighing applications (Advanced (QP2)), weighing applications and helpful tools (Utilities (QP3)) and connectors for data exchange (Connectivity (QP4)).
MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting
MCE Factory installed basic set of essential weighing applications
Display
MCA Advanced User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
Repeatability at 5 % load Standard deviation of the load values, tolerance
0.07 mg
Repeatability at 5 % load Standard deviation of the load values, typical value
0.05 mg
Repeatability near Max Standard deviation of the load values, tolerance
0.07 mg
Repeatability near Max Standard deviation of the load values, typical value
0.05 mg
Linearity Deviation
Tolerance 0.2 mg Typical value 0.13 mg
Interfaces
USB A, B, C, RS232, and Ethernet
Deviation at eccentric loading, positions according to OIML R76
Test weight
100 g
Tolerance
0.2 mg
Typical value
0.12 mg
Sensitivity drift between +10 °C and +30 °C
1 ppm/K
Tare maximum capacity: Less than 100 % of maximum capacity
Accuracy class according to Directive 2014/31/EU
I
Verification scale interval (e) according to Directive 2014/31/EU
1 mg
Minimum load (Min) according to Directive 2014/31/EU
10 mg
Minimum weight according to USP (United States Pharmacopeia), Chap. 41
Optimum minimum weight
82 mg
Typical minimum weight
100 mg
Typical stabilization time
1 s
Typical measurement time
3 s
Recommended calibration weight
200 g E2
Recommended calibration weight
200 g E2
200 g E2
200 g E2
200 g E2
200 g E2
200 g E2
200 g E2
200 g E2
200 g E2
Dimensions
MCE/MCA Weighing module (L × W × H)*
404 x 240 x 373 mm
Electronics module (L × W × H)
MCA 355 x 260 x 61 mm MCE 315 x 240 x 61 mm
Weighing pan size
85 x 85 mm
Weight, approx.*
10.2 kg /11.7 kg
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany
Model
MCA324SI-S00
MCA324SU-S00

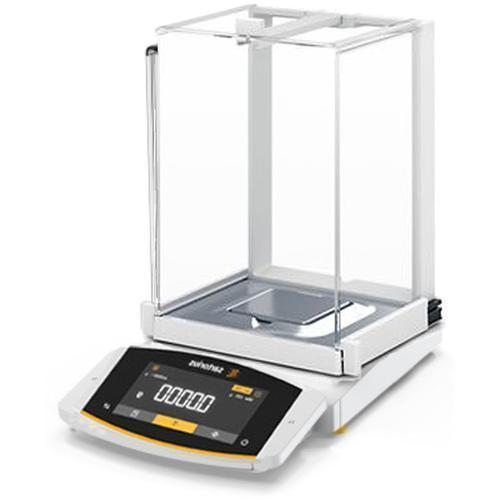

MCE324S-2S00-U
MCA324S-2S00-U
MCE324S-2S00-U
MCA324S-2S00-A
MCE324S-2S00-A
MCA324S-2S00-I

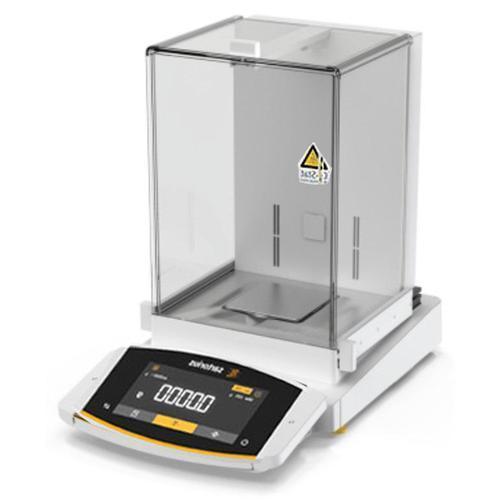

MCE324S-2S00-I
Price
$15,453.00
$11,696.00
$8,585.00
$9,392.50
$8,585.00
$11,908.50
$11,101.00
$13,149.50
$12,342.00
Model
-
-
MCE324SU-S00
-
-
-
-
-
-
Price
-
-
$8,585.00
-
-
-
-
-
-
Capacity x Readability
320 g x 0.1 mg
320 g x 0.1 mg
320 g x 0.1 mg
320 g x 0.1 mg
320 g x 0.1 mg
320 g x 0.1 mg
320 g x 0.1 mg
320 g x 0.1 mg
320 g x 0.1 mg
Draft Shield Type
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
QApp Packages
All Inclusive Package QP99 - The software application package All inclusive includes 4 different sub-packages for compliance (Pharma (QP1)), complex weighing applications (Advanced (QP2)), weighing applications and helpful tools (Utilities (QP3)) and connectors for data exchange (Connectivity (QP4)).
MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting
MCE Factory installed basic set of essential weighing applications
Display
MCA Advanced User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
Repeatability at 5 % load Standard deviation of the load values, tolerance
0.08 mg
Repeatability at 5 % load Standard deviation of the load values, typical value
0.04 mg
Repeatability near Max Standard deviation of the load values, tolerance
0.1 mg
Repeatability near Max Standard deviation of the load values, typical value
0.05 mg
Linearity Deviation
Tolerance 0.3 mg Typical value 0.2 mg
Interfaces
USB A, B, C, RS232, and Ethernet
Deviation at eccentric loading, positions according to OIML R76
Test weight
200 g
Tolerance
0.3 mg
Typical value
0.2 mg
Sensitivity drift between +10 °C and +30 °C
1 ppm/K
Tare maximum capacity: Less than 100 % of maximum capacity
Accuracy class according to Directive 2014/31/EU
I
Verification scale interval (e) according to Directive 2014/31/EU
1 mg
Minimum load (Min) according to Directive 2014/31/EU
10 mg
Minimum weight according to USP (United States Pharmacopeia), Chap. 41
Optimum minimum weight
82 mg
Typical minimum weight
82 mg
Typical stabilization time
1 s
Typical measurement time
3 s
Recommended calibration weight
300 g E2
Recommended calibration weight
300 g E2
300 g E2
300 g E2
300 g E2
300 g E2
300 g E2
300 g E2
300 g E2
300 g E2
Dimensions
MCE/MCA Weighing module (L × W × H)*
404 x 240 x 373 mm
Electronics module (L × W × H)
MCA 355 x 260 x 61 mm MCE 315 x 240 x 61 mm
Weighing pan size
85 x 85 mm
Weight, approx.*
10.2 kg /11.7 kg
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany
Model
MCA324P-2S00-U
MCE324P-2S00-U
MCA324P-2S00-A
MCE324P-2S00-A
MCA324P-2S00-I
MCE324P-2S00-I
Price
$8,440.50
$7,633.00
$10,956.50
$10,149.00
$12,197.50
$11,390.00
Draft Shield Type
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
QApp Packages
MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting
MCE Factory installed basic set of essential weighing applications
Capacity x Readability
80 g x 0.1 mg 160 g x 0.2 mg 320 g x 0.5 mg
80 g x 0.1 mg 160 g x 0.2 mg 320 g x 0.5 mg
80 g x 0.1 mg 160 g x 0.2 mg 320 g x 0.5 mg
80 g x 0.1 mg 160 g x 0.2 mg 320 g x 0.5 mg
80 g x 0.1 mg 160 g x 0.2 mg 320 g x 0.5 mg
80 g x 0.1 mg 160 g x 0.2 mg 320 g x 0.5 mg
Display
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
Repeatability at 5 % load Standard deviation of the load values, tolerance
0.08 mg
Repeatability at 5 % load Standard deviation of the load values, typical value
0.04 mg
Repeatability near Max Standard deviation of the load values, tolerance
0.1 mg
Repeatability near Max Standard deviation of the load values, typical value
0.05 mg
Linearity Deviation
Tolerance 0.5 mg Typical value 0.2 mg
Interfaces
USB A, B, C, RS232, and Ethernet
Deviation at eccentric loading, positions according to OIML R76
Test weight
200 g
Tolerance
0.4 mg
Typical value
0.2 mg
Sensitivity drift between +10 °C and +30 °C
1 ppm/K
Tare maximum capacity: Less than 100 % of maximum capacity
Accuracy class according to Directive 2014/31/EU
I
Verification scale interval (e) according to Directive 2014/31/EU
1 mg
Minimum load (Min) according to Directive 2014/31/EU
1 mg
Minimum weight according to USP (United States Pharmacopeia), Chap. 41
Optimum minimum weight
82 mg
Typical minimum weight
82 mg
Typical stabilization time
1 s
Typical measurement time
3 s
Recommended calibration weight
300 g E2
Recommended calibration weight
300 g E2
300 g E2
300 g E2
300 g E2
300 g E2
300 g E2
Dimensions
MCE/MCA Weighing module (L × W × H)*
404 x 240 x 373 mm
Electronics module (L × W × H)
MCA 355 x 260 x 61 mm MCE 315 x 240 x 61 mm
Weighing pan size
85 x 85 mm
Weight, approx.*
10.2 kg /11.7 kg
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany
Model
MCA524SI-S00
MCA524SU-S00
MCA524S-2S00-U
MCE524S-2S00-U
MCA524S-2S00-A
MCE524S-2S00-A
MCA524S-2S00-I
MCE524S-2S00-I
Price
$16,813.00
$13,056.00
$10,752.50
$9,945.00
$13,268.50
$12,095.50
$14,509.50
$13,702.00
Capacity x Readability
520 g x 0.1 mg
520 g x 0.1 mg
520 g x 0.1 mg
520 g x 0.1 mg
520 g x 0.1 mg
520 g x 0.1 mg
520 g x 0.1 mg
520 g x 0.1 mg
Draft Shield Type
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
QApp Packages
All Inclusive Package QP99 - The software application package All inclusive includes 4 different sub-packages for compliance (Pharma (QP1)), complex weighing applications (Advanced (QP2)), weighing applications and helpful tools (Utilities (QP3)) and connectors for data exchange (Connectivity (QP4)).
MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting
MCE Factory installed basic set of essential weighing applications
Display
MCA Advanced User Interface
MCA Advanced User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
Repeatability at 5 % load Standard deviation of the load values, tolerance
0.08 mg
Repeatability at 5 % load Standard deviation of the load values, typical value
0.04 mg
Repeatability near Max Standard deviation of the load values, tolerance
0.1 mg
Repeatability near Max Standard deviation of the load values, typical value
0.05 mg
Linearity Deviation
Tolerance 0.4 mg Typical value 0.2 mg
Interfaces
USB A, B, C, RS232, and Ethernet
Deviation at eccentric loading, positions according to OIML R76
Test weight
200 g
Tolerance
0.3 mg
Typical value
0.2 mg
Sensitivity drift between +10 °C and +30 °C
1 ppm/K
Tare maximum capacity: Less than 100 % of maximum capacity
Accuracy class according to Directive 2014/31/EU
I
Verification scale interval (e) according to Directive 2014/31/EU
1 mg
Minimum load (Min) according to Directive 2014/31/EU
10 mg
Minimum weight according to USP (United States Pharmacopeia), Chap. 41
Optimum minimum weight
82 mg
Typical minimum weight
82 mg
Typical stabilization time
1 s
Typical measurement time
3 s
Recommended calibration weight
500 g E2
Recommended calibration weight
500 g E2
500 g E2
500 g E2
500 g E2
500 g E2
500 g E2
500 g E2
500 g E2
Dimensions
MCE/MCA Weighing module (L × W × H)*
404 x 240 x 373 mm
Electronics module (L × W × H)
MCA 355 x 260 x 61 mm MCE 315 x 240 x 61 mm
Weighing pan size
85 x 85 mm
Weight, approx.*
10.2 kg /11.7 kg
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany
Model
MCA524P-2S00-U
MCE524P-2S00-U
MCA524P-2S00-A
MCE524P-2S00-A
MCA524P-2S00-I
MCE524P-2S00-I
Price
$8,687.00
$7,879.50
$11,203.00
$10,395.50
$12,444.00
$11,636.50
Draft Shield Type
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield U Manual analytical balance draft shield for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield A Automatic analytical balance draft shield with learning function for all models with 0.01 mg, 0.1 mg or 1 mg
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
Draft Shield I Automatic draft shield with integrated ionizer and with learning capability for semi-micro and analytical balances
QApp Packages
MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting
MCE Factory installed basic set of essential weighing applications
Capacity x Readability
120 g x 0.1 mg 240 g x 0.2 mg 520 g x 0.5 mg
120 g x 0.1 mg 240 g x 0.2 mg 520 g x 0.5 mg
120 g x 0.1 mg 240 g x 0.2 mg 520 g x 0.5 mg
120 g x 0.1 mg 240 g x 0.2 mg 520 g x 0.5 mg
120 g x 0.1 mg 240 g x 0.2 mg 520 g x 0.5 mg
120 g x 0.1 mg 240 g x 0.2 mg 520 g x 0.5 mg
Display
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
MCA Advanced User Interface
MCE Essential User Interface
Repeatability at 5 % load Standard deviation of the load values, tolerance
0.08 mg
Repeatability at 5 % load Standard deviation of the load values, typical value
0.04 mg
Repeatability near Max Standard deviation of the load values, tolerance
0.15 mg
Repeatability near Max Standard deviation of the load values, typical value
0.05 mg
Linearity Deviation
Tolerance 0.5 mg Typical value 0.2 mg
Interfaces
USB A, B, C, RS232, and Ethernet
Deviation at eccentric loading, positions according to OIML R76
Test weight
200 g
Tolerance
0.4 mg
Typical value
0.2 mg
Sensitivity drift between +10 °C and +30 °C
1 ppm/K
Tare maximum capacity: Less than 100 % of maximum capacity
Accuracy class according to Directive 2014/31/EU
I
Verification scale interval (e) according to Directive 2014/31/EU
1 mg
Minimum load (Min) according to Directive 2014/31/EU
1 mg
Minimum weight according to USP (United States Pharmacopeia), Chap. 41
Optimum minimum weight
82 mg
Typical minimum weight
82 mg
Typical stabilization time
1 s
Typical measurement time
3 s
Recommended calibration weight
500 g E2
Recommended calibration weight
500 g E2
500 g E2
500 g E2
500 g E2
500 g E2
500 g E2
Dimensions
MCE/MCA Weighing module (L × W × H)*
404 x 240 x 373 mm
Electronics module (L × W × H)
MCA 355 x 260 x 61 mm MCE 315 x 240 x 61 mm
Weighing pan size
85 x 85 mm
Weight, approx.*
10.2 kg /11.7 kg
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany
