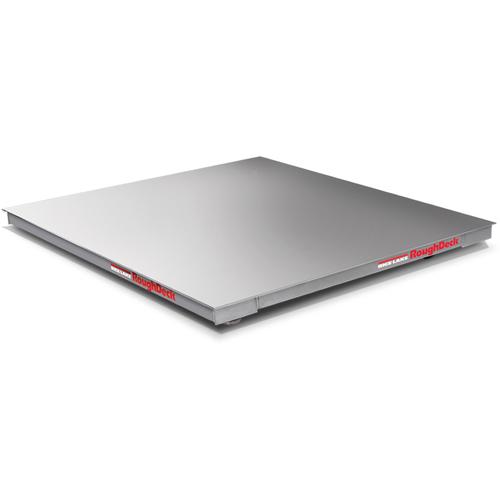

Rice Lake Roughdeck HE Hostile Environment Floor Scales
The Toughest, Most Accurate Floor Scale Available. The RoughDeck HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications. Design features include a six-inch, 304 stainless steel channel frame and smooth top plate.
Rice Lake Roughdeck HE Hostile Environment HE-25X25-2K Floor Scale 2 x 2 ft - Base Only - 2000 l
Base Only Indicator Sold Separately
Legal For Trade
Selected Models

Specifications Chart

Please Call (800)832-0055
or Email Us for help
Ordering this Scale
 Factory Installed Options Must be added with scale
Rice Lake Floor anchor plates, Stainless Steel (set of 2) , Add $42.50
Rice Lake Roughdeck HP 4 drilled deck holes for scale height adjustment , Add $40.00
Rice Lake Roughdeck SS Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel FM approved load cells and hardware , Add $500.00
Indicator Column\Stand
Rice Lake 28740 Indicator Floor Stand Stainless Steel 36.3 inch
Rice Lake 28740 Indicator Floor Stand Stainless Steel 36.3 inch, add $268.60
Single Side Bumper Guard
Rice Lake RoughDeck SS/HE Bumper Guard Option A 2.5 ft
Rice Lake RoughDeck SS/HE Bumper Guard Option A 2.5 ft, add $196.00
Rice Lake RoughDeck SS/HE Bumper Guard Option A 3.0 ft
Rice Lake RoughDeck SS/HE Bumper Guard Option A 3.0 ft, add $232.00
Rice Lake RoughDeck SS/HE Bumper Guard Option A 4.0 ft
Rice Lake RoughDeck SS/HE Bumper Guard Option A 4.0 ft, add $304.15
Rice Lake RoughDeck SS/HE Bumper Guard Option A 5.0 ft
Rice Lake RoughDeck SS/HE Bumper Guard Option A 5.0 ft, add $379.20
Rice Lake RoughDeck SS/HE Bumper Guard Option A 6.0 ft
Rice Lake RoughDeck SS/HE Bumper Guard Option A 6.0 ft, add $454.25
Rice Lake RoughDeck SS/HE Bumper Guard Option A 7.0 ft
Rice Lake RoughDeck SS/HE Bumper Guard Option A 7.0 ft, add $529.30
Rice Lake Roughdeck HE
Hostile Environment Floor Scales

Price From: $2687.30



Select Indicator (Must be added with scale)
Rice Lake SURVIVOR 420HE Hostile Environment Digital Weight Indicator , Add $1471.50
Rice Lake 882IS-Plus Intrinsically-Safe 194236 Digital Weight Indicator A/C Power Supply , Add $2094.30
Rice Lake 882IS Intrinsically-Safe 194235 Digital Weight Indicator A/C Power Supply , Add $2094.30

For a full list of Rice Lake Indicators Click Here

Ramps
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 2.5 ft x 3 ft x 3.5 in
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 2.5 ft x 3 ft x 3.5 in, add $939.90
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 3 ft x 3 ft x 3.5 in
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 3 ft x 3 ft x 3.5 in, add $939.90
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 4 ft x 3 ft x 3.5 in
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 4 ft x 3 ft x 3.5 in, add $1,146.60
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 2.5 ft x 4 ft x 3.5 in
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 2.5 ft x 4 ft x 3.5 in, add $1,045.20
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 3 ft x 4 ft x 3.5 in
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 3 ft x 4 ft x 3.5 in, add $1,146.60
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 4 ft x 4 ft x 3.5 in
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 4 ft x 4 ft x 3.5 in, add $1,560.00
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 5 ft x 4 ft x 3.5 in
Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 5 ft x 4 ft x 3.5 in, add $1,762.80
Pit Frame
Rice Lake 18758 RoughDeck SS and HE 2.5 ft x 2.5 ft Pit Frame (1,000lb - 10,000lb) SST
Rice Lake 18758 RoughDeck SS and HE 2.5 ft x 2.5 ft Pit Frame (1,000lb - 10,000lb) SST , add $1,189.50
Rice Lake 18760 RoughDeck SS and HE 3 ft x 3 ft Pit Frame (1,000lb - 10,000lb) SST
Rice Lake 18760 RoughDeck SS and HE 3 ft x 3 ft Pit Frame (1,000lb - 10,000lb) SST, add $1,189.50
Rice Lake 18762 RoughDeck SS and HE 4 ft x 4 ft Pit Frame (1,000lb - 10,000lb) SST
Rice Lake 18762 RoughDeck SS and HE 4 ft x 4 ft Pit Frame (1,000lb - 10,000lb) SST, add $1,478.10
Rice Lake 18764 RoughDeck SS and HE 5 ft x 5 ft Pit Frame (1,000lb - 10,000lb) SST
Rice Lake 18764 RoughDeck SS and HE 5 ft x 5 ft Pit Frame (1,000lb - 10,000lb) SST, add $1,829.10
Rice Lake 18766 RoughDeck SS and HE 4 ft x 5 ft Pit Frame (1,000lb - 10,000lb) SST
Rice Lake 18766 RoughDeck SS and HE 4 ft x 5 ft Pit Frame (1,000lb - 10,000lb) SST, add $1,657.50
Rice Lake 18772 RoughDeck SS and HE 5 ft x 7 ft Pit Frame (1,000lb - 10,000lb) SST
Rice Lake 18772 RoughDeck SS and HE 5 ft x 7 ft Pit Frame (1,000lb - 10,000lb) SST, add $2,176.20
The Toughest, Most Accurate Floor Scale Available. The RoughDeck HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications. Design features include a six-inch, 304 stainless steel channel frame and smooth top plate. The RoughDeck HE comes standard with four stainless steel, IP67 welded-seal, shear beam load cells, four stainless steel support feet, a stainless steel NEMA Type 4X TuffSeal summing junction box and EL147HE hostile environment load cell cable.

The stainless steel channel frame provides added protection by enclosing load cell cable and load cells, yet provides easy access for installation and service. The NEMA Type 4X summing TuffSeal junction box can be remotely mounted up to ten feet from the scale, keeping sensitive electronic connections away from moisture and chemicals.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

  • Rugged washdown design
  • 304 stainless steel construction
  • Rigid 304 stainless steel channel frame
  • 4 stainless steel, welded-seal IP67, shear-beam load cells
  • 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
  • Remote TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card for remote mounting
  • Load cells protected on all four sides
  • Smooth stainless steel deck
  • 4 stainless steel, welded-seal IP67, shear-beam load cells
Model HE-25X25-2K HE-3X3-2K HE-4X4-5K HE-4X4-10K HE-4X5-5K HE-4X5-10K HE-5X5-5K HE-5X5-10K HE-5X7-5K HE-5X7-10K
18680 18681 18682 18683 18684 18685 18688 18689 18692 18693
Rice Lake Roughdeck HE Ho
$2,687.30
buy now
Rice Lake Roughdeck HE Ho
$3,053.05
buy now
Rice Lake Roughdeck HE Ho
$4,265.80
buy now
Rice Lake Roughdeck HE Ho
$5,730.40
buy now
Rice Lake Roughdeck HE Ho
$4,772.80
buy now
Rice Lake Roughdeck HE Ho
$6,653.80
buy now
Rice Lake Roughdeck HE Ho
$6,061.00
buy now
Rice Lake Roughdeck HE Ho
$7,717.80
buy now
Rice Lake Roughdeck HE Ho
$7,945.80
buy now
Rice Lake Roughdeck HE Ho
$10,092.80
buy now
Size 2.5 ft x 2.5 ft x 3.5 in 3 ft x 3 ft x 3.5 in 4 ft x 4 ft x 3.5 in 4 ft x 4 ft x 3.5 in 4 ft x 5 ft x 3.5 in 4 ft x 5 ft x 3.5 in 5 ft x 5 ft x 3.5 in 5 ft x 5 ft x 3.5 in 5 ft x 7 ft x 3.5 in 5 ft x 7 ft x 3.5 in
Capacity x Readability 2000 x 0.5 lb 2000 x 0.5 lb 5000 x 1 lb 10000 x 2 lb 5000 x 1 lb 10000 x 2 lb 5000 x 1 lb 10000 x 2 lb 5000 x 1 lb 10000 x 2 lb
1000 x 0.2 kg 1000 x 0.2 kg 2500 x 0.5 kg 5000 x 1 kg 2500 x 0.5 kg 5000 x 1 kg 2500 x 0.5 kg 5000 x 1 kg 2500 x 0.5 kg 5000 x 1 kg
Legal For Trade NTEP CC 92-001, Class III 5,000d
End Load Capacity 100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb
Junction Box Remote TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card for remote mounting
Load cells protected on all four sides
Four stainless steel, welded-seal IP67, shear-beam
Construction 304 stainless steel
Cable 20ft SURVIVOR® EL147HE hostile environment load cell cable
Warranty RoughDeck SS weldment five years, load cells two years, all other components one year
Approvals NTEP CC 92-001, Class III 5,000 d
FM Approved
