Rice Lake Deckhand Rough-n-Ready Portable Bench Scale
For rugged, portable weighing, Rice Lake’s Deckhand is the perfect choice. Large rubber wheels and diamond-tread top plate simplify industrial weighing jobs and make movement from place to place a one-person job. A steel handle doubles as the indicator base for a variety of Rice Lake weight displays. Optional ramp available. Select the Deckhand stand-alone model, or the all-in-one, factory-calibrated Deckhand Rough-N-Ready system with 482 Plus indicator.
For rugged, portable weighing, Rice Lake’s Deckhand is the perfect choice. Large rubber wheels and diamond-tread top plate simplify industrial weighing jobs and make movement from place to place a one-person job. A steel handle doubles as the indicator base for a variety of Rice Lake weight displays. Optional ramp available. Select the Deckhand stand-alone model, or the all-in-one, factory-calibrated Deckhand Rough-N-Ready system with 482 Plus or IQ plus® 590-DC
Move the DeckHand to any part of a facility and be instantly ready to weigh accurately. The platform is designed to weigh perfectly on all corners. Off-center product loading will not affect weighing accuracy.
DeckHand wheels only touch the floor when the unit is tilted back for movement allowing the weighing platform to remain stable on uneven floors.
Partner this scale with one of Rice Lake’s battery-operated indicators. Installed with the IQ plus® IQ plus® 590-DC for a clear view of the weight no matter where the scale is located.
Mild steel wheeled frame, base and mast
500 lb, 1,000 lb, 2,000 lb capacity
Large rubber wheels simplify movement on uneven floors
Aluminum load cells (2)
Package includes: Mild steel DeckHand Portable Scale and IQ plus® 590-DC indicator or 482 Plus indicator with internal battery
Factory-wired and calibrated
See IQ plus 590-DC or 482 Plus for indicator specifications
Legal For Trade*
Canada Measurement*

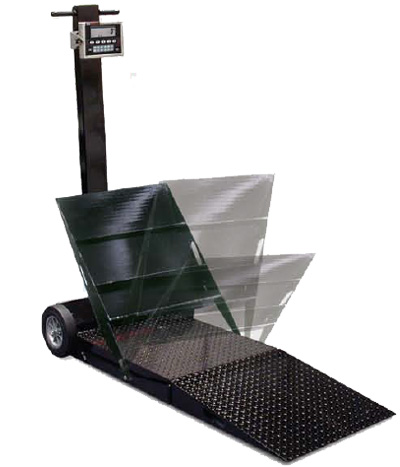

Shown with an optional ramp, allowing
barrels and other large objects to be
easily moved on and off the scale.
Model
69525
69526
69527
169707
169708
169709
$2,499.00
$2,499.00
$2,592.50
$3,296.00
$3,296.00
$3,296.00
Capacity x Readability
500 x 0.2 lb
1000 x 0.5 lb
2000 x 1 lb
500 x 0.2 lb
1000 x 0.5 lb
2000 x 1 lb
OVERALL SIZE
31 x 41 inch
Indicator
IQ plus ® 590-DC
482 Plus
Display
1 in (24.5 mm) 6-digit Liquid Crystal Display (LCD)
0.8 in (20 mm), 6-digit, 7-segment LCD backlit display,
Units
lb, kg
lb, kg
Communications
RS-232
2 x RS-232
Indicator Rating/Material
NEMA Type 4X/IP66, stainless steel
NEMA Type 4X/IP66, heavy-gauge stainless steel
Power:
Powered by 6 C cell alkaline batteries for complete portability
AC 110 V and Rechargeable Batteries
Base Legal For Trade
NTEP CC 98-004, Class III, 2,500 d Measurement Canada AM-5218, (250 kg and 500 kg) Class III 2,500 d (1,000 kg) Class III 2,000 d
Indicator Legal For Trade
NTEP CC 98-203, Class III/IIIL 10,000d Measurement Canada AM-5300, Class III 10,000d, Class IIIHD 20,000d
Measurement Canada AM-5892, Accuracy Class III/IIIHD, 10 000d NTEP CC 12-123, Accuracy Class III/IIIL, 10 000d OIML R76/2006-NL1-12.48, T5692, TC8322Accuracy Class III, 10 000d
Standard Features
Full numeric keypad
Keyboard entry of piece weight, tare weight, calibration and sample size
Display tare button
Powered by 6 C cell alkaline batteries for complete portability (batteries not included)
(3) 300-character print ticket formats
Power for (4) 350 ohm load cells or (8) 700 ohm load cells
Supports 4- and 6-wire load cell connections
EDP port for full duplex, RS-232 communications
NEMA Type 4X/IP66-rated stainless steel enclosure
LCD display, 1 in (24.5 mm), 6-digit
AC adapter for 115 or 230 VAC power
Configurable standby mode to prolong battery life
RATTLETRAP® 3-stage digital filtering
Configurable units multiplier
Configurable analog-to-digital measurement rate
Self-resetting thermal fuse
Configurable with Revolution® software
LCD backlit display, 0.8 in (20 mm), 6-digit, 7-segment
Time and date, battery backed
Local/remote operation
Numeric keypad (482 Plus)
Keyed entries for tare and setpoint values (482 Plus)
2 independent serial ports, RS-232 and 20 mA
NEMA Type 4X/IP66 stainless steel washdown enclosure
Password protection for user and configuration changes
Selectable conversion rate and display update rate
Hardware or audit trail metrology sealing
Programmable ticket formats for gross, net, accumulator and setpoints
5 continuous stream formats
Adaptive filter or rolling average filter
Configurable with Revolution® software
Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
8 setpoints, sequenced batch engine
Options (Call for more info)
-
Analog output, 0-10 VDC, 0-20 mA, 4-20 mA, selection for 20% offset
Relay output, 2 digital inputs, four dry contact relays (supports 2 boards)
Ethernet TCP/IP and USB interface (requires cable)
Battery, rechargeable lithium ion Power for 40 hours of battery life on one 350 ohm load Power-saving modes for sleep and wake-up threshold
Indicator Specifications
Power: 9 VDC, provided by 6 C-cell alkaline batteries or AC adapter
Power Consumption:
100 mA (100 hours with 4 load cells)
25 mA (300 hours with 1 load cell)
Excitation Voltage: 5 VDC, 4 x 350 Ù or 8 x 700 Ù load cells
Analog Signal Input Range: -2.5 mV – 22.5 mV
Analog Signal Sensitivity:
0.3 ìV/graduation minimum
1.5 ìV/grad recommended
Resolution:
Internal resolution: 1 million counts
Display resolution: 100,000d
Counting Capacity: 100,000 pieces
Measurement Rate: 30, 15, 71/2, 33/4 per second
System Linearity: Within 0.01% of full scale
Serial Communications: EDP/Printer port: Full duplex RS-232
Display: 1 in (24.5 mm) 6-digit Liquid Crystal Display (LCD)
Circuit Protection: RFI, EMI, ESD protection
Annunciators: Units (lb/kg), piece count mode (PC), gross, net, standstill, center of zero, tare, low battery
