MB-120 MB-90 Specifications Chart Ohaus MB Series Moisture analysis made simple—and powerful Advanced functionality. Precise results. Your first choice for moisture analysis, from your lab to the factory floor. Delivering functionality and precision you can rely on—and so easy to operate and clean, you can test more samples in less time! Exceptional Precision The MB120 and MB90 provide precise results for more confident testing Uniform drying for precise, repeatable results of 0.01% readability. - The unique reflective sample chamber ensures uniform heating of each sample—so you can count on getting the same result every time. Fast heating to minimize testing time. - Halogen heating technology begins drying each sample in seconds and performs up to 40% faster than traditional infrared methods, for higher throughput and a more efficient work day. Shut-off criteria for automatic test completion. - Customize your own test endpoint criteria: • Manual, Timed, AutoFree percent weight loss per second, AutoFree mg loss per second, A30, A60, A90 (MB120) • Manual, Timed, Auto (MB90) Flexible and powerful enough for a wide variety of sample types. - Features a full operating temperature range of 40º-200ºC (MB90) or 40º-230ºC (MB120) in 1º increments. The MB120 has four drying profiles for precise temperature control to ensure accuracy. - Customize heating for specific samples for one-step drying without the risk of sample degradation—from wastewater to grains to plastics. Just set temperature and time and begin! Fast: Quickest possible time to temperature Standard: Minimal overshoot while achieving temperatures quickly Ramp: Controlled ramping to temperatures Step: Set three temperatures at three time intervals

Ohaus MB-Series Moisture Analyzers FREE UPS Ground Shipping (within the 48 continental US States) For a limited time only Add to Cart to see Price Select MB-90 MB-120 Ohaus 11113857 Temperature Calibration Kit, add $700.20 Ohaus 80850043 Security Device (470004-010) , add $253.30 Ohaus 80850086 Sample Pans For All MB's (80/Box), add $78.30 Ohaus 80850087 Glass Fiber Pads, add $123.30 Ohaus 80252477 - Sample Cage for MB Series, add $125.10 Ohaus 80252478 - Three 7mm Reusable Pans for MB Series, add $104.40 Ohaus 80252479 - Three 14mm Reusable Pans for MB Series, add $108.00 Ohaus SF40A Portable Dot-Matrix Impact Printer, add $1,107.55 Specifications Chart

Advanced Functionality

Cleanup in a Snap

Testing Made Simple

• Icon-driven menu navigation is easy to follow, with no training required
• Four mechanical keys for fast one-step operation: Tare, Start/Stop, Print, On/Off
• USB and RS232 ports enable quick connections to a PC or flash drive
• Moisture analysis made simple—just three easy steps for routine sample testing!
  1. Tare empty sample pan
  2. Add sample according to best practices
  3. Press start and see your results!

Model	MB90	MB120
Price
Capacity X Readability (g)	90 x 0.001	120 x 0.001
Capacity X Readability (%)	0.01%	0.01%
Repeatability (Std. Dev.) (g)	0.18% (3 g sample) 0.02% (10 g sample)	0.05% (3 g sample) 0.015% (10 g sample)
Moisture Range	0.01% to 100% (0.01% to 1000% for regain mode	0.01% to 100% (0.01% to 1000% for regain mode)
Output	RS232, USB Host, USB Device	RS232, USB Host, USB Device
Heating Element	Halogen	Halogen
Temperature Range	40–200 °C	40–230 °C
Power	120 or 240 VAC 50/60 Hz	120 or 240 VAC 50/60 Hz
Operating Temperature Range	50–104 °F/10–40 °C	50–104 °F/10–40 °C
Display Type	4.3 in/109 mm, QVGA, TFT touch screen	4.3 in/109 mm, QVGA, TFT touch screen/td>
Display Results	%moisture, %solids, %regain, time, temperature, weight, method name, drying curve and statistics	%moisture, %solids, %regain, time, temperature, weight, method name, drying curve and statistics
Pan Size	3.5 in/90 mm	3.5 in/90 mm

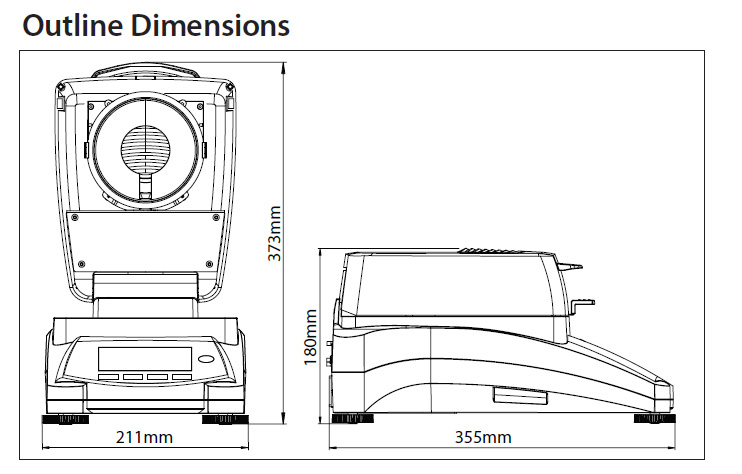

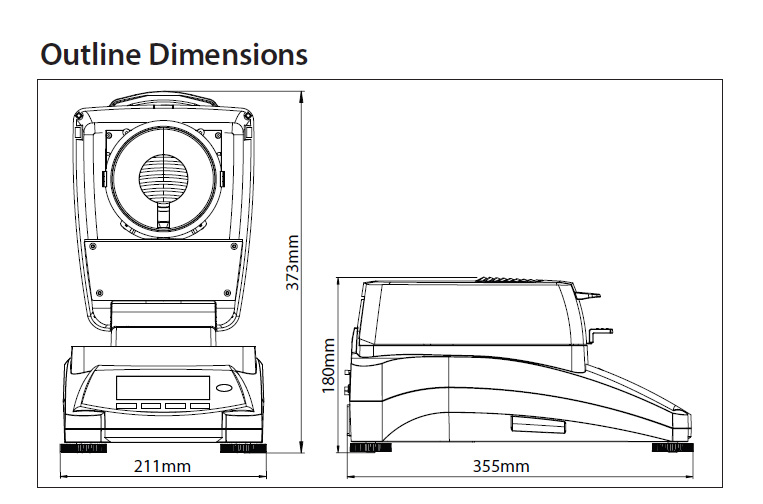

Dimensions (W × H × D)	8.3 × 7.7 × 14.0 in/211 × 180 × 355 mm	8.3 × 7.7 × 14.0 in/211 × 180 × 355 mm
Net Weight	11.5 lb/5.23 kg	11.5 lb/5.23 kg
Shipping Weight	18.4 lb/8.35 kg	18.4 lb/8.35 kg
	More info	More info

Ohaus MB120

Moisture Analysis Made Simple—and Powerful. The MB120 delivers functionality and precision that you can rely on, and is easy to operate and clean—you can test more samples in less time! Advanced features such as a temperature guide help to analyze optimum drying temperature, and methods and results storage allows statistical analysis of measurements. Three levels of user management ensure data safety—set up and lock temperature settings and method parameters with administrator access. Standard Features Include: Advanced Functionality for Professional Moisture Analysis MB120’s Temperature Guide analyzes a sample and determines the optimal drying temperature. Store up to 100 drying methods for easy recall and up to 1000 total results for statistical analysis. Precise and Fast Results with Halogen Heating Increases Efficiency in the Lab Precisely controlled halogen heating dries samples uniformly, producing repeatable results of 0.01% readability. Four drying profiles and seven shut-off criteria help to perform customized sample tests. Easy Tool-Free Cleaning and Intuitive Operation with the Icon-Driven Menu Navigation The MB120 features a removable pan handler and sample chamber for easy cleaning. Operating the MB120 is intuitive—simply follow the guided instructions on the touchscreen display. The robust housing and die-cast base guarantee durability.

Test a wide variety of materials for a range of applications with MB120.
• Temperature Guide Easily analyze a sample of a specific material and determine the optimum drying temperature.
• 100 Methods Library Makes Testing Faster Program the parameters for up to 100 different types of samples, then select and run your test with the push of a button.
• Store Up to 1000 Results for All Methods for Statistical Analysis Quickly retrieve data and save to flash drive.
• Three-Level User Management Set up and lock temperature settings and method parameters

• Touchscreen Display Easy to read and understand
• Icon-Driven Menu Navigation Easy to follow — no training required
• 4 Mechanical Keys for Fast One-Step Operation Tare, Start/Stop, Print, On/Off
• USB and RS232 Ports Quick connections to a PC or flash drive
• Moisture Analysis Made Simple Just 3 easy steps for routine sample testing!
  1. Tare empty sample pan
  2. Add sample according to best practices
  3. Press start and see your results

• Fast Halogen Heating Technology Halogen heating dries samples in seconds and performs up to 40% faster than traditional infrared methods.
• Uniform Drying for Precise, Repeatable Results The reflective sample chamber ensures uniform heating of each sample to yield reliable results of 0.01% readability.
• Flexible and Powerful Features a full operating temperature range of 40–230 °C in 1 degree increments.
• Four Drying Profiles to Ensure Accuracy Customize heating of specific samples with temperature control for one-step drying—set temperature and time and begin! Fast: Quickest possible time to temperature
  Standard: Minimal overshoot while achieving temperatures quickly
  Ramp: Controlled ramping to temperatures
  Step: Set three temperatures at three time intervals

• Shut-Off Criteria for Automatic Test Completion Customize your own test endpoint criteria to automatically end the test once moisture loss is no longer detected. Choose from 7 criteria—Manual, Timed, AutoFree percent weight loss per second, AutoFree mg loss per second, A30, A60 and A90.
Easy Tool-Free Cleaning The MB120 features a patented pan handler and removable parts for convenient maintenance.
• Stainless Steel Drying Pan Wipe down quickly
• Removable Heating Chamber Components No tools required—simply remove glass and tray to clean

1. Product Safety: IEC/EN 61010-1; IEC/EN 61010-2-010; CAN/CSA C22.2 61010-1; CAN/CSA C22.2 61010-2-010; UL 61010-1
2. Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class A; ICES-003 Class A

Additional Features—MB120 ABS top housing, stainless steel pan support, in-use cover, user-guide, 13 operational languages

Ohaus MB90

Combining Speed and Precision in One Moisture Analyzer –Test More Samples in Less Time Measuring moisture content has never been easier than with the MB90 Moisture Analyzer. The MB90s halogen heating distributes heat uniformly over the sample and speeds up the drying process— delivering fast and precise measurements. Designed for tool-free cleaning, the MB90’s components can be easily removed for quick and easy maintenance. Operating the MB90 is intuitive with the icon-driven menu navigation on the touchscreen display. Standard Features Include: Outstanding Halogen Heating Guarantees Fast and Precise Results The MB90’s precisely controlled halogen heating dries samples quickly and ensures uniform heating to yield fast, precise and repeatable results of 0.01% readability. Effortless Maintenance with the Tool-Free Cleaning Design Designed with effortless maintenance in mind, the MB90 features a removable pan handler and heating chamber components that make cleaning quick and easy—no tools needed. Touchscreen Icon-Based Menu Navigation Guides Users Through Every Step Icon-based menu navigation on the easy-to-read touchscreen display makes operating the MB90 intuitive. Perform routine sample testing in three easy steps—no training required.

• Fast Halogen Heating Technology Halogen heating dries samples in seconds and performs up to 40% faster than traditional infrared methods.
• Uniform Drying for Precise, Repeatable Results The reflective sample chamber ensures uniform heating of each sample to yield reliable results of 0.01% readability.
• Flexible and Powerful Features a full operating temperature range of 40–200 °C in 1 degree increments.
• Two Drying Profiles to Ensure Accuracy Customize heating of specific samples with temperature control for one-step drying—set temperature and time and begin!
  • Fast: Quickest possible time to temperature
  • Standard: Minimal overshoot while achieving temperatures quickly
• Shut-Off Criteria for Automatic Test Completion Customize your own test endpoint criteria to automatically end the test once moisture loss is no longer detected. Choose from 3 criteria—Manual, Timed and Auto.

• Stainless Steel Drying Pan Wipe down quickly
• Removable Heating Chamber Components No tools required—simply remove glass and tray to clean

• Touchscreen Display Easy to read and understand
• Icon-Driven Menu Navigation Easy to follow—no training required
• 4 Mechanical Keys for Fast One-Step Operation Tare, Start/Stop, Print, On/Off
• USB and RS232 Ports Quick connections to a PC or flash drive
• Moisture Analysis Made Simple
  Just 3 easy steps for routine sample testing!
  1. Tare empty sample pan
  2. Add sample according to best practices
  3. Press start and see your results!

Versatile connectivity options to handle data collection and transfer needs—enhancing the user experience.
• USB and RS232 Ports Quick connections to a PC or flash drive
• Data Collection and Transfer You can simply save and transfer data from the moisture analyzer to a USB drive

• Product Safety: IEC/EN 61010-1; IEC/EN 61010-2-010; CAN/CSA C22.2 61010-1; CAN/CSA C22.2 61010-2-010; UL 61010-1
• Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class A; ICES-003 Class A
