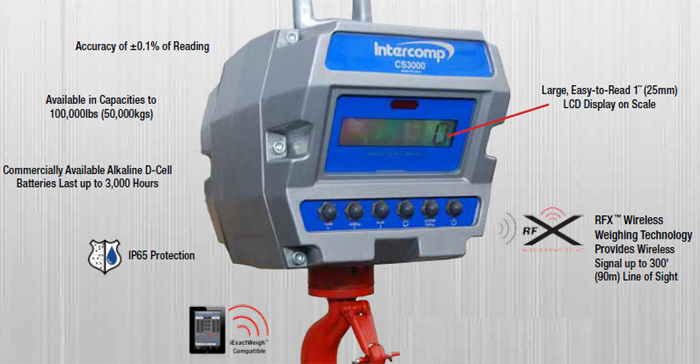

Available in capacities ranging from 2,000lb (1,000kg) to 100,000lb (50,000kg), the CS3000? crane scale features fully integrated RFX? Wireless Weighing Technology and is built to thrive in harsh environments. All crane unit electronics are shock-mounted in a weatherproof case and provide maximum protection against moisture, dust and rough usage. Commercially available batteries offer industry leading battery life, minimizing down time due to battery charging or replacement
Intercomp offers the industry?s most extensive line of crane scales, and can provide your company with a cost-effective solution to virtually every overhead industrial weighing application - ranging from 25 to 600,000 lbs/ 12.5 to 300,000 kg.
Our advanced design, value-packed with the industry?s most desired features, makes Intercomp the first choice over other electronic units. Ultra high-resolution, A/D conversion delivers unsurpassed accuracy, and digital keypad setup and calibration enhance the ease of operation.
Legal For Trade
All crane unit electronics are shock-mounted in a weatherproof case and provide maximum protection against moisture, dust and rough usage. Features include a high-visibility digital readout for easy reading of weights and large pushbutton switches for simple, trouble-free operation.
Low-cost, high performance digital crane scale for medium capacity industrial applications. The unique design flexibility lets you choose the model and weighing capacity you need - NTEP certified from 300 to 20,000 lb/150 to 10,000 kg. The unit utilizes a high-visibility 0.8 inch/20 mm LED digital readout and the efficient micro-controller delivers up to 100 hours of operation on eight (8) D-cell batteries. Crosby eye hook and bottom swivel hook.
Available in capacities ranging from 2,000lb (1,000kg) to 100,000lb (50,000kg), the CS3000? crane
scale features fully integrated RFX Wireless Weighing Technology and is built to thrive in harsh
environments. All crane unit electronics are shock-mounted in a weatherproof case and provide
maximum protection against moisture, dust and rough usage. Commercially available batteries last
up to 3,000 hours in the scale, minimizing down time due to battery charging or replacement.
Intercomp 100015 RFX? Wireless S400? Indoor Numeric Remote Display Price: $1,790.00 Out of Stock
Intercomp Part 340105-RFX Wireless Thermal Printer with RFX? Communication Module Price: $715.50 In Stock
Intercomp 101221-RFX PT20 CPU RFX Indicator with Built-in-Printer Price: $2,695.50 In Stock
Intercomp 101225-RFX Handheld Weighing RFX Indicator Price: $895.50 In Stock
Intercomp 140759 IntercompWeigh? Software Price: $895.50 In Stock
220-bit A/D converter delivers over 1,000,000 internal counts
Auto-Zero
Satisfies all NIST/OIML requirements
Zero
Up to 100% excluding NIST/OIML units
Tare
Up to 100% of capacity
Humidity
10 to 95% non-condensing
Temperature
Operating -4 to +140°F/- 20 to +60°C
Filtering
6-pole, 10 hertz low pass
Speed
3 Seconds to typical reading
Accuracy
+/- 0.1% of reading
Maximum Overload
500% of capacity
Enclosure
NEMA IV cast aluminum case
Hook or Eye
Crosby-Laughlin or equivalent
Custom Options
From 500-100000 lb /metric equivalent Substitute Bottom Shackle for Swivel Hook(Custom Order Only)
Oversized top lifting eye on 500-10,000 lb/metric equivalent(Custom Order Only)
Oversized top shackle on 20,000-100,000 lb/metric equivalent (Custom Order Only)
Anti heat shield - Oversized hook and custom swivel - Foundry Package (Custom Order)
Headroom Loss Adapter Adapter - replaces top eye or shackle(Customer Order Only)
