Brecknell 6700U Series POS Bench Scales

Call Toll Free:
(800) 832-0055

Quick Jump:

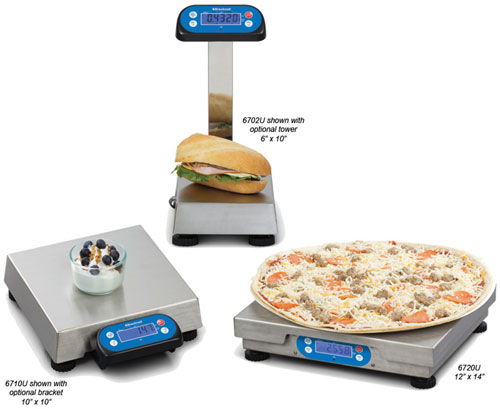

Brecknell 6700U Series POS Bench Scales
The 6700U POS Bench scales are designed to be used for linking to electronic cash registers or computers. Traditionally used in convenience stores, cafeterias, delicatessens, coffee or other retailers where counter space is limited. OPOS compatible.

Salter Brecknell

Specifications Chart


Legal For Trade	Canada Measurement

Brecknell 6700U Series POS Bench Scales

	Salter 816965005918 305 mm / 12” high display post for 6702U, add $63.00
	Salter 816965005925 Display bracket (6710U) attach display to scale base, add $39.00
	Salter 1140-13842 3 m / 10 ft RS-232C interface cable (9-pin M/F pass through), add $20.00
	Salter Brecknell AWT05-507974 - 1.8 m / 6' USB A to A Cable, add $15.00
	Salter Brecknell 816965005949 Remote display with cable 610 mm / 24 in for 6700U Series, add $82.00
	Salter Brecknell 816965005932 Remote display with cable 2 m / 7 ft for 6700U Series, add $120.00
	Salter Brecknell 816965005956 2 m / 7 ft display extension cable , add $45.00

The 6700U POS Bench scales are designed to be used for linking to electronic cash registers or computers. Traditionally used in convenience stores, cafeterias, delicatessens, candy stores, coffee houses, or other retailers where counter space is limited. OPOS compatible. Point-of-Sale Interface Scale for linking to electronic cash registers or computers The smallest point-of-sale scale on the market today for linking to electronic cash registers or POS terminals. The 6700U scales are designed for use in coffee houses, convenience stores, cafeterias, ice cream parlors, tobacco shops, theaters, or other retailers where counter space is limited

Accuracy: +/- 0.01%
Weighing Mode: kg, lb, oz, g, lb:oz
Display: ABS plastic housing. 5½ digits seven segments 15 mm / 0.58" high LCD with blue backlight
Interface Protocols: NCI, ECR, 8213 (Sharp), EH (PS60)
Easy-to-Install: Bi-directional 9-pin RS-232 and USB port. Interfaces to most electronic cash registers and point of sale software
Quick Disconnect: Makes all cable connections easy
Touchless Tare: Electronic mechanismenhances food handling safety
Operating Keys: Hold/Print, On/Off/Zero, Unit, Tare

Specifications

Model	6702U-5-EX	6702U-15-EX	6702U-30-EX	6710U-15-EX	6710U-30-EX	6720U-15-IN	6720U-30-IN	6720U-30-EX	6720U-60-IN
Model	$459.95	$499.95	$459.95	$479.95	$479.95	$519.95	$519.95	$539.95	$519.95
Part Number	816965006137	816965005857	816965006083	816965005864	816965005871	816965005888	816965005895	816965005901	816965006144
Platter Size	6" x 10" 152 x 254 mm			10" x 10" 254 x 254 mm		12" x 14" 305 x 355 mm
Capacity x Readability	5 x 0.001 lb	15 x 0.005 lb	30 x 0.01 lb	15 x 0.005 lb	30 x 0.01 lb	15 x 0.005 lb	30 x 0.01 lb	30 x 0.01 lb	60 x 0.02 lb
	-	15 lb x 0.1 oz	30 lb x 0.2 oz	15 lb x 0.1 oz	30 lb x 0.2 oz	15 lb x 0.1 oz	30 lb x 0.2 oz	30 lb x 0.2 oz	60 lb x 0.5 oz
	80 x 0.02 oz	240 x 0.1 oz	480 x 0.2 oz	240 x 0.1 oz	480 x 0.2 oz	240 x 0.1 oz	480 x 0.2 oz	480 x 0.2 oz	960 x 0.5 oz
	2.5 x 0.0005 kg	7.5 x 0.002 kg	15 x 0.005 kg	7.5 x 0.002 kg	15 x 0.005 kg	7.5 x 0.002 kg	15 x 0.005 kg	15 x 0.005 kg	30 x 0.01 kg
	2500 x 0.5 g	7500 x 2 g	15,000 x 5 g	7500 x 2 g	15,000 x 5 g	7500 x 2 g	15,000 x 5 g	15,000 x 5 g	30,000 x 10 g
Legal For Trade	NTEP #13-074* Class III - Measurement Canada AM-5912C
Display	External	External	External	External	External	Internal	Internal	External	Internal
Unit of Measure	kg, lb, oz, g, lb:oz* (*non-NTEP)
Check Weighing	OK annunciator with alarm
Count Weighing	Piece counting
Hold	Positive peak, negative peak, average hold and auto hold
Auto Zero Tracking	Zero light indicator and manual control when out of range
Zero Range	Selectable up to full scale
Alternate Calibration Points	Allows use of less than full capacity weight for calibration
Construction	Aluminium plate understructure and stainless steel platte					Heavy duty cast aluminium X shape support and stainless steel platter
Power	External power adapter (AWT05-507975 US) 6V 500mA with center positive (included) or USB (VCP) cable (not included)
Auto-Compensation	Local gravity effects to avoid initial calibration with test weights
Adjustable Filter Settings	Reduce environmental vibration noise for rapid setting and quick measurements
Communication	USB and 9-pin RS-232
Multiple Communication Protocols	Selectable
Remote Display Enclosure	147 mm (W) x 63 mm (W) x 5.8" W x 30 mm (D) 2.5" H x 1.2"D					-
Adjustable Height	69 mm x 82 mm / 2.75" - 3.25"					88 mm 101 mm / x 3.5" - 4"D
Agency Approvals	NTEP 13-074, Measurement Canada AM-5912C, UL, CE, EC pending Counting function non-trade approved

*Counting function non-trade approved
