| Minebea Signum Washdown Industrial Scales |
Authorized Dealer |

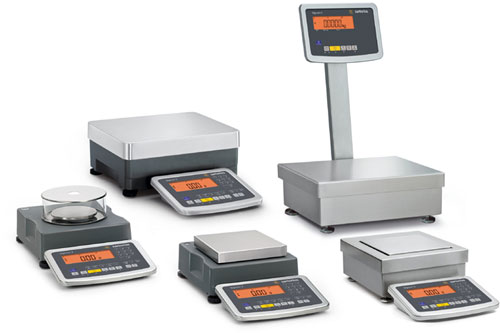

| The Signum® industrial scale from Minebea is a compact industrial scale in which a choice of two powerful technologies is used: SIWR and SIWA models work with a strain-gauge type load cell; the high-resolution SIWS models feature monolithic weigh cells based on electromagnetic force compensation. The new Signum® offers exceptional performance features and, despite its wide variety of functions, is a very easy-to-operate industrial scale |
| Minebea Intec Scales >> Industrial Scales |
|
Please Call (800)832-0055 for all other Signum Configurations
|
Basic Preconfigured Models
|
- Minebea Signum Application level 1:Weighing and SQ min (minimum allowable sample quantity)
- Minebea Signum Application level 2: Weighing, Averaging, Reference scale connection, Counting, Totalizing,
Checkweighing, Date/time, SQ min (minimum allowable sample quantity)
- Minebea Signum Application level 3: Weighing, Averaging, Reference scale connection, Counting, Totalizing,
Checkweighing, Product data memory, Date/time, SQ min (minimum allowable sample quantity), ID codes (4x40 characters)
The Signum® industrial scale from Minebea is a compact industrial scale in which a choice of two powerful technologies is used: SIWR and SIWA models work with a strain-gauge type load cell;
the high-resolution SIWS models feature monolithic weigh cells based on electromagnetic force compensation. The new Signum® offers exceptional performance features and, despite its wide variety of functions, is a very easy-to-operate industrial scale. The Signum® is extremely rugged and resistant, and perfectly adapts to any ambient conditions in an industrial environment.
With Signum® industrial scale, anything is possible: pick and choose your level of applications and different resolutions, and enjoy the benefits of a wide variety of interfaces and options for use in hazardous areas and for many more features. The Signum® is a compact scale built exactly the way you want it - without compromises.
With the high resolution versions of the Signum® series you can realize resolutions in the milligram range. They are especially designed for precise weighing tasks and applications such as counting, checking and formulation.
- Mechatronic weighing system
- Resolutions up to 65,000 d
- Compact scale with all application levels
available for selection
- Flexible and ergonomic thanks to flexible mounting options of the control unit in slim-line design
- Overload protection
- Variety of options for special requirements/Data communication
- Optional IP65 protection and optional approval for zone 2 and 22 hazardous areas
|
|
 |

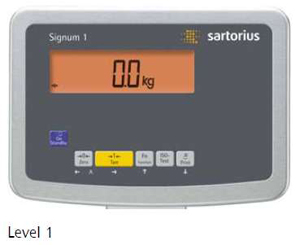

Minebea Signum Application level 1:Weighing and SQ min (minimum allowable sample quantity) |
 |

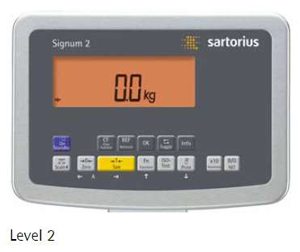

Minebea Signum Application level 2: Weighing, Averaging, Reference scale connection, Counting, Totalizing,
Checkweighing, Date/time, SQ min (minimum allowable sample quantity) |
 |

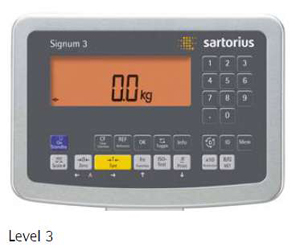

Minebea Signum Application level 3: Weighing, Averaging, Reference scale connection, Counting, Totalizing,
Checkweighing, Product data memory, Date/time, SQ min (minimum allowable sample quantity), ID codes (4x40 characters) |
| Level 1 Signum Washdown Industrial Scales |
| Model |
SIWSBBP-V16 |
SIWSBBP-V17 |
SIWADCP-V3 |
SIWSDCP-V18 |
SIWSDCP-V19 |
SIWRDCP-V6 |
SIWRDCP-V7 |
SIWADCP-V24 |
SIWRDCP-V8 |
SIWADCP-V25 |
SIWRDCP-V9 |
SIWRDCP-V10 |
$4,830.30
|
$5,832.00
|
$2,554.20
|
$5,724.00
|
$6,243.30
|
$1,886.40
|
$1,907.10
|
$2,567.70
|
$1,924.20
|
$2,593.80
|
$1,944.90
|
$1,963.80
|
Capacity
X
Readability |
3.1 kg x 0.01g |
6.1 kg x 0.01g |
7 kg x 0.1g |
16 kg x 0.1g |
35 kg x 0.1g |
3 kg x 0.1g |
6 kg x 0.2g |
16 kg x 0.2g |
15 kg x 0.5g |
35 kg x 0.5g |
35 kg x 1.0g |
60 kg x 2.0g |
| Level |
Level 1 |
| Repeatability |
0.2 g |
1 g |
2 g |
| Linearity |
0.3 g |
0.4 g |
0.8 g |
1.5 g |
| Platform Size |
7.1" x 7.1" |
13.7" x 9.5" |
Scale
Dimensions |
16.4" x 5.2" |
| Weigh Cell |
Strain Gauge |
| Display Type |
Backlit Liquid Crystal Display with 6-buttons keyboard, 14-segments display, weighing, RS232-interface |
| Power |
AC Powered Only |
Operating
Temperature |
-10°C to 40°C (14°F to 104°F) |
Protection
Rating |
IP65 |
Indicator/
Platform
Material |
Die-Cast Aluminum - (AISI304)
(Stands up to most citrus applications) |
| Indicator Cable Length |
3 meters (coiled in unit's base) |
External
Calibration |
Requires 2 kg Cal. Weight |
Requires 3 kg Cal. Weight |
Requires 2 kg Cal. Weight |
Requires 8 kg Cal. Weight |
Requires 16 kg Cal. Weight |
Requires 2 kg Cal. Weight |
Requires 5 kg Cal. Weight |
Requires 10 kg
Cal. Weight |
Requires 20 kg
Cal. Weight |
| Functions |
Zero, Tare |
| Standard Features |
Basic Weighing, RS232 interface, Underhook |
| Level 3 Signum Washdown Industrial Scales |
| Model |
SIWADCP-V4 |
SIWRDCP-V20 |
SIWRDCP-V21 |
SIWADCP-V5 |
SIWRDCP-V22 |
SIWADCP-V6 |
SIWRDCP-V23 |
| Price |
$3,261.60
|
$2,617.20
|
$2,634.30
|
$3,304.80
|
$2,655.00
|
$3,320.10
|
$2,673.00
|
Capacity
X
Readability |
7 kg
x
0.1 g |
6 kg
x
0.2 g |
15 kg
x
0.5 g |
35 kg
x
0.5 g |
35 kg
x
1.0 g |
65 kg
x
1.0 g |
60 kg
x
2.0 g |
| Level |
Level 3 |
| Repeatability |
0.2 g |
1 g |
1 g |
1 g |
1 g |
2 g |
2 g |
| Linearity |
0.3 g |
2 g |
2 g |
2 g |
2 g |
4 g |
4 g |
| Platform Size |
13.7" x 9.5" |
| Scale Dimensions |
16.4" x 5.2" |
| Weigh Cell |
Strain Gauge |
| Display Type |
Backlit Liquid Crystal Display with 28-buttons keyboard, 14-segments display plus application symbols, weighing, dynamic weighing, counting, sum, checking, product data memory, identifiers (4x40 characters), RS232-
interface |
| Power |
AC Powered Only |
Operating
Temperature |
-10°C to 40°C (14°F to 104°F) |
Protection
Rating |
IP65 |
Indicator/
Platform
Material |
Die-Cast Aluminum - (AISI304)
(Stands up to most citrus applications) |
| Indicator Cable Length |
3 meters (coiled in unit's base) |
| External Calibration |
Requires 2 kg Cal. Weight |
Requires 5 kg Cal. Weight |
Requires 10,000 g Cal. Weight |
Requires 10 kg Cal. Weight |
Requires 20 kg Cal. Weight |
Requires 20 kg Cal. Weight |
| Functions |
Zero, Tare, Counting, Checkweighing, Classification, Averaging(animal weighing), Totalizing, Neutral Measurement, % Weighing, Formulation, Product Data Memory (100), 4 Configurable ID Fields |
| Standard Features |
Basic Weighing, RS232 interface, Underhook |
| Accessories |
| Optional Interfaces (UniCOM) |
|
Model |
Description |
Price |
 |
YDO01SW-232 |
UNICOM - Interface Modules RS232 |
$410.40
|
 |
YDO01SW-485/422 |
UNICOM - Interface Modules RS485/422 |
$410.40
|
 |
YDO01SW-AO |
UNICOM - Interface Modules Analog out (0/4-20 mA, 0-10V) |
$978.30
|
 |
YDO01SW-ETH |
UNICOM - Interface Modules Ethernet |
$978.30
|
 |
YDO01SW-DIO |
UNICOM - Interface Modules Digital I/O |
$978.30
|
 |
YDO01SW-DP |
UNICOM - Interface Modules Profibus DP |
$1,463.40
|
| External data interface adapters |
|
Model |
Description |
Price |
 |
YCC01-USBM2 |
Connecting cable from RS232 data interface to USB interface on PC, D-submini 25-pin, 2 m |
$243.00
|
| Printers and Printer accessories |
|
Model |
Description |
Price |
 |
YDP20-0CE |
Strip Printer (Verifiable for use in legal metrology) with statistics, date and time functions |
$1,314.00
|
 |
6906937 |
Printer paper 50 m (package of 5 rolls) for YDP20-0CE |
$70.00
|
 |
U1-6906918 |
INK Ribbon cartridge for data printer (spare) for YDP20-0CE |
$29.95
N/A
|
 |
YDP12IS-0CEUVTH |
Verifiable label and strip printer with thermal transfer printer, paper width 108 mm, with external power supply 100-240 V and power cord (EU + UK), only in connection with flexible printout configuration, connecting cable require: YCC01-01CISLM3. |
$1,260.00
N/A
|
 |
69Y03234 |
3 Ink ribbon cartridges for YDP12IS-0CEUVTH |
$226.80
|
| Labels for YDP04IS-0CEUV + YDP12IS-0CEUV |
|
Model |
Description |
Price |
 |
69Y03092 |
Labels for YDP04IS-0CEUV and YDP12IS-0CEUV, 58 x 30 mm (1000 labels) |
$50.00
|
 |
69Y03093 |
Labels for YDP04IS-0CEUV and YDP12IS-0CEUV, 58 x 76 mm (500 labels) |
$52.00
|
 |
69Y03094 |
Labels for YDP04IS-0CEUV and YDP12IS-0CEUV, 58 x 100 mm (380 labels) |
$62.00
|
| Data Transfer Software & Cables |
|
Model |
Description |
Price |
 |
YCC05-001M2 |
Cable, 9 pin and 25 pin interfacing, 5 ft., IBM type (fits RS232) |
$111.60
|
 |
YCC05-001M5 |
Cable, 9 pin and 25 pin interfacing, 16 ft., IBM type (fits RS232) |
$136.80
|
 |
YCC05-001M10 |
Cable, 9 pin and 25 pin interfacing, 33 ft., IBM type (fits RS232) |
$137.70
|
 |
YCC05-001M15 |
Cable, 9 pin and 25 pin interfacing, 49 ft., IBM type (fits RS232) |
$136.80
|
 |
YCC01-USBM2 |
RS232 (25 pin) to USB connecting cable |
$243.00
|
| Electrical Accessories |
|
Model |
Description |
Price |
 |
YRD11Z |
Indicator, Red-Green-Red, for over/under checkweighing, fits RS232C and checkweighing software, 9 foot |
$660.45
|
 |
YFS01 |
Foot Switch with T-Connector, for remote control of print, tare, cal, F, CF or toggle key |
$461.48
|
 |
YHS02 |
Hand Switch with T-Connector, for remote control of print, tare, cal, F, CF or toggle key |
$512.11
|
 |
YSB01 |
Relay box for connecting scales to external control units, with 4 (5) relay outputs (230 V/3 A) and 1 opoto coupler input (0-30 V), connecting cable YCC02-RELAIS01/02 necessary |
$731.70
|
 |
YSB02 |
Relay box for connecting scales to external control units, with 4 (5) relay outputs (230 V/3 A) and 1 opoto coupler input (0-30 V), connecting cable YCC02-RELAIS01/02 necessary |
$639.00
|
| Software |
|
Model |
Description |
Price |
| Mounting Brackets |
|
Model |
Description |
Price |
 |
YDH02CISUS |
Brackets for wall mounting, stainless steel, tiltable indicator. |
$104.40
|
 |

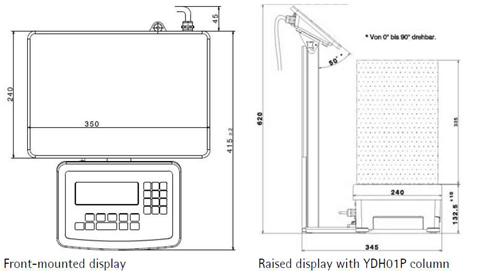

YDH01P |
Column for signum DC Platforms |
$592.20
|
| Others |
|
Model |
Description |
Price |
 |
YDC01SW |
Dust Cover (2 Units) |
$86.40
|
