Ohaus D71P30HR1 Defender 7000 Rectangular Scale (60 lb x 0.01 lb), 12 x 14 x 3.54 in Platform Size

Features

The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining an ABS plastic T71P indicator with painted steel bases and columns. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations

Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, DefenderTM 7000 Advanced Rectangular Scales offer a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations.

Standard Features

Painted steel base with ABS indicator
5,000-7,500d default resolution
Quick display of results using large dual line LCD with high-contrast white backlight
Temporary display of 10x readability in weighing mode using quick key press
Easy to operate with positive feedback 5-function key and alpha-numeric membrane keypad
Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing,
Checkweighing, Display Hold, and Accumulation.
255 item Library function
Internal power supply with universal line cord or 6 “C” batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
Includes RS232 interface with GMP/GLP data output including date and time, and external analog base input
Base and indicator connected using quick connect plug
Optional interfaces include DC relay control kit, AC relay control kit, 2nd RS232 and RS485/422

Model Number	D71P-15H-R1	D71P-30H-R1	D71P-60H-R1	D71P-60H-L2	D71P-100H-L2	D71P-150H-X2	D71P-300H-X2
Capacity x Readability	30lb x 0.005lb	60lb x 0.01lb	150lb x 0.02lb		250lb x 0.05lb	300lb x 0.05lb	600lb x 0.1lb
	480oz x 0.1oz	960oz x 0.2oz	2400oz x 0.5oz		4000oz x 1oz	4800oz x 1oz	9600oz x 2oz
	30lb : 0.1oz	60lb x 0.2oz	150lb : 0.5oz		250lb : 1oz	300lb : 1oz	600lb : 2oz
	15kg x 0.002kg	30kg x 0.005kg	60kg x 0.01kg		100kg x 0.02kg	150kg x 0.02kg	300kg x 0.05kg
	15000g x 2g	30000g x 5g	60000g x 10g		100000g x 20g	150000g x 20g	300000g x 50g
Maximum Displayed Resolution	1:7500	1:60000	1:7500		1:5000	1:7500	1:6000

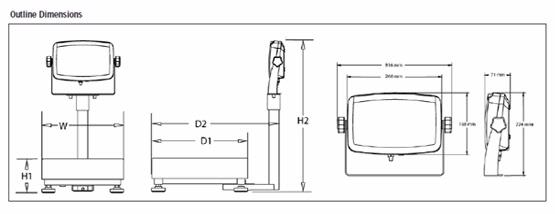

Scale Dimensions (W x H1 x D1 x D2)	12 x 3.7 x 23.6 x 14 x 18.7 in 305 x 95 x 600 x 355 x 475 mm			15.7 x 4.1 x 37 x 19.7 x 24.4 in 400 x 105 x 940 x 500 x 620 mm		16.5 x 4.9 x 37 x 21.7 x 26.4 in 420 x 125 x 940 x 550 x 670 mm
Shipping Dimensions (L x W x H)	19.3 x 16.1 x 17.3 in 490 x 410 x 440 mm			29.1 x 27.2 x 9.1 in 740 x 690 x 230 mm		29.5 x 30 x 9.1 in 750 x 710 x 230 mm
Net Weight	25.3 lb / 11.5 kg			49.1 lb / 22.3 kg		61.1 lb / 27.7 kg
Shipping Weight	30.2 lb / 13.7 kg			56.4 lb / 25.6 kg		67.7 lb / 30.7 kg
Column	13.8 in / 350 mm painted steel			26.8 in / 680 mm painted steel
Indicator Model	T71P
Construction	ABS plastic indicator, stainless steel removable weighing platform, painted steel column and base construction, aluminum loadcell
Safe Overload Capacity	150% of maximum capacity
Weighing Units	lb, oz, lb:oz, kg, g, custom unit
Modes	Static Weighing (single or dual range), Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold, Accumulation, Library
Display	6-digit, 7-segment LCD, 25mm/1 inch high primary digits, dual line, with high-contrast white LED backlight
Keypad	Positive feedback membrane keys, 5 function keys and alpha-numeric keypad
Protection	Dry use for scale, IP67 for loadcell
Stabilization Time	Within 2 seconds
Auto-zero Tracking	Off, 0.5, 1 or 3 d
Zeroing Range	2% or 100% of capacityy
Calibration Span	Span: 1kg or 1lb to 100% of capacity / Linearity: 3 or 5 point
Power	100-240 VAC / 50-60Hz internal universal power supply, 6 ‘C’ cell batteries (not supplied) with 80 hour life
Interface	RS232 and external input
Operating Temperature Range	14°F to 104°F / -10°C to 40°C
