Mark 10 Model TT05 Digital Torque Tester
Authorized Dealer
Series TT05 universal torque testers can be used for a range of applications up to 100 lbFin [11.5 Nm]. The stainless steel loading surface features a matrix of threaded holes, ideal for accommodating specialized fixtures and attachments. The testers’ rugged design and simple, intuitive operation allow for use in laboratory and production environments.

View Specifications Cart

call now

Specifications Chart

Mark 10 Model TT05 Digital Torque Tester

FREE UPS Ground Shipping
(within the 48 continental US States)

Model:

Series TT05 universal torque testers can be used for a range of applications up to 100 lbFin [11.5 Nm]. The stainless steel loading surface features a matrix of threaded holes, ideal for accommodating specialized fixtures and attachments. The testers’ rugged design and simple, intuitive operation allow for use in laboratory and production environments.

Accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.

The TT05 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon sample break, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for torque tool testing, tamper evident closure testing, and other applications.

Series TT05 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT05’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation

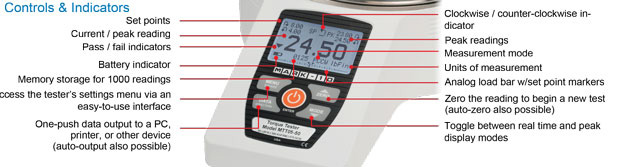

Features

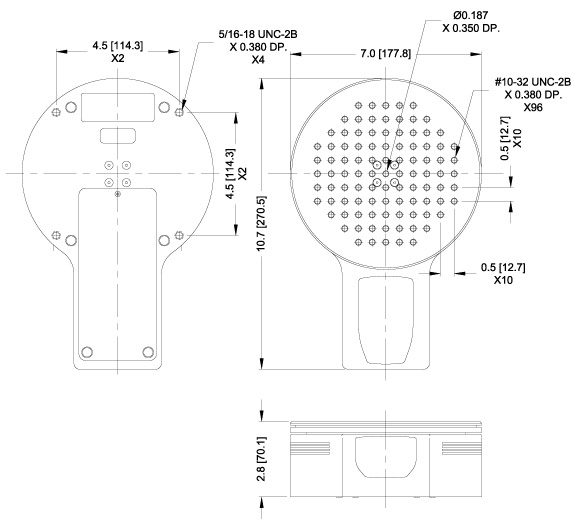

  • Stainless steel loading plate with threaded holes accommodates fixtures and attachments
  • USB, RS-232, Mitutoyo, and analog outputs
  • Automatic output, data storage, and zeroing upon sample break helps automate testing processes
  • First / second peak detection for torque tool testing, bottle cap testing, and other applications
  • 1,000-point data memory with statistics and outputs
  • Password protection prevents unauthorized changes
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • Programmable set point indicators and outputs for pass/fail determination
  • MESURTM Lite data collection software included
Model MTT05-12 MTT05-25 MTT05-50 MTT05-100
Price Mark-10 MTT05-12 Torque T
$1,353.75
buy now
Mark-10 MTT05-25 Torque T
$1,353.75
buy now
Mark-10 MTT05-50 Torque T
$1,353.75
buy now
Mark-10 MTT05-100 Torque
$1,353.75
buy now
lbFin 12 x 0.005 25 x 0.01 50 x 0.02 100 x 0.05
Ncm 135 x 0.1 290 x 0.2 570 x 0.5 1150 x 0.5
ozFin 192 x 0.1 400 x 0.2 800 x 0.5 1600 x 1
Nm 1.35 x 0.001 2.9 x 0.002 5.7 x 0.005 11.5 x 0.005
Accuracy: ±0.3% of full scale
Sampling Rate 7,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low
Battery Life Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units ozFin, lbFin, lbFft, Nm, Ncm
Outputs USB / RS-232: Configurable up to 115,200 baud.
UMitutoyo:: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog:±1 VCD, ±0.25% of full scale at capacity.
General purpose:Three open drain outputs, one input.
Set points:Three open drain lines.
Safe overload 150% of full scale (display shows “OVER” at 110% and above)
Weight 10.9 lb [4.9 kg]
Included items: Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration (certificate with data is available for an additional charge).
Environmental requirements 40 - 100°F, max. 96% humidity, non-condensating
Warranty 3 years (see individual statement for further details)
