Series 7 professional digital force gauges are designed with a number of sophisticated features for the most demanding tension and compression measurement applications, up to 500 lbF (2500 N). The gauges feature ±0.1% accuracy and a blazingly fast, industry-leading sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests.

Series 7 gauges include all the functions of Series 5 gauges, with several additional features, including high speed continuous data capture and storage, with memory for up to 5,000 readings at an acquisition rate of up to 14,000 Hz. The gauges also feature programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. Series 7 includes a coefficient of friction unit of measurement and user-defined unit of measurement. For productivity enhancement, the gauges also feature automatic data output, data storage, and zero functions upon the completion of the following events: break detection, averaging, external trigger, and 1st / 2nd peak detection.

Series 7 force gauges are directly compatible with Mark-10 test stands, including the ESM301, to permit functions such as break testing, tensile testing, compression testing, dynamic load holding, PC control capability, and many other applications.

Mark 10 Series 7 Digital Force Gauges

FREE UPS Ground Shipping
(within the 48 continental US States)

Model:

Mark-10 15-1004 MESURGauge Data Collection Software
Mark-10 15-1004 MESURGauge Data Collection Software, add $505.40
Mark-10 09-1163 RS-232, Cable for Series 4/5 Digital Force Gauges
Mark-10 09-1163 RS-232, Cable for Series 4/5 Digital Force Gauges, add $76.00
Mark-10 09-1165 Cable, USB, Series 5/4/3 to PC (included with new Series 5/4/3 gauges)
Mark-10 09-1165 Cable, USB, Series 5/4/3 to PC (included with new Series 5/4/3 gauges), add $28.50
Mark-10 08-1026 Replacement battery, 8.4V NiMH, for Series 5/4/3 gauges
Mark-10 08-1026 Replacement battery, 8.4V NiMH, for Series 5/4/3 gauges , add $20.00
Mark-10 AC1030 Replacment AC adapter/charger, 110V US
Mark-10 AC1030 Replacment AC adapter/charger, 110V US, add $42.75
Mark-10 AC1031 AC adapter/charger, 220V Europe
Mark-10 AC1031 AC adapter/charger, 220V Europe, add $42.75
Mark-10 AC1032 AC adapter/charger, 220V UK
Mark-10 AC1032 AC adapter/charger, 220V UK, add $42.75
Mark-10 AC1035 AC adapter/charger, 220V AUS
Mark-10 AC1035 AC adapter/charger, 220V AUS, add $42.75
Mark-10 09-1166 Gauge to Dual Banana Plug Analog Cable
Mark-10 09-1166 Gauge to Dual Banana Plug Analog Cable, add $76.00
Mark-10 09-1214 Gauge to Test Stand Crosshead Interface Cable
Mark-10 09-1214 Gauge to Test Stand Crosshead Interface Cable, add $128.25

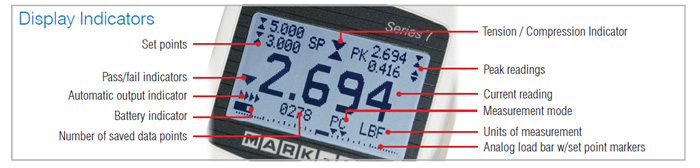

    Features
  • High-speed 14,000 Hz sampling rate
  • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
  • Individual data point memory for up to 5,000 data points, downloadable to a PC
  • USB, RS-232, Mitutoyo, and analog outputs
  • Sample break detection with auto functions, including stopping movement on the ESM301(L) test stand
  • 1st / 2nd peak detection
  • Automatic output / data storage / zeroing upon various event completions
  • 5 units of measurement, plus Coefficient of Friction, and user-defined unit with configurable name
  • Programmable footswitch command string
  • Programmable set points, with indicators and outputs
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Password protection, configurable for individual keys and calibration

Focus on Engineering: Specialized Gauge Functions Series 7 gauges feature several functions typically found in more complex instruments, such as materials testers, data acquisition systems, and PLCs. The following unique features are highlighted:


High Speed Data Capture & Storage

Series 7 can capture and store up to 5,000 continuous data points at a rate of up to 14,000 readings per second. This unique function is ideal for measuring switch activation forces, sharp breaks, and other short-duration applications. Configurable start and stop triggers are provided. The data acquisition rate is variable and can be slowed to also capture longer events, such as structure relaxation, material expansion, and others

Data from the storage buffer can be exported to data collection software such as MESURTMgauge for further analysis and graphing. Using a Series 7 gauge could replace cumbersome and expensive data acquisition hardware and software.


Footswitch Command String

Integrate your footswitch / automation system with a Series 7 gauge to improve testing ergonomics and efficiency; no need for multiple key presses. Up to three steps may be programmed for a single footswitch activation.

Select from several commands, including request peak reading, zero the display, save to memory, and others. Time delays can be inserted between each step.


Automatic Data Output / Save / Zero / I/O Pin Toggle

Upon completion of several event types, the Series 7 can perform the following productivity-enhancing functions

  • Automatically save the peak reading to memory
  • Transmit the peak reading via USB, RS-232, or Mitutoyo output
  • Zero the display
  • Toggle an I/O pin, for example to stop movement of an ESM301/ESM301L test stand.
Applicable events include
  • Sample break detection (also applicable to samples which slip, click, or otherwise reach a peak, then fall).
  • Completion of an averaging sequence
  • External trigger (ex. switch activation).
  • 1st / 2nd peak capture (ex. tensile testing).

  • To measure the torque produced by pressing on a lever in a mechanical assembly, configure the multiplier based on the length of the lever, thereby converting a unit such as N into Ncm
  • To measure the pressure produced by a circular compression plate on a foam sample, configure the multiplier based on the area of the plate, thereby converting a unit such as lbF into psi.
User-defined Unit of Measurement

Series 7 gauges display 6 standard units of measurement. One additional user-defined unit is provided for unique applications. A base unit is specified, along with a multiplier, and 5-character name. Typical applications


Model M7-012 M7-025 M7-05 M7-2 M7-5 M7-10 M7-20 M7-50 M7-100 M7-200 M7-500
Image Mark 10 Series 5 - M4-012 Mark 10 Series 5 - M4-025 Mark 10 Series 5 - M4-05 Mark 10 Series 5 - M4-2 Mark 10 Series 5 - M4-5 Mark 10 Series 5 - M4-10 Mark 10 Series 5 - M4-20 Mark 10 Series 5 - M4-50 Mark 10 Series 5 - M4-100 Mark 10 Series 5 - M4-200 Mark 10 Series 5 - M4-500
Price $2,303.75
buy now
$2,303.75
buy now
$1,995.00
buy now
$1,805.00
buy now
$1,805.00
buy now
$1,805.00
buy now
$1,805.00
buy now
$1,805.00
buy now
$1,805.00
buy now
$1,995.00
buy now
$1,995.00
buy now
Capacity X Resolution lb 0.12 x 0.00002 lb 0.25 x 0.00005 lb 0.5 x 0.0001 lb 2 x 0.0005 lb 5 x 0.001 lb 10 x 0.002 lb 20 x 0.005 lb 50 x 0.01 lb 100 x 0.02 lb 200 x 0.05 lb 500 x 0.1 lb
Capacity X Resolution oz 2 x 0.0005 oz 4 x 0.001 oz 8 x 0.002 oz 32 x 0.01 oz 80 x 0.02 oz 160 x 0.05 oz 320 x 0.1 oz 800 x 0.2 oz 1600 x 0.5 oz 3200 x 1 oz 8000 x 2 oz
Capacity X Resolution kg - - - 1 x 0.0002 kg 2.5 x 0.0005 kg 5 x 0.001 kg 10 x 0.002 kg 25 x 0.005 kg 50 x 0.01 kg 100 x 0.02 kg 250 x 0.05 kg
Capacity X Resolution g 50 x 0.01 g 100 x 0.02 g 250 x 0.05 g 1000 x 0.2 g 2500 x 0.5 g 5000 x 1 g 10000 x 2 g 25000 x 5 g 50000 x 10 g - -
Capacity X Resolution N 0.5 x 0.0001 N 1 x 0.0002 N 2.5 x 0.0005 N 10 x 0.002 N 25 x 0.005 N 50 x 0.01 N 100 x 0.02 N 250 x 0.05 N 5500 x 0.1 N 1000 x 0.2 N 2500 x 0.5 N
Capacity X Resolution kN - - - - - - - - - 1 x 0.0002 kN 2.5 x 0.0005 kN
Capacity X Resolution mN 500 x 0.1 mN 1000 x 0.2 mN 2500 x 0.5 mN - - - - - - - -
Accuracy ±0.1% of full scale
Sampling rate 14,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Battery life Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units lbF, ozF, gF, kgF, N, kN, mN (depending on model)
Outputs USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices
Analog: ±1 VCD, ±0.25% of full scale at capacity
General purpose: Three open drain outputs, one input
Set points: Three open drain lines
Safe overload 150% of full scale (display shows “OVLD” at 110% and above)
Weight (gauge only) 1.0 lb [0.45 kg] 1.2 lb [0.54 kg]
Included items Carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration with data.
Warranty 3 years (see individual statement for further details)
Model M7-012 M7-025 M7-05 M7-2 M7-5 M7-10 M7-20 M7-50 M7-100 M7-200 M7-500
Included Extension Rods G1024 G1031
Included Cone G1026 G1033
Included Chisel G1025 G1032
Included V-Groove G1027 G1034
Included Flat G1029 G1036
Included Hook G1028 G1038 G1035
Included Coupling - G1039 G1037

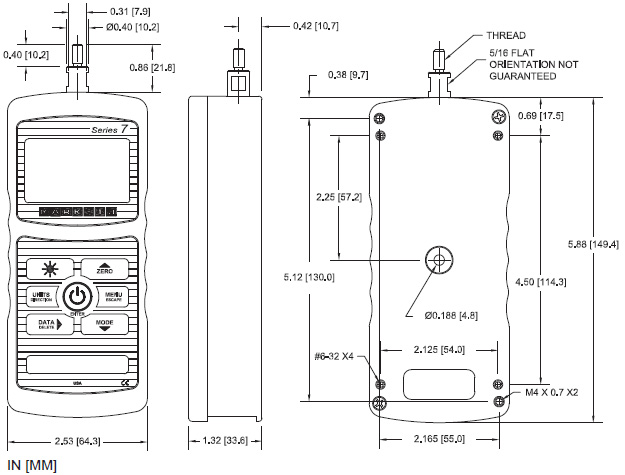

Dimensions
