Mark 10 Series 3 Digital Force Gauges

Force Measurement >> Mark-10

View Spec Cart View Grips View Test Stands View Mark 10 Force Gauge Comparison Chart Series 3 digital force gauges are designed for tension and compression force testing in numerous applications from 0.12 lbF to 500 lbF (0.5 N to 2500 N). The gauges feature a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for data collection purposes.

Mark 10 Series 3 Digital Force Gauges FREE UPS Ground Shipping (within the 48 continental US States) Model: Select M3-012 $1,220.75 M3-025 $1,220.75 M3-05 $850.25 M3-2 $688.75 M3-5 $688.75 M3-10 $688.75 M3-20 $688.75 M3-50 $688.75 M3-100 $688.75 M3-200 $850.25 M3-500 $850.25    Mark-10 NIST Certifcate of Calibration with data for Series 2 or for Series 3 gauges (ordered with a new gauge), add $80.75 Mark-10 08-1026 Replacement battery, 8.4V NiMH, for Series 5/4/3 gauges , add $20.00 Mark-10 AC1003 Double handle grip for Series 3/MG, add $114.00 Mark-10 AC1003-1 Single handle grip for Series 3/MG, add $95.00

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force

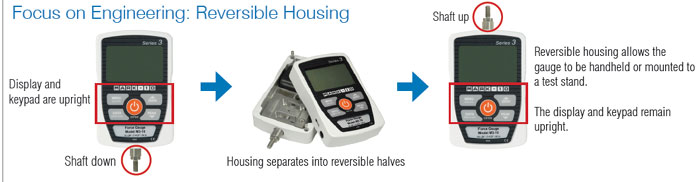

An ergonomic, reversible aluminum housing allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 3 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.

The gauges include MESUR Lite data acquisition software. MESUR Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Features

• High-speed 2,000 Hz sampling rate
• USB data output
• Ultra-compact size
• Large backlit graphic display
• Programmable set points with pass/fail indicators
• Live load bar graph with set point markers
• Peak readings and set points always displayed
• Configurable audio alarms and key tones
• 4 selectable units of measurement
• MESUR Lite data collection software included

Model	M3-012	M3-025	M3-05	M3-2	M3-5	M3-10	M3-20	M3-50	M3-100	M3-200	M3-500
Price	$1,220.75	$1,220.75	$850.25	$688.75	$688.75	$688.75	$688.75	$688.75	$688.75	$850.25	$850.25
Capacity X Resolution lb	0.12 x 0.0001	0.25 x 0.0002	0.5 x 0.0005	2 x 0.002	5 x 0.005	10 x 0.01	20 x 0.02	50 x 0.05	100 x 0.1	200 x 0.2	500 x 0.5
Capacity X Resolution kg	-	-	-	1 x 0.001	2.5 x 0.002	5 x 0.005	10 x 0.01	25 x 0.02	50 x 0.05	100 x 0.1	250 x 0.2
Capacity X Resolution g	50 x 0.05	100 x 0.1	250 x 0.2	-	-	-	-	-	-	-	-
Capacity X Resolution N	0.5 x 0.0005	1 x 0.001	2.5 x 0.002	10 x 0.01	25 x 0.02	50 x 0.05	100 x 0.1	250 x 0.2	500 x 0.5	1000 x 1	2500 x 2
Accuracy	±0.3% of full scale ±1 digit
Sampling Rate	2,000 Hz
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Battery life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units	lbF, gF, kgF, N (depending on model)
Outputs	USBBy pressing DATA key only. Configurable up to 115,200 baud.
Configurable settings	Digital filters, USB output, automatic shutoff, default settings, key tones, audio alarms, calibration.
Safe overload	150% of full scale (display shows “OVER” at 110% and above)
Weight (gauge only)	0.7 lb [0.33 kg]									0.9 lb [0.41 kg]
Included items	Carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration (certificate with data is available for an additional charge).
Warranty	3 years (see individual statement for further details)
Model	M3-012	M3-025	M3-05	M3-2	M3-5	M3-10	M3-20	M3-50	M3-100	M3-200	M3-500
