Mark-10 R05 Push / Pull Sensors	Authorized Dealer

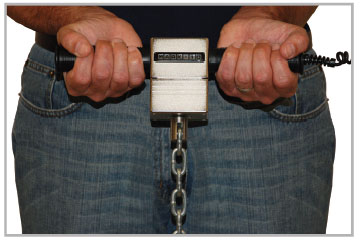

Series R05 fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements. Threaded holes are supplied to accommodate various mounting configurations and attachments. For up to 500 lbF [2,500 N].
Force Measurement >> Mark-10

View Specifications Cart View Test Stands Specifications Chart

Mark-10 R05 Push / Pull Sensors FREE UPS Ground Shipping (within the 48 continental US States) Model: Select MR05-500 $831.25

Series R05 fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements. Threaded holes are supplied to accommodate various mounting configurations and attachments. For up to 500 lbF [2,500 N]. Compatible with Mark- 10 model 5i and 3i indicators (sold separately) through unique Plug & TestTM technology.

• Compatible with the 5i and 3i digital indicators
• Unique Plug & TestTM connector holds all calibration and configuration data
• Rugged aluminum housing
• Measures push and pull force
• Accuracy: ± 0.15% of full scale + indicatorWeight: 2.0 lbs (0.9 kg)
• Warranty: 3 years

Model		MR05-500
		$831.25
Capacity x Resolution With Model 3i	lbF	500 x 0.5
	gF	-
	kgF	250 x 0.2
	N	2500 x 2
Capacity x Resolution With Model 5i	lbF	500 x 0.2
	ozF	8000 x 5
	kgF	250 x 0.1
	N	2500 x 1
	kN	2.5 x 0.001
