Imada Data Acquisition Software

Imada Data Acquisition Software
SW-1 is a highly customized Excel spreadsheet specifically designed for capturing and analyzing real-time data from Imada gauges with an RS-232C port. .
sw-1.JPG SW-1 DPS, DPSH More ..
SW-2 DPS, DPSH, equipped w/ Distance Meter More ..
SW-1S i-series, DI-1M, DI-3N, DI-4B, DI-5N, DSD, DSW More ..
SW-1SV-USB i-series, DI-1M, DIS, DI-4B, DID, DIW w/ USB More ..
SW-2X Z2, Z2H, Z2S, ZP, ZPH, ZPS More ..
ZR-E ZP Z2, Z2H, Z2S, ZP, ZPH, ZPS equipped w/ Distance Meter More ..
ZT-RL Light ZTS, ZTA More ..
ZT-RS Standard ZTS, ZTA More ..
ZT-RP Pro ZTS, ZTA More ..

Imada Data Acquisition Software

Optional:

Imada DB-1 Data Button, Add $145.00
Imada DB-2X 2-Channel Data Button, Add $245.00
Imada DB-4 Digimatic Data Button, Add $145.00

Cables

Imada CB-51 Coil Cable (HTG2 and HTGS ) , Add $75.00
Imada CB-101 Analog Cable (DPS, DS2) , Add $70.00
Imada CB-104 Analog Cable (Z2, Z2H, Z2S, ZP, ZPH, ZPS, HTG2, DTX2) , Add $70.00
Imada CB-108 Analog Cable (ZTS, ZTA) , Add $75.00
Imada CB-203 1 RS-232 Cable (DPS, DS2) , Add $75.00
Imada CB-204 RS-232 Cable (Z2, Z2H, Z2S, ZP, ZPH, ZPS, HTG2, DTX2) , Add $75.00
Imada CB-208 RS-232 Cable (ZTS, ZTA) , Add $75.00
Imada CB-301 1 Digimatic Cable (DPS, DS2) , Add $70.00
Imada CB-304 Digimatic Cable (Z2, Z2H, Z2S, ZP, ZPH, ZPS, HTG2, DTX2) , Add $70.00
Imada CB-308 Digimatic Cable (ZTS, ZTA) , Add $75.00
Imada CB-501 Force Control Cable (MX, MH) , Add $75.00
Imada CB-504 Force Control Cable (plus SPC for MX, MH) , Add $150.00
Imada CB-508 Force Control Cable (MX / MH — ZTS / ZTA) , Add $75.00
Imada CB-518 Force Control Cable (MX2 / EMX — ZTS, ZTA) , Add $150.00
Imada CB-704 Force Control Cable (MX2 / EMX — ZP / ZPH, Z2 / Z2H) , Add $150.00
Imada CB-707 Force Control Cable (Y-cable for MX2 / EMX — ZP / ZPH, Z2 / Z2H) , Add $175.00

SW-1X

SW-1X Force Data Acquisition Software is a highly customized Excel spreadsheet specifically designed for capturing and analyzing real-time data from Imada gauges with an RS-232C port.

SW-1X allows real time data from RS-232C instruments to be input directly into any Windows program – including Microsoft Excel. SW-1X inputs gauge readings in real time and provides a running log of all force measurements along with a chart of the data as well as statistical information including Min, Max, Mean, Median, Standard Deviation, Average Deviation and Variance.

Complete control of the gauge is provided through a set of “buttons” on the spreadsheet that enable easy editing of the sampling rate, force measurement units, peak/real time, tare and power off.

Other features include a memory download option for ZTS and ZTA gauges only. If desired, the entire stack can be saved to disk, analyzed or cleared. Because all data is entered directly into a standard Excel spreadsheet, you are virtually unlimited in your ability to analyze your force gauge data using all of the powerful tools available in Excel.

Hardware Requirements: Imada Gauge with RS-232C serial port, CB-208 cable, a Pentium 4 or equivalent with 1GB RAM or better, and approximately 100 MB hard disk space.

Software Requirements: Windows XP or later and Excel 2003 or later.

Optional DB-1 Data Button
  • Send data to the PC spread sheet with the touch of a button
  • Zero the gauge
  • Select different acquisition rates
  • See tab below for more information

SW-2X

Force vs. Displacement Data Acquisition

SW-2X Data Acquisition Software has the capability to graph force vs. displacement readings in real time (2 data per second maximum). SW-2X is a highly customized Excel spreadsheet specifically designed for capturing and analyzing real-time data from Imada gauges with an RS-232C port. An Imada test stand with distance meter (type S) is required for measuring displacement. The software requires an Imada force gauge, as well as an Imada test stand with standard distance meter (-S). SW-2X allows real time data from RS-232C instruments to be input directly into any Windows program – including Microsoft Excel.

Complete control of the gauge is provided through a set of buttons on the spreadsheet that enable easy editing of the sampling rate, and force measurement units. All data is entered directly into a standard Excel spreadsheet, so you are virtually unlimited in your ability to analyze your force gauge data using all of the powerful tools available in Excel.

Hardware Requirements: Imada digital force gauge, Imada test stand with digital distance meter (type S), CB-203/204/208 cable, #905691 distance meter output cable, DB-2X Data Button, RA-USB Serial to USB adapter, an Intel Core2Duo or equivalent with 1GB RAM or better, and approximately 100 MB hard disk space.

Software Requirements: Windows XP or later and Excel 2003 or later.

Optional DB-2X Data Button
DB-2X is a simple, compact, two channel interface that enables the user to send measurement data to a PC running SW-2X Imada data acquisition software. Use of DB-2X requires an Imada test stand with -S distance meter, #905691 distance meter cable, Imada force gauge, force gauge RS-232 output cable and a Windows PC with SW-2X software.

Single data mode
This mode simplifies peak measuring tests because it also ‘zeros’ the gauge after sending the data to the computer, thus eliminating the need to reset manually for each test.

Timer acquisition mode
allows users to select a variable timer from 0.5 seconds to 999 seconds. Start data acquisition by clicking the button, then click again to stop, which simplifies start/stop functions by eliminating the need to use computer mouse and screen to control testing. This allows users to focus on the testing rather than the PC and the data acquisition spreadsheet.

As a visual confirmation, the LED lamp will light up for both single data and automatic acquisition modes when data is being sent to the computer.

No external power supply is needed as power is supplied through the PC. Connect Imada gauges to the data input button with correct cable for your force gauge and the computer to the data button with a 6' DB9 serial cable (included with DB-2X).

DB-2X can also be initiated with a remote switch.


SW-1SV-USB

SW-1SV-USB Torque Data Acquisition Software is a highly customized Excel spreadsheet specifically designed for capturing and analyzing peak and first peak data from torque testers with either RS-232 or USB ports.

SW-1SV-USB captures peak torque or first peak readings and provides a running log of all torque measurements along with a chart of the data as well as statistical information including Min, Max, Mean, Median, Standard Deviation, Average Deviation and Variance.

If desired, the entire stack can be saved to disk, analyzed or cleared. Because all data is entered directly into a standard Excel spreadsheet, you are virtually unlimited in your ability to analyze your torque tester data using all of the powerful tools available in Excel.

Windows PC Software Requirements: Windows XP or later and Excel 2003 or later


ZR-E ZP Recorder Data Acquisition Software

ZR-E – ZP Recorder High Performance

ZP Recorder force data analysis software is designed to interface with Imada ZP and ZPH Series (USB) force gauges to record and process the 1,000 data per second transmitted by the gauge. Each data point incorporates both a force and time value, so force profiles can be analyzed for much more than just the peak. Set units of measurement and zero the gauge from the software. Record in either Manual or Automatic modes. Automatic mode can be configured to save data for both destructive and nondestructive testing.

Force Data Analysis Tools

The recorded data is displayed as a graph and statistics are automatically generated. Zoom into any part of the graph to examine individual data points at intervals of 1mS. Mouse over any data points to display the force and time values.

Further data analysis can be done by selecting part of the graph to generate statistics for that time interval. Detect the first peak for a specific threshold for the whole graph or just a part of it. Compare and align multiple graphs which are color-coded for clear display. Save graphs or export data to CSV format. ZP Recorder offers new tools to users requiring the latest advancements in force data analysis.

Hardware/Software Requirements
  • PC: Pentium 4 equivalent with USB 1.1 or 2.0 port (USB 3.0 not supported)
  • Operating System: Microsoft Windows XP, Vista, 7
  • Gauge: Imada Force Gauge Models ZP, ZPH and ZPS
  • Torque Gauge: MTG
  • Click for Complete Specifications for:
  • ZP USB Digital Force Gauge
  • ZPH High Capacity USB Digital Force Gauge

ZT Force Recorder Data Acquisition Software

Force Recorder Data Acquisition Software

Light: ZT-RL Standard: ZT-RS Pro: ZT-RP

Force Recorder force data analysis software interfaces with Imada ZT Series (USB) force gauges. Program, save or import saved gauge programming from the software.

Force Recorder captures and processes 2,000 data per second (not just the peak) and generates force vs. time profile graphs with statistics. In addition to force vs. time, Force Recorder Pro captures force vs. displacement data using a ZTA gauge. Zoom into any part of the graph to see individual data points at intervals of 0.5 mS. Mouse over data points to display their force value.

Further analysis can be done on the entire range or by selecting part of the graph to detect the first peak or generate statistics within that time interval. Compare and align multiple graphs. Save graphs or export data to CSV format.

Force Recorder offers a new toolbox to analyze force data.

Hardware/Software Requirements
  • OS: Windows XP / Vista / 7 (32bit/64bit)
  • CPU: Pentium 4 (1GHz or higher) or later
  • RAM: 2GB or greater
  • Hard Disk: 10GB minimum (dependent on test variables and duration)
  • Supported Platform: .NET Framework 4.0 Client Profile or later*
  • Display Resolution: 1024 x 768 or greater
  • Force Gauge: Digital Force Gauge ZT series
  • Port: USB 1.1 / 2.0 (Not compatible with USB 3.0)
  • Cable: Standard USB A to Mini-B cable (comes with ZT gauge)
  • * Windows 7 includes .NET Framework 4.0
Version ZT-RL Light ZT-RS Standard ZT-RP Professional
Graph Type Force vs. Time Force vs. Time Force vs. Time
Force vs. Displacement (with ZTA gauge & acc.)
Data transfer rate 2000 data/sec 2000 data/sec 2000 data/sec
Maximum Data Points 7.2 million 7.2 million 7.2 million
Graph Overlay Function - YES YES
Trigger Function - YES YES
Point Marking - YES YES
Border Line Function - YES YES
Graph Editing - YES YES
Graph Navigation YES YES YES
Statistics Output YES YES YES
Comment Function YES YES YES
Note Function YES YES YES
Print YES YES YES
Program Gauge Functions YES YES YES

DB-1

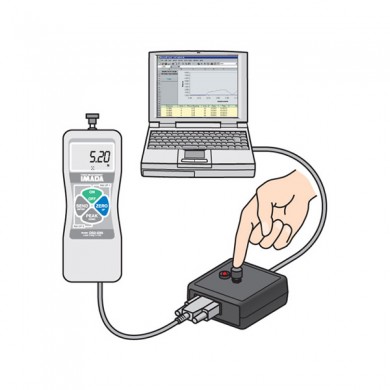

DB-1 is a simple, compact, one channel interface that enables the user to send measurement data to a PC running SW-1, Imada data acquisition software, or other software.

Single data mode
This mode simplifies peak measuring tests because it also ‘zeros’ the gauge after sending the data to the computer, thus eliminating the need to reset manually for each test.

Automatic acquisition mode
allows users to select different acquisition rates from 20 data/second to 1 data/999.9 seconds. Start data acquisition by clicking the button, then click again to stop, which simplifies start/stop functions by eliminating the need to use computer mouse and screen to control testing. This allows users to focus on the testing rather than the PC and the data acquisition spreadsheet.

As a visual confirmation, the LED lamp will light up for both single data and automatic acquisition modes when data is being sent to the computer.

No external power supply is needed as power is supplied through the PC. Connect Imada gauges to the data input button with cable CB203 and the computer to the data button with a 6' DB9 serial cable (included with DB-1).

  • DB-1 can also be initiated with a remote switch.
  • DB-4 data button is available for Digimatic output.

DB-2X DATA INPUT BUTTON

DB-2X is a simple, compact, two channel interface that enables the user to send measurement data to a PC running SW-2X Imada data acquisition software. Use of DB-2X requires an Imada test stand with -S distance meter, #905691 distance meter cable, Imada force gauge, force gauge RS-232 output cable and a Windows PC with SW-2X software.

Single data mode

This mode simplifies peak measuring tests because it also ‘zeros’ the gauge after sending the data to the computer, thus eliminating the need to reset manually for each test.

Timer acquisition mode allows users to select a variable timer from 0.5 seconds to 999 seconds. Start data acquisition by clicking the button, then click again to stop, which simplifies start/stop functions by eliminating the need to use computer mouse and screen to control testing. This allows users to focus on the testing rather than the PC and the data acquisition spreadsheet.

As a visual confirmation, the LED lamp will light up for both single data and automatic acquisition modes when data is being sent to the computer.

No external power supply is needed as power is supplied through the PC. Connect Imada gauges to the data input button with correct cable for your force gauge and the computer to the data button with a 6 DB9 serial cable (included with DB-2X).

DB-2X can also be initiated with a remote switch.
