Imada LV-220 Vertical Manual Force Test Stand

LV-220 Vertical Manual Lever Test Stand
LV-220S (gauge sold seperately)

Imada Vertical Manual Test Stands
Model LV-220
currently in stock
Shipping Weight: 30 lbs. (estimate shipping cost)
Other Imada Test Stands
Other Force Testing Products

This Month Only! FREE UPS Ground Shipping on ALL Imada test stands!

Quantity:

Discontinued



  with distance meter without distance meter
Compression Tester
LV-220CS
LV-220C
Tension Tester
LV-220TS
LV-220T


Features

  • Standard Compression and Tension models both operate with a single downward lever stroke
  • Maximum load 220 lbs (100 kg)
  • Stroke 4"
  • Maximum clearance 5"  (or 10" with optional extender plate)

Distance Meter Specifications

Display Push button for inch/mm, zero set and on/off
Resolution 0.0005"/0.01 mm
Accuracy 0.1% of reading or 0.005"/0.1mm, whichever is greater

Optional Data Buttons and Data Software
Imada DB-Series data input buttons work with Imada SW software to automate data collection from Imada force or torque gauges. Enter peak measurements into the spreadsheet and "zero" the gauge with a touch of the button. Minimize computer time and mouse useage
Click here for more info...

Movel LV-220S/LV-220 Vertical Manual Lever Test Stands provide maximum versatility and reliability. LV-220S is equipped with a precision digital distance meter. The stands will accommodate any of the standard range Imada force gauges. The optional extender plate increases clearance to 10" for larger samples. LV-220/LV-220S are perfect for crimp tests and other applications. Lever action provides quick, consisten testing.

The compression version (C type) employs a return spring for easier sample placement and convenience in testing.

The LV-220 test stands will accept any of the standard capacity Imada force gauges while providing a convenient, reliable, and easy to use means of performing consistent force measurements. The LV-220S model is equipped with a digital distance meter. The standard compression model can be converted to tension, and the unique modular design of this stand allows the force gauge mounting plate to be located on either the front of the stand or on the back for virtually unlimited clearance.  The optional extender plate will double the front clearance.

Imada LV-220Imada LV-220 Diagram
LV-220S shown with extender plate

top



Imada NLV-220 Vertical Manual Lever Force Test Stand

NLV-220 Vertical Manual Lever Test Stand
NLV-220S (gauge sold seperately)

Imada NLV-220 Vertical Manual Lever Test Stand

FREE UPS Ground Shipping on ALL Imada test stands

Model:

Shipping Wt: 30 lbs.

Test stand does not include force gauge
Model Features
 NLV-220-C  Configured for compression. Pull the lever arm down and toward you and the gauge moves down to create compression.
 NLV-220-C-S  Configured for compression and has a distance meter.
 NLV-220-T  Configured for tension. Pull the lever arm down and toward you and the gauge moves up to create tension.
 NLV-220-T-S  Configured for tension and has a distance meter.

Model NLV-220 vertical manual lever test stands provide maximum versatility and reliability. Lever action provides quick, consistent testing. A pull down on the lever creates either compression or tension, depending on the model. A return spring resets the lever on compression models. The stands will accommodate any of the standard range Imada force gauges and can be equipped with a precision digital distance meter. The optional extender plate increases clearance to 14" for larger samples. NLV-220 is perfect for compression and tension applications where rapid action is desired.

  • Maximum load 220 lbf (100 kgf)
  • Stroke 2"
  • Maximum clearance 9" (or 14" with optional extender plate)
  • Optional digital distance meter

AP-002 Adapter Plate is available to mount most other force gauges to IMADA test stands.

Distance Meter Specifications
Display Push button for inch/mm, zero set and on/off
Resolution 0.0005"/0.01mm
Accuracy ±0.01"/0.2mm

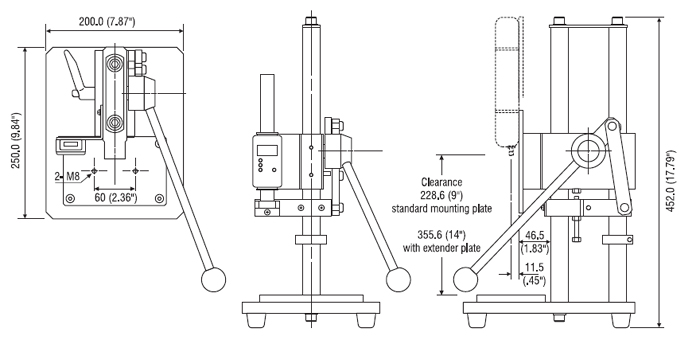

Dimensions
