Imada Cedar DIS-RL Torque Screwdriver Digital Lightweight Tester
Cedar Imada DIS-RL, Digital Torque Tester/ Screwdriver is ergonomically designed, extremely lightweight yet good for use as a production tool. It tightens or loosens screws up to 90 lbf-in. and can be used in difficult to reach places. Torque controlled screwdrivers can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. more ...

View Specifications Chart

All Imada instruments have special price incentives. Please phone us at 800-832-0055 for the best pricing on Imada gauges.

Imada Cedar DIS-RL, Torque Screwdriver
Digital Lightweight Tester
FREE UPS Ground!
(48 Continental United States)
currently in stock
Shipping Weight: 10 lbs. (estimate shipping cost)
Other Imada Force Gauges
Other Torque Testing Products
Other Force Testing Products


Imada SW-1SV-USB Torque Data Acquisition Software , add $199.00

Imada AP-100L L-Bracket Mounting Plate, add $185.00





Digital Torque Tester/ Screwdriver is ergonomically designed, extremely lightweight yet good for use as a production tool. It tightens or loosens screws up to 90 lbf-in. and can be used in difficult to reach places. Torque controlled screwdrivers can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed.

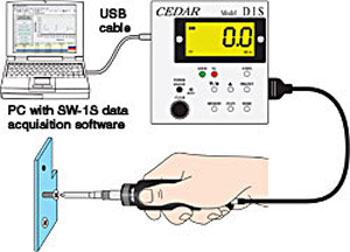

This tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No?Go testing and also provides peak and continuous data for SPC (statistical process control) via the USB port.

DIS-RL substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies. Sold in kit form including display unit, screwdriver with cable, AC adapter/charger and carrying case.

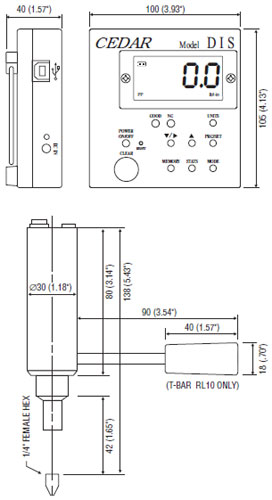

Imada Cedar DIS-RL Torque Screwdriver Digital Lightweight Tester Specs:

DIS-RL Ranges Accuracy: ±0.5% F.S. ±1 LSD
Model DIS-RL05 DIS-RL2 DIS-RL10
Price DIS-RL10
$1,575.00
buy now
DIS-RL10
$1,120.00
buy now
DIS-RL10
$1,120.00
buy now
Capacity
lbf-in 0.020-4.500 0.10-17.40 1.0-90.0
kgf-cm 0.020~5.000 0.10-20.00 1.0-100.0
N-cm 0.20~50.00 1.0-200.0 10-1000
N-m 0.10-10.00

Imada DIS-RL Digital Torque Tester / Screwdriver:

Features:
  • Programmable High/Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
  • Peak, Real Time, Peak Down and Continuous Output measuring modes (selectable)
  • Selectable units lbf-in, Kgf-cm, N-cm and N-m
  • USB data output (peak data only)
  • Statistics: number of data, Max, Min, Avg
  • CW, CCW ratchet and fixed operation
  • 800 data memory for recall or for SPC download
  • Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
  • Zero reset button on the driver for easy operation
  • Ergonomic, light weight, rugged metal construction
  • Runs on internal NiCad batteries (8 hour use)
  • DIS-RL05 includes 4mm stepless CW one-way clutch Phillips tip, 4mm Phillips tip, AC?charger and carrying case
  • DIS-RL2/10 with ratchet (CW, CCW and fixed operation) includes 2-1/4" Phillips tips, AC charger and carrying case
