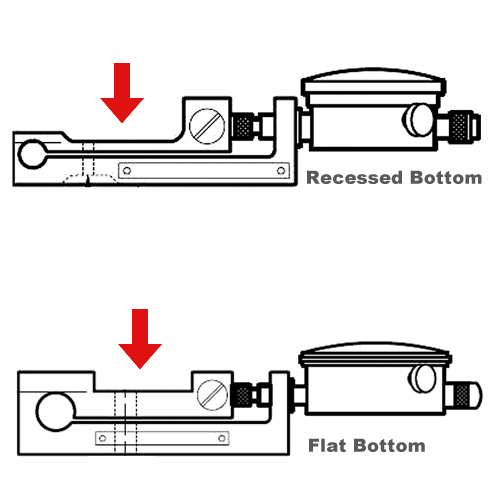

Dillon Model "U" Force Gauges with Recessed Bottom
Or Flat Bottom
Proven accuracy and ruggedness sets our mechanical force gauges apart in the force measurement industry. The "D" shaped deflection beam is the heart of the Force Gauge system. Highly engineered materials with close machining tolerances and proper heat treatment provide optimum strength and spring characteristics. Ideal for stand alone force applications or as the load defining component of a much larger system.
Since 1937, Dillon Force Gauges have been chosen for the jobs where only the best will do. The Dillon Model "U" Force Gauge is an accurate (±1% of full range) mechanical compression-measurement instrument.

Included with Dillon Model "U" Force Gauge:
Each Gauge comes with a Force Gauge Assembly, and a Carrying Case.

The Recessed Bottom Gauge comes with 2 (two) compression load fittings of choice, (One for the top and one for the bottom) while the Flat Bottom Gauge comes with 1 (one) compression fitting of choice.


call now
Dillon Model "U" Force Gauges with a Recessed or Flat Bottom

Price From: $816.00

FREE UPS Ground Shipping
(48 US States Only)

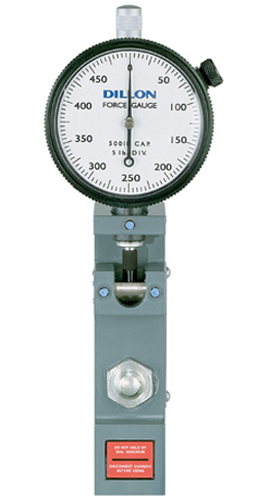

Low-Range Flat-Bottom
Model "U" Force Gauge

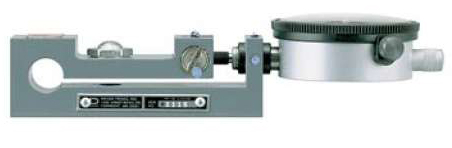

High-Range Flat-Bottom
Model "U" Force Gauge



View Compression Fittings

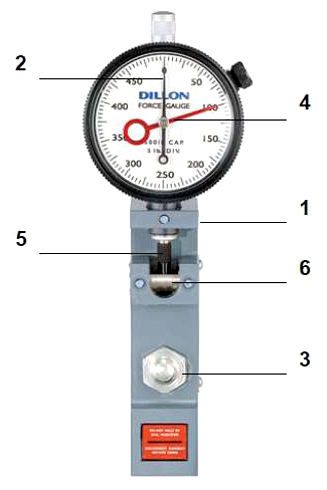

Dillon Model "U" Force Gauge Parts Chart

    • 1 —   Deflection Beam


    • 2 —   Indicator with zero at 6:00 position


    • 3 —   Pressure Fitting


    • 4 —   Maximum Pointer (Optional)


    • 5 —   Indicator Plunger


    • 6 —   Slanted Anvil

Configuration Options

Dillon Model U Force Gauge Low-Range RECESSED Bottom comes with:
  • Force Gauge Assembly
  • Carrying Case
  • Two (2) Compression Load Fittings of Choice

Dillon Model U Force Gauge Low-Range FLAT Bottom comes with:
  • Force Gauge Assembly
  • Carrying Case
  • One (1) Compression Load Fittings of Choice

Dillon Model U Force Gauge High-Range FLAT Bottom comes with:
  • Force Gauge Assembly
  • Carrying Case
  • One (1) Compression Load Fittings of Choice

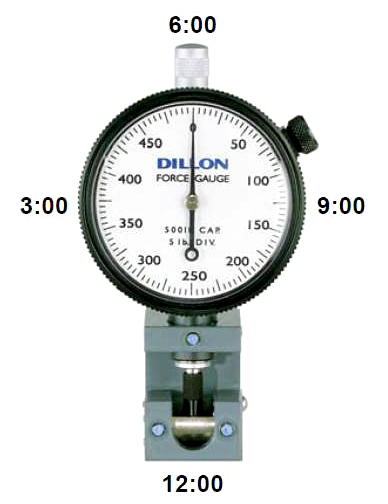

  • Zero Position The zero position on the indicator dial can be factory positioned at 12 o'clock, 3 o'clock, 6 o'clock, or 9 o'clock. The standard position is the 6 o'clock position
  • Maximum Pointer Model "U" Force Gauges can include a maximum pointer which remains at peak load until it is reset.
  • Shockless Dial Indicator Offers added protection in applications where force is applied or released rapidly.
  • Dial Orientation The Dial indicator can be factory positioned at 0°(Standard), 90°, 180°, 270°, clockwise. The picture on the left shows the standard dial position. (THIS DOES NOT APPLY TO 10,000lbs/5000kg units).


  • NOTE: The Maximum Pointer and The Shockless Dial Indicator cannot be offered on the same unit.

    Accuracy: ±1% of full range




Part Numbers & Weight Capacities for The Dillon Model "U" Force Gauge (Low Range Flat-Bottom)
When Ordering, Please Specify the One (1) Fitting of Choice from Section 1
Pounds (lb) Kilograms (kg)
Part Number Capacity x Dial Divisions Price Part Number Capacity x Dial Divisions Price
30354-0017 25lb x 0.25 (lb) $2055.00
30354-0066 10kg x 0.10 (kg) $2080.00
30354-0033 100lb x 1 (lb) $1970.00
30354-0082 50kg x 0.50 (kg) $1950.00
30354-0058 250lb x 2.50 (lb) $1950.00
30354-0090 100kg x 1 (kg) $2005.00
Part Numbers & Weight Capacities for The Dillon Model "U" Force Gauge (High-Range Flat-Bottom)
When Ordering, Please Specify the One (1) Fitting of Choice from Section 1 , Section 2 , Section 3
Pounds (lb) Kilograms (kg)
Part Number Capacity x
Dial Divisions
Price Part Number Capacity x
Dial Divisions
Price
30482-0020 500lb x 5 (lb) $2390.00
- N/A - - N/A - - N/A -
30482-0053 1,000lb x 10 (lb) $2180.00
30482-0079 500kg x 5 (kg) $2250.00
30478-0034 5,000lb x 50 (lb) $1058.25
- N/A - - N/A - - N/A -



Features of the Dillon Model "U" Force Gauges

Slim Line Design for added versatility.

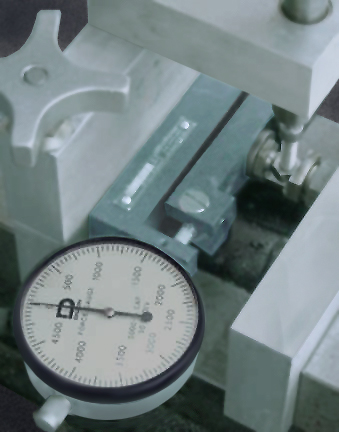

The Model "U" Force Gauge is an accurate (±1% of full range) mechanical compression-measurement instrument. Its slim-line design has repeatedly proven valuable in installations where space is at a premium. The versatility of this simple instrument is demonstrated by
the fact that it can be used as a handheld device, permanently mounted on a flat surface plate, or used in test fixtures.

  • The Dillon Model "U" Force Gauge employs a deflection beam machined from aircraft quality alloy steel and heat treated to develop optimum strength and spring characteristics. A precision dial indicator is mounted at the null point of this beam.
  • Compression force is normally applied against a single pressure fitting mounted on the upper half of the beam. (For accurate calibration, designate the type of pressure fitting you wish to
    use with the U Force Gauge. They are of four types: domed, cupped, flat, or a flat nylon insert. Flat bottom gauges require only one fitting. Recessed bottom gauges have top and bottom fittings). When load is exerted, the beam moves downward causing a slanted anvil on the free end to push against the indicator plunger. The indicator reading is a direct representation of the applied load.

PLEASE NOTE! **Recessed Bottom Optional on All Low-Range Models ONLY**



Measurements for Dillon Model "U" Force Gauges

Low-Range Recessed-Bottom Model U Force Gauge
Part Number Capacity in Pounds
(Kilograms)
A
in.(mm)
B
in. (mm)
C
in. (mm)
D
in. (mm)
E
in. (mm)
F
in. (mm)
G
in. (mm)
H
in. (mm)
J
in. (mm)
K
in. (mm)
L
in. (mm)
M
in. (mm)
N
in. (mm)
30489-0015
(30489-0064)
25 x .25
(10 x .1)
3.28
(83.3)
5.50
(139.6)
.73
(18.5)
.36
(9.1)
.97
(24.6)
.56
(14.2)
.90
(22.8)
1.40
(35.5)
1.87
(47.5)
.46
(11.7)
.094
(2.4)
.394
(8.9)
1.67
(42.4)
30489-0023
(30489-0072)
50 x.5
(25 x .25)
3.28
(83.3)
5.50
(139.6)
.73
(18.5)
.36
(9.1)
.97
(24.6)
.56
(14.2)
.90
(22.8)
1.40
(35.5)
1.87
(47.5)
.46
(11.7)
.094
(2.4)
.394
(8.9)
1.67
(42.4)
30489-0031
(30489-0080)
100 x 1
(50 x .5)
3.28
(83.3)
5.50
(139.6)
.73
(18.5)
.36
(9.1)
.97
(24.6)
.56
(14.2)
.90
(22.8)
1.40
(35.5)
1.87
(47.5)
.46
(11.7)
.094
(2.4)
.394
(8.9)
1.67
(42.4)
30489-0056
(30489-0098)
250 x 2.5
(100 x 1)
3.28
(83.3)
5.50
(139.6)
.73
(18.5)
.36
(9.1)
.97
(24.6)
.56
(14.2)
.90
(22.8)
1.40
(35.5)
1.87
(47.5)
.46
(11.7)
.094
(2.4)
.394
(8.9)
1.67
(42.4)
Also available in newton calibration (Call for Information (800) 832-0055)


Low-Range Flat-Bottom Model U Force Gauge
Part Number Capacity in Pounds
(Kilograms)
A
in.(mm)
B
in. (mm)
C
in. (mm)
D
in. (mm)
E
in. (mm)
F
in. (mm)
G
in. (mm)
H
in. (mm)
J
in. (mm)
K
in. (mm)
L
in. (mm)
M
in. (mm)
N
in. (mm)
30354-0017
(30354-0066)
25 x .25
(10 x .1)
3.28
(83.3)
5.50
(139.6)
.73
(18.5)
.36
(9.1)
.97
(24.6)
.56
(14.2)
.90
(22.8)
1.40
(35.5)
1.87
(47.5)
.46
(11.7)
.094
(2.4)
.349
(8.9)
1.67
(42.4)
30354-0025
(30354-0074)
50 x .5
(25 x .25)
3.28
(83.3)
5.50
(139.6)
.73
(18.5)
.36
(9.1)
.97
(24.6)
.56
(14.2)
.90
(22.8)
1.40
(35.5)
1.87
(47.5)
.46
(11.7)
.094
(2.4)
.349
(8.9)
1.67
(42.4)
30354-0033
(30354-0082)
100 x 1
(50 x .5)
3.28
(83.3)
5.50
(139.6)
.73
(18.5)
.36
(9.1)
.97
(24.6)
.56
(14.2)
.90
(22.8)
1.40
(35.5)
1.87
(47.5)
.46
(11.7)
.094
(2.4)
.349
(8.9)
1.67
(42.4)
30354-0058
(30354-0090)
250 x 2.5
(100 x 1)
3.28
(83.3)
5.50
(139.6)
.73
(18.5)
.36
(9.1)
.97
(24.6)
.56
(14.2)
.90
(22.8)
1.40
(35.5)
1.87
(47.5)
.46
(11.7)
.094
(2.4)
.349
(8.9)
1.67
(42.4)
Also available in newton calibration (Call for Information (800) 832-0055)

High-Range Flat-Bottom Model U Force Gauge
Part Number Capacity in
Pounds
(Kilograms)
A
in.
(mm)
B
in.
(mm)
C
in.
(mm)
D
in.
(mm)
E
in.
(mm)
F
in.
(mm)
G
in.
(mm)
H
in.
(mm)
J
in.
(mm)
N
in.
(mm)
30482-0020
( N/A )
500 x 5
( N/A )
3.87
(98.0)
6.75
(171.3)
.98
(24.9)
.49
(12.4)
1.25
(31.5)
.92
(23.6)
1.52
(38.6)
1.67
(42.4)
2.44
(63.5)
2.25
(57.2)
30482-0053
(30482-0079)
1,000 x 10
(500 x 5)
3.87
(98.0)
6.75
(171.3)
.98
(24.9)
.49
(12.4)
1.25
(31.5)
.92
(23.6)
1.52
(38.6)
1.67
(42.4)
2.44
(63.5)
2.25
(57.2)
30478-0018
(30478-0042)
2,000 x 20
(1000 x 10)
4.74
(120.1)
7.94
(201.5)
.98
(24.9)
.49
(12.4)
1.72
(43.7)
1.41
(35.5)
2.06
(52.3)
2.88
(72.8)
2.75
(69.9)
30478-0034
( N/A )
5,000 x 50
( N/A )
4.74
(120.1)
7.94
(201.5)
.98
(24.9)
.49
(12.4)
1.72
(43.7)
1.41
(35.5)
2.06
(52.3)
2.88
(72.8)
2.75
(69.9)
30432-0039
(30432-0054)
10,000 x 100
(5000 x 50)
4.35
(110.2)
9.19
(233.2)
1.44
(36.5)
.72
(18.3)
2.12
(53.8)
1.82
(46.0)
2.31
(58.6)
2.32
(58.9)
3.72
(94.4)
3.62
(91.9)
Also available in newton calibration (Call for Information (800) 832-0055)





Section 2 Compression Load Fittings (500lbs to 1,000lbs) (500kgs)
Domed Surface
30483-0011

$1415.00
Cupped Surface
30378-0019

$675.00
Flat Surface
30484-0010

$1660.000
Section 3 Compression Load Fittings (2,000lbs to 10,000lbs) (1,000kgs to 5,000kgs)
Domed Surface
30434-0011

$940.00
Cupped Surface
30125-0015

$150.00
Flat Surface
30475-0011

$2020.00
