Shimpo FG-7000 Digital Force Gauges SHIMPO Equipment
Authorized Dealer
The FG-7000 Series digital force gauges are loaded with functionality to simplify your compression and tension testing needs. The multiple-language FG-7000’s provide menu programming for easy selection and set-up of the instrument to your desired requirements. Three modes of operation are selectable: Track mode for live readings, Peak mode for displaying the peak reading that remains until a higher peak is sensed, and Auto Peak mode which is similar to Peak mode except the peak on the display will additionally reset after a programmed time period. Programmable limits provide a quick visual and audible indication if a test passed or failed on the LCD. In addition, the comparator output can be set up for integration of the instrument into your quality system for repetitive testing such as on a production line.
Call New

Specifications Chart

Grips and Adapters

Shimpo FG-7000 Digital Force Gauges

Price: $617.50

Replacements

Shimpo FG-PRINTER Portable Thermal Printer for FG-7000 & FG-3000
Shimpo FG-PRINTER Portable Thermal Printer for FG-7000 & FG-3000, add $88.00
Shimpo  NIST Traceable Certificate of Calibration for 0.5 to 100 lbs, Includes Data Points
Shimpo NIST Traceable Certificate of Calibration for 0.5 to 100 lbs, Includes Data Points, add $169.29
Shimpo FG-7USB Replacement USB Cable for FG-3000 and FG-7000 Force Gauges
Shimpo FG-7USB Replacement USB Cable for FG-3000 and FG-7000 Force Gauges, add $11.11
Shimpo FG-7CHRG Replacement AC-Adapter for FG-3000 FG-7000 and TTC
Shimpo FG-7CHRG Replacement AC-Adapter for FG-3000 FG-7000 and TTC, add $17.60

View Spec Cart

The FG-7000 Series digital force gauges are loaded with functionality to simplify your compression and tension testing needs. The multiple-language FG-7000’s provide menu programming for easy selection and set-up of the instrument to your desired requirements. Three modes of operation are selectable: Track mode for live readings, Peak mode for displaying the peak reading that remains until a higher peak is sensed, and Auto Peak mode which is similar to Peak mode except the peak on the display will additionally reset after a programmed time period. Programmable limits provide a quick visual and audible indication if a test passed or failed on the LCD. In addition, the comparator output can be set up for integration of the instrument into your quality system for repetitive testing such as on a production line.

These high-tech instruments can easily data log a reading at the push of a button for simple data acquisition, or be set to continuous data storage. Data can be viewed on the screen, sent to the optional printer, or loaded to be analyzed and graphed on the free software program. The 1,000 point memory with definable groups allows for multiple tests to be recorded and easily separated upon loading

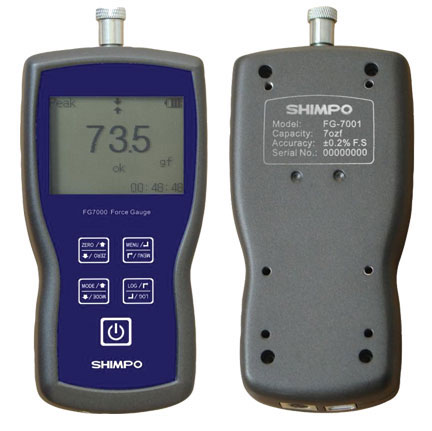

The FG-7000’s robust housings are designed to fit perfectly in the operator’s hand for portable testing. The large backlit, 180° auto-reversible display, compression/tension icons, combined with the dual labeled key pad allows for instant switching from push to pull testing for portable or test stand applications. Models are available from 0.5 lbs to 220 lb ranges providing a large offering for various applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

  • 1000 Hz Sample Rate combined with +/-0.2% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Three mode operation: Track, Peak & Auto-Peak
  • 180° Auto-reversible display, tension/compression icons, and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing
  • 1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package via USB or RS-232 Serial Port for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering unit’s selection provides flexible user comfort
  • Field Calibration capability eliminates need to send to lab
  • Calibration Certificate included along with popular adapter attachments
  • Free Data logging/graphing software available for free download on website

EDMS Data Acquisition Software (free download on website) Allows full testing of FG Series Force Gauges with live analysis of the test results. Users can set a delay or a time period for the test data to record as well as begin or end if a load threshold is reached. The load can be inverted so the graph shows the resultant force in the direction desired. Average and peak readings are automatically calculated, but the user can zoom in on a section of a graph and recalculate the new average and peak over the selected portion of the test. Besides acquiring live data, the EDMS program can also upload previously stored readings from the gauge. Additionally, the software provides the ability to easily save the data set to a spreadsheet file, plus save the resultant graph as a photo for later review.

Model FG-7002 FG-7003 FG-7004 FG-7005 FG-7006 FG-7007 FG-7008 FG-7009
Shimpo FG-7002 Digital Fo
$572.00
buy now
Shimpo FG-7003 Digital Fo
$572.00
buy now
Shimpo FG-7004 Digital Fo
$572.00
buy now
Shimpo FG-7005 Digital Fo
$572.00
buy now
Shimpo FG-7006 Digital Fo
$572.00
buy now
Shimpo FG-7007 Digital Fo
$572.00
buy now
Shimpo FG-7008 Digital Fo
$572.00
buy now
Shimpo FG-7008 Digital Fo
$572.00
buy now
Capacity X Readability 1.1 x 0.0001 lb 2.2 x 0.0005 lb 4.4 x 0.001 lb 11 x 0.001 lb 22 x 0.005 lb 44 x 0.01 lb 110 x 0.01 lb 220 x 0.05 lb
- 1 x 0.0001 kg 2 x 0.0005 kg 5 x 0.0005 kg 10 x 0.001 kg 20 x 0.005 kg 50 x 0.005 kg 100 x 0.01 kg
5 x 0.0005 N 10 x 0.001 N 20 x 0.005 N 50 x 0.005 N 100 x 0.01 N 200 x 0.05 N 500 x 0.05 N 1000 x 0.1 N
18 x 0.005 oz 35 x 0.01 oz 70 x 0.01 oz 180 x 0.05 oz 350 x 0.1 oz 700 x 0.1 oz 1800 x 0.5 oz 3500 x 1 oz
500 x 0.05 g 1000 x 0.1 g 2000 x 0.5 g 5000 x 0.5 g 10000 x 1 g 20000 x 5 g 50000 x 5 g -
5000 x 0.5 mN 10000 x 1 mN 20000 x 5 mN 50000 x 5 mN - - - -
Accuracy ± 0.2% F.S.
Selectable Units mN, N, gf, kgf, ozf, and lbf. (Depending on Range)
Overload Capacity 150% of F.S. (LCD flashes beyond 110% of F.S.)
Measurement Method Peak, Autopeak or Track Mode
Data Sampling Rate 1000 Hz
Display 2.1 x 1.6in (54 x 40 mm); dot matrix LCD with LED Backlight
Display Update Rate 10 times/second
Memory 1000 data
Set Point Programmable high and low limits
Battery Indicator Display flashes battery icon when battery is low
Power 3.6 V dc 800 mAH Ni-MH rechargeable batteries
Battery Life Approximately 16 hours continuous use per full charge
Charger / Adaptor Universal USB/BM charger, Input: 110 ~ 240 V ac
Temperature Effects <0.054% per °F (0.03% FS per °C)
Outputs USB, Serial Port RS-232, High & Low Limit NPN
Operating Temperature 14 to 104°F (-10 to 40°C)
Housing Aluminum
Storage Temperature -4 to 122°F (-20 to 50°C)
Humidity Limit 5 to 95%
Dimensions 5.7 x 2.9 x 1.4in (145 x 73 x 35.5 mm)
Product Weight 1.5 lb (0.7 kg)
Package Weight 2.8 lb (1.3 kg)
Certification CE
Warranty 1 year

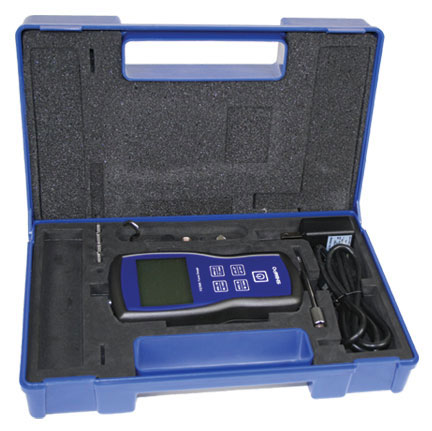

Included Accessories AC Adaptor/Charger, USB cable, calibration cert., 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft, carrying case
Grips and Adapters
Chisel Adapter
Chisel Adapter
Cone Head Adapter
Cone Head Adapter
Flat Head Adapter
Flat Head Adapter
Notched Head Adapter
Notched Head Adapter
Extension Rod Adapters
Extension Rod Adapters
Hook Adapter
Hook Adapter
Standard Adapter Sets
Standard Adapter Sets
Compression Plates
Compression Plates
Film Grips
Film Grips
Fine Point Grips
Fine Point Grips
Flat Tensile Grip
Flat Tensile Grip
Heavy-duty Tensile Grip
Heavy-duty Tensile Grip
Jacobs Chuck Grip
Jacobs Chuck Grip
Pin Head Grip
Pin Head Grip
Puncture Test Attachment
Puncture Test Attachment
Spool Grips
Spool Grip
Tape Grip
Tape Grip
Wedge Grip
Wedge Grips
Wire Terminal Test Adapter
Wire Terminal Test Adapter
Clevis Grip
Clevis Grip
Fabric Grip
Fabric Grip
Cord/Twine Grip
Cord Twine Grip
Adhesive Test Plates
Adhesive Test Plates
