Intrinsically safe digital Signum Ex Scales for use in automated processes with approval for use in Zone 1 and Zone 2 hazardous areas, Division 1, 2. With capacities ranging from 0.001 g to 35 kg, these platforms meet the demands of the automated process industry for fast and reliable results, high precision, rugged construction, direct integration in control processes and network connectivity.
Minebea Signum Ex Explosion Proof Scale
SIWXSBBP-3-06-H

SIWXSBBP-3-3-H, SIWXSBBP-3-6-H

SIWXSDCP-3-35-H

SIWXSBBS-3-3-H, SIWXSBBS-3-6-H

SIWXSDCS-3-35-H
5" dia
More info
7.1" x 7.1"
More info
13.7" X 9.7"
More info
7.1" x 7.1"
More info
13.7" X 9.7"
More info

Specifications Chart

Intrinsically safe digital Signum Ex Scales for use in automated processes with approval for use in Zone 1 and Zone 2 hazardous areas, Division 1, 2. With capacities ranging from 0.001 g to 35 kg, these platforms meet the demands of the automated process industry for fast and reliable results, high precision, rugged construction, direct integration in control processes and network connectivity. All precision Signum Ex Scales are equipped with monolithic weighing systems, built-in motorized calibration weights, integrated overload protection and electrical preload compensation.

The power supply for this scales series has to be ordered separately!

Industrial scales for sophisticated weighing tasks, extremely rugged and resistant. For Ex-zones 2 and 22. IP65 protected.

For use in hazardous areas with potentially explosive gas and dust (nonconductive), in which an explosive atmosphere is not present, or is present only briefly, during normal operation
Protection (dust tight, protected from penetration by jets of water)
All power supply options for the standard scale are available, as well as all accessories (except bar code scanner, Ethernet, below-scale weighing)
The manufacturers declaration is made in accordance with the newest EN 60079-15 standard, edition 2005 (with regard to protection type "n").
The built-in motorized calibration weight in the Signum Supreme
Permissible ambient operating temperature range: -10°C to +40°C (+14°F to +104°F)
Minebea Signum Ex
Explosion Proof Scales

FREE UPS Ground Shipping
(within the 48 continental US States)

Sartorius  YDI05-ZU2 Hazardous area converter RS232 - RS232, 14 pin plug
Sartorius YDI05-ZU2 Hazardous area converter RS232 - RS232, 14 pin plug, add $870.30
Sartorius YPS02-XKR Power Supply, Hazardous area for Canada
Sartorius YPS02-XKR Power Supply, Hazardous area for Canada, add $1,827.00
Sartorius YPS02-XUR Power Supply, Hazardous area for USA
Sartorius YPS02-XUR Power Supply, Hazardous area for USA, add $1,827.00
Sartorius YRB02-X Intrinsically Safe Battery Pack
Sartorius YRB02-X Intrinsically Safe Battery Pack, add $1,460.70
Sartorius YRB02LD Charger, for YRB02-X
Sartorius YRB02LD Charger, for YRB02-X , add $338.40

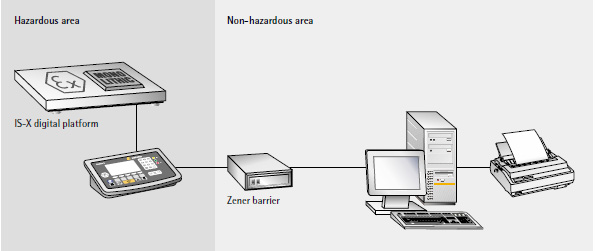

Sartorius YDI05-ZU1 Zene Barrier Hazardous area Converter RS232-RS232, open ended for CIXS3
Sartorius YDI05-ZU1 Zene Barrier Hazardous area Converter RS232-RS232, open ended for CIXS3, add $874.00
Sartorius YDH02CISUS Wall Mounting for Midrics/Signum Series
Sartorius YDH02CISUS Wall Mounting for Midrics/Signum Series, add $75.00
Sartorius YPS02-ZKR Power Supply, Safe  (65 ft. of intrinsically safe cable)
Sartorius YPS02-ZKR Power Supply, Safe (65 ft. of intrinsically safe cable), add $1,236.60
SartoriusYDI05-ZU3 Zene Barrier Hazardous area Converter RS-422-RS-232C
SartoriusYDI05-ZU3 Zene Barrier Hazardous area Converter RS-422-RS-232C, add $733.50

Specifications Chart

Note that the power supply all Signum Ex Series IS NOT INCLUDED and you must purchase separately either the YPS02-ZKR Safe area power supply or the YPS02-XUR Hazardous area power supply (requires installation by a licensed electrician).
Please give us a call 800-832-0055 for more info

Model SIWXSBBP-3-06-H
(SIWXSBBP-V26)
SIWXSBBP-3-3-H
(SIWXSBBP-V27)
SIWXSBBP-3-6-H
(SIWXSBBP-V28)
SIWXSDCP-3-35-H
(SIWXSDCP-V29)
SIWXSBBS-3-3-H SIWXSBBS-3-6-H SIWXSDCS-3-35-H

Price: $5,778.00
  • YPS02-ZKR
    YPS02-ZKR is Safe Area Power Supply
    (65 ft. of intrinsically safe cable)
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1236.60

  • YPS02-XUR
    Hazardous area power supply for Signum Ex Series explosion proof scales
    (8 feet of intrinsic cable x 8 feet of cable requiring hardwiring by a licensed electrician) - 110V only
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1827.00

  • YRB02-X
    Hazardous area Battery Packpower supply for Signum Ex Series explosion proof scales
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1460.70


Price: $4,258.80
  • YPS02-ZKR
    YPS02-ZKR is Safe Area Power Supply
    (65 ft. of intrinsically safe cable)
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1236.60

  • YPS02-XUR
    Hazardous area power supply for Signum Ex Series explosion proof scales
    (8 feet of intrinsic cable x 8 feet of cable requiring hardwiring by a licensed electrician) - 110V only
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1827.00

  • YRB02-X
    Hazardous area Battery Packpower supply for Signum Ex Series explosion proof scales
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1460.70


Price: $5,173.20
  • YPS02-ZKR
    YPS02-ZKR is Safe Area Power Supply
    (65 ft. of intrinsically safe cable)
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1236.60

  • YPS02-XUR
    Hazardous area power supply for Signum Ex Series explosion proof scales
    (8 feet of intrinsic cable x 8 feet of cable requiring hardwiring by a licensed electrician) - 110V only
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1827.00

  • YRB02-X
    Hazardous area Battery Packpower supply for Signum Ex Series explosion proof scales
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1460.70


Price: $5,426.10
  • YPS02-ZKR
    YPS02-ZKR is Safe Area Power Supply
    (65 ft. of intrinsically safe cable)
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1236.60

  • YPS02-XUR
    Hazardous area power supply for Signum Ex Series explosion proof scales
    (8 feet of intrinsic cable x 8 feet of cable requiring hardwiring by a licensed electrician) - 110V only
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1827.00

  • YRB02-X
    Hazardous area Battery Packpower supply for Signum Ex Series explosion proof scales
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1460.70


Price: $5,938.20
  • YPS02-ZKR
    YPS02-ZKR is Safe Area Power Supply
    (65 ft. of intrinsically safe cable)
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1236.60

  • YPS02-XUR
    Hazardous area power supply for Signum Ex Series explosion proof scales
    (8 feet of intrinsic cable x 8 feet of cable requiring hardwiring by a licensed electrician) - 110V only
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1827.00

  • YRB02-X
    Hazardous area Battery Packpower supply for Signum Ex Series explosion proof scales
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1460.70


Price: $6,845.40
  • YPS02-ZKR
    YPS02-ZKR is Safe Area Power Supply
    (65 ft. of intrinsically safe cable)
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1236.60

  • YPS02-XUR
    Hazardous area power supply for Signum Ex Series explosion proof scales
    (8 feet of intrinsic cable x 8 feet of cable requiring hardwiring by a licensed electrician) - 110V only
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1827.00

  • YRB02-X
    Hazardous area Battery Packpower supply for Signum Ex Series explosion proof scales
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1460.70


Price: $6,749.10
  • YPS02-ZKR
    YPS02-ZKR is Safe Area Power Supply
    (65 ft. of intrinsically safe cable)
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1236.60

  • YPS02-XUR
    Hazardous area power supply for Signum Ex Series explosion proof scales
    (8 feet of intrinsic cable x 8 feet of cable requiring hardwiring by a licensed electrician) - 110V only
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1827.00

  • YRB02-X
    Hazardous area Battery Packpower supply for Signum Ex Series explosion proof scales
    Note that the power supply on all Signum Ex Series IS NOT INCLUDED and you must purchase separately
  • Add $1460.70

Capacity x Readability 1.3 x 0.000002 lb 6.8 x 0.00002 lb 13.5 x 0.00002 lb 75 x 0.0002 lb 6.8 x 0.00002 lb 13.5 x 0.00002 lb 75 x 0.0002 lb
0.62 kg x 0.001 g 3.1 kg x 0.01 g 6.1 kg x 0.01 g 35 kg x 0.1 g 3.1 kg x 0.01 g 6.1 kg x 0.01 g 35 kg x 0.1 g
Pan Size 5 inch dia 7.1" x 7.1" 7.1" x 7.1" 13.7" X 9.7" 7.1" x 7.1" 7.1" x 7.1" 13.7" X 9.7"
Design Painted Painted Painted Painted Stainless Steel Stainless Steel Stainless Steel
Weighing Pan Stainless Steel Weighing Pan
weighing system Monolitic weighing system
Overload protection Overload protection 300 kg
rating IP43 IP65
Power Requires single YPS02-XUR for hazardous area connection or YPS02-ZKR for safe area connection
