Sartorius EB-x Explosion Proof Scales
Authorized Dealer
Intrinsically safe industrial scale with DMS technology. Thanks to their rugged construction, high overload protection and side-impact protection, these scales are ideal for industrial applications. The backlit display allows error-free operation. SPEED UP technology ensures super fast weighing

EB6DCE-IX, EB15DCE-IX

EB35EDE-IX, EB60EDE-IX

EB60FEG-IX, EB150FEG-IX

Specifications Chart

Economy EB Thanks to their rugged construction, high degree of overload protection and side-impact protection, these scales are ideal for use in industrial settings. All feature a backlit display, which ensures error-free operation. In addition, a special, optimally combined mechatronic system consisting of Sartorius strain gauges, an A/D converter and interference compensation provides for reliable weighing results with a display resolution of 30,000 digits. And if you need quick weight readouts, Sartorius SPEED UP technology delivers results in no time.

More Explosion Proof Scales
Series FC-EX FCA-EX PMA Paint Mixing EB-x
Readability Range 0.001g - 1 g 0.1 g - 2 g 0.1 g 0.1 g - 5 g
Max Capacity Range 0.62 - 64 kg 16 kg - 300 kg 7500 g 3 kg - 150 kg
more
(10) Models
more
(7) Models
more
info
more
(6) Models
Sartorius EB-x Explosion Proof Scales

FREE UPS Ground Shipping
(within the 48 continental US States)


Sartorius YPS02-XUR Power Supply, Hazardous area for USA, add $1,827.00

Sartorius YPS02-XKR Power Supply, Hazardous area for Canada, add $1,827.00

Sartorius YPS02-ZKR Safe Area Power Supply (65 ft. of intrinsically safe cable), add $1,236.60

Sartorius YPE05-X Foot Switch, add $350.00

Sartorius YTE02-X T-Connector, add $617.50

Specifications Chart

Intrinsically safe industrial scale with DMS technology. Thanks to their rugged construction, high overload protection and side-impact protection, these scales are ideal for industrial applications. The backlit display allows error-free operation. SPEED UP technology ensures super fast weighing.

Europae(ATEX): II 2 G EEx ib IIC T4
USA/CND (FM/CSA): CLI, DIV 1, GP A, B, C, D, T4

The power supply for this scales series has to be ordered separately! (please see accessories)

Scales in this series are available with the following applications that can be selected by menu code: Counting, mass unit conversion by toggling, weighing in percent (absolute readout or difference ? with automatic taring function), second tare memory, 1-l standard formula calculation, totalizing, toggling between gross/net values, and averaging.

An RS-232C data interface (for printer/PC) comes standard. The power supply must always be ordered separately ? models for use within or outside hazardous areas and for specific countries are available (please refer to the typical scale configuration and accessories).

  • Intrinsically safe
  • SPEED UP technology: super fast stability within approx. 0.5 sec
  • Weighing range from 0.1 g to 150 kg
  • Excellent price/performance ratio
  • Rugged
  • PolyRange structure
  • An RS232 interface port is standard

Note that the power supply all EN-x Series IS NOT INCLUDED and you must purchase separately either the YPS02-ZKR Safe area power supply or the YPS02-XUR Hazardous area power supply (requires installation by a licensed electrician).

Model EB15DCE-IX EB35EDE-IX EB60EDE-IX EB60FEG-IX

Price: $3,277.50
YPS02-ZKR
Add $1236.60
YPS02-XUR
Add $1827.00

Price: $3,334.50
YPS02-ZKR
Add $1236.60
YPS02-XUR
Add $1827.00

Price: $3,334.50
YPS02-ZKR
Add $1236.60
YPS02-XUR
Add $1827.00

Price: $3,614.75
YPS02-ZKR
Add $1236.60
YPS02-XUR
Add $1827.00
Capacity x Readability 7.5 kg x 0.2g
15 kg x 0.5g
17.5 kg x 0.5g
35 kg x 1g
30 kg x 1g
60 kg x 2g
30 kg x 1g
60 kg x 2g
16.5 x 0.0005 lb
33 x 0.001 lb
38.5 x 0.001 lb
77 x 0.002 lb
66 x 0.002 lb
132 x 0.005 lb
66 x 0.002 lb
132 x 0.005 lb
Repeatability ± 0.5g 1g 2g 2g
Linearity ± 1 g 2 g 4 g 4 g
Platform Size 12.6" x 9.4" 15.7" x 11.8" 15.7" x 11.8" 19.7" x 15.7"
IP54 IP54 IP54 IP54
Applications Counting, % Weighing, Unit Toggle, Preset Tare, Statistics w/YDP03-0CE, Animal Weighing, Calculation, Net-Total
Data interface RS-232C

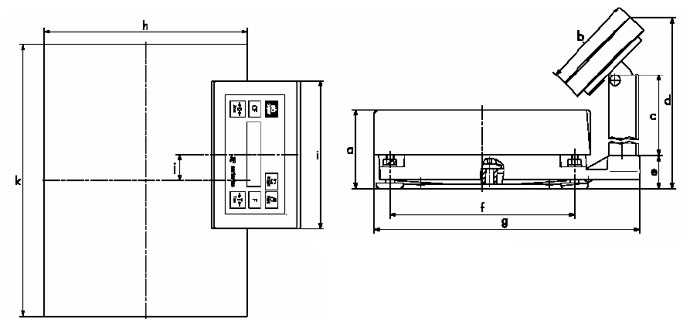

Dimensions (in millimeters)

Model EB6DCE-IX EB15DCE-IX EB35EDE-IX EB60EDE-IX EB60FEG-IX EB150FEG-IX
a min.88 min.88 min.90 min.90 min.96 min.96
b 103 103 103 103 103 103
c 325 325 500 500 750 750
d 425 425 600 600 839 839
e 37 37 37 37 26 26
f 205 205 265 265 343 343
g 295 295 355 355 465 465
h 240 240 300 300 400 400
i 174 174 174 174 174 174
j 30 30 60 60 - -
k 320 320 400 400 500 500
