Salter Brecknell S100 Industrial Scales
The S100 is a low cost general purpose, self-contained industrial scale with RS-232 interface for simple non-trade weighing applications.
Salter Brecknell S100 Industrial Scales

Specifications Chart

The S100 is a low cost general purpose, self-contained industrial scale with RS-232 interface for simple non-trade weighing applications

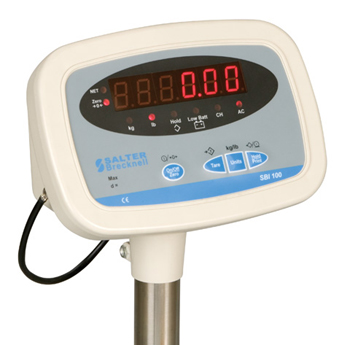

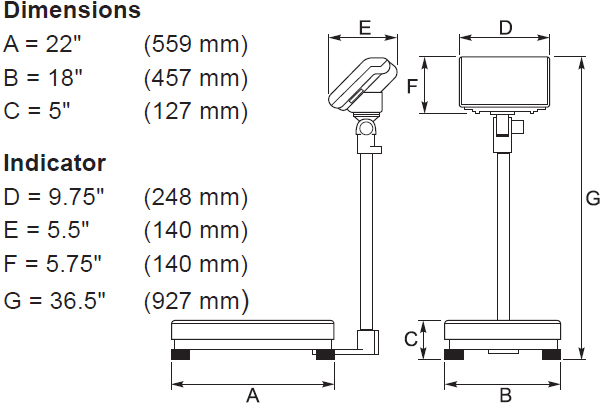

Column or Desk Mount Indicator– Attach the indicator to the stainless steel column to provide a total height of 36.5" (927 mm) or remote the indicator up to 48" (1220 mm) without the use of column

RS-232 Interface– SBI 100 indicator can be configured for weight only or GTN via continuous output, print key, or stable weight. Choose bi-directional interface for communication to a PC

ON/OFF Switch– Remove power from indicator to increase battery performance and life of product

Auto Shut-off Timer– Adjustable from 1-15 minutes or Off

Weight Hold Functions– Can be configurable for manual button release, automatic release on change in weight, or within +/- 3-50 scale divisions

Internal Rechargeable Battery– Low battery and battery charging annunciators indicate status of lead-acid battery. Battery is charged while AC power is active.

Units Switching– Can be configured for LB/KG switching, LB only, or KG only

Adjustable Resolution Setting– Factory default setting of 6,000 or 7,500 divisions can be modified to increase performance within certain applications

Adjustable Scale Setting– Power on zero, AZT, 4 filter settings, weight stability, overload, baud rate and status bits

Robust Design– Re-enforced painted mild steel base, stainless steel weight platter and pole, robust ABS plastic indicator with strain relief connections, and heavy duty adjustable foot assemblies

Model S100-150 S100-300 S100-600

buy now

buy now

buy now
Capacity x Readability 150 lb x 0.02 lb 300 lb x 0.05 lb 600 lb x 0.1 lb
75 kg x 0.01 kg 150 kg x 0.02 kg 300 kg x 0.05 kg
Pan Size 18" X 22" (457 mm x 559 mm)
Accuracy 0.01% of full scale
Construction– Stainless steel weight platter, painted mild steel base, ABS indicator
Display Six digit 0.8" (20 mm) high red LED display with 8 separate LED annunciators
Annunciators Net, zero, kg, lb, hold, low battery, battery charging, mains connected
Power AC/Mains power(120V AC @ 60Hz, 12 VDC, 500mA UL) and built-in rechargeable lead-acid battery
Battery Life Up-to 35 hours of continuous use
Operating Temp – 41° F to 95° F (5° C to 35° C)
Auto-off Selectable between 1 to 15 minutes after inactivity
Function Keys Function Keys– Power Switch, On/Off/Zero, Tare, Units, Hold/Print
Tare 100% subtractive
RS-232 Standard 9 pin straight pass through interface connector, interface cable not included
Weight 44 lb (20 kg)
Shipping Weight 53 lb (24 kg)
Packaging Contents 5SBI 100 indicator, S100 base with load cell interface cable, power supply(s), SS mounting pole, indicator mounting hardware.
Packaging Dimensions 35" L x 24" W x 8" H 965 mm (L) x 610 mm (W) x 203 mm (H)
Approvals Full FCC compliance, UL/CUL power adapter, CE, WEEE directive
