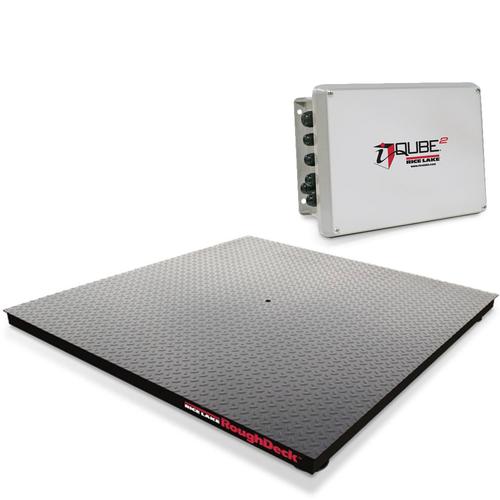

Rice Lake Roughdeck and iQUBE²® System Low-Profile Floor Scales
iQUBE²® is leading a new generation of digital junction boxes. At the forefront of iQUBE²'s cutting edge design are enhanced features that will redefine expectations for traditional analog to digital technolog The RoughDeck HP?s best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 1,000 to 10,000 pound capacities, the RoughDeck HP is the industry leader for precision weighing in Legal for Trade applications
Rice Lake Roughdeck and iQUBE²® System Low-Profile Floor Scales
Base with iQUBE junction box
Only Indicator Sold Separately
Legal For Trade
Selected Models

Specifications Chart

Please Call (800)832-0055
or Email Us for help
Ordering this Scale

The iQUBE²® Junction Box

iQUBE²® is leading a new generation of digital junction boxes. At the forefront of iQUBE²s cutting edge design are enhanced features that will redefine expectations for traditional analog to digital technology.

For mission-critical applications and unmatched performance, iQUBE² is the equipment of choice. Its high-speed ability to update up to 500 times per second on multi-channels makes it the fastest smart junction box available. Unmatched reaction time brings accuracy to new levels, increasing precision and profits.

Enhanced onboard diagnostics will identify noise, test for linearity and zero reference, and monitor drift. Diagnostics are enhanced by a unique load cell emulation feature which compensates for a failing load cell until a repair can be made.

  • iQUBE2® board has four A/D channels
  • Stainless steel or Fiberglass Reinforced Polyester (FRP), NEMA Type 4X polyester enclosure
  • Supports networking up to four boards, for 16 A/D channels. Connection can be up to four separate platforms with a system total, or four separate scale systems
  • Diagnostic routines for weighing errors and system health
  • Cell tests for overloaded, underloaded, zero reference, drift, noise and unbalanced conditions
  • Onboard status LEDs for communication and visual bi-color indication of cell health
  • Cell emulator compensates for load cell failure until a repair can be made
  • Cal-Match® algorithm automatically trims and calibrates the scale in one pass of test weights (stopping over each mount)
  • Standard communication RS-232/RS-422 option card slot for fiber optic, Ethernet TCP/ IP or wireless TPC/IP
  • Four digital I/O per card, for push button operation, set point control or cell status

Designed to enhance speed and performance, iQUBE² is the next generation of intelligent junction boxes. By taking standard j-box functions to a digital level, it offers more than any junction box you?ve ever known. iQUBE² has the unique ability to digitally monitor and communicate load cell performance, and when necessary will compensate for a failing load cell until repairs can be made. By creating a digital signal, iQUBE² provides unparalleled speed and communication, and is far more resistant to electrostatic discharge and transient damage from lightning strikes than a traditional scale system. iQUBE² is ideal for systems requiring single or multiple scales with multiple cells. From floor and hopper scales to large multi-deck truck scales, iQUBE² is the required solution for any mission-critical application.

Accuracy translates to profits Your scale controls either the quality or quantity of the product you are weighing. In other words, your scale accuracy is directly related to profits. Many factors can affect your scale accuracy, which can go unnoticed. iQUBE² monitors each load cell for weighing errors. Speed enhances precision

Faster data feedback improves the weight response efficiency of the HMI indicator. Whatever batching control application you are monitoring, iQUBE² gives you real-time data for precision control. Accurate targets can be achieved in fast-fill applications like asphalt, grain or chemicals where both speed and accuracy are required. Even though update speed is extremely fast, the accuracy is enhanced with an adaptive digital filter.

  • The benefits of QUBE2 diagnostics iQUBE², when used with a diagnostic screen, displays and tracks cell performance, weight, dead load and current values for each load cell. The diagnostics system checks A/D, excitation, communication and load cell bridges.
  • iQUBE2 Diagnostics iQUBE2 Tests for Return to Zero If any load cell in a scale system does not return to zero, it could be an indication of scale binding or a damaged load cell. A cell or scale that is binding could be zeroed and appear to work, but still not weigh correctly. The iQUBE² diagnostic data will troubleshoot these situations and pinpoint any problem areas.
  • iQUBE2 Tests for Cell Balance Many factors influence scale linearity; however, when a scale is nonlinear, it usually isn?t noticed until inventory shortages have occurred. iQUBE² verifies linearity by monitoring load cell tolerances.

The RoughDeck Floor Scale

The RoughDeck HP?s best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 1,000 to 10,000 pound capacities, the RoughDeck HP is the industry leader for precision weighing in Legal for Trade applications.

The RoughDeck HP?s NEMA Type 4X aluminum TuffSeal junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck. The junction box is also mounted as a handy slide-out tray that eases setup and service access. Cables include sturdy cord grips or a quick disconnect for added convenience. In addition, all load cell cables are enclosed in conduit, alleviating danger of rough handling. All load cells are recessed within the channel for protection on all sides, while maintaining easy access for leveling.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales

  • Heavy-duty industrial design
  • Structural steel channel frame
  • 4 NTEP Certified alloy steel, shear beam load cells
  • 20 ft SURVIVOR® EL147HE hostile environment load cell cable
  • TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
  • Side-access junction box
  • Rugged diamond deck safety treadplate
  • 4 adjustable stainless steel SUREFOOT? support feet
Rice Lake Roughdeck HP Structural Steel Low-Profile Floor Scales

Price From: $2974.50



Select Indicator (Must be added with scale)
Rice Lake 480 with Quick Connect , Add $582.30
Rice Lake 480 Plus Legend with Quick Connect , Add $582.30
Rice Lake 482 with Quick Connect , Add $672.30
Rice Lake 482 Plus Legend with Quick Connect< , Add $672.30
Rice Lake 420 Plus with Quick Connect , Add $765.00
Rice Lake IQ Plus 390-DC with Quick Connect , Add $720.00
Rice Lake IQ Plus 590-DC with Quick Connect , Add $765.00

Options Must be added with scale

(Some Factory Installed)

Indicator Column\Stand
Rice Lake 19352 Indicator Floor Stand  Steel Painted 36.3in
Rice Lake 19352 Indicator Floor Stand Steel Painted 36.3in, add $184.50
Rice Lake 126384 Indicator Floor Stand  Steel Painted 48 inch
Rice Lake 126384 Indicator Floor Stand Steel Painted 48 inch, add $202.50
Single Side Bumper Guard
Rice Lake RoughDeck HP Bumper Guard Option A 4.0 ft
Rice Lake RoughDeck HP Bumper Guard Option A 4.0 ft, add $180.00
Rice Lake RoughDeck HP Bumper Guard Option A 5.0 ft
Rice Lake RoughDeck HP Bumper Guard Option A 5.0 ft, add $225.00
RoughDeck HP Caster Portability Frames
Rice Lake RoughDeck HP Caster for 1000 lb to 5000 lb 4 lf x 4 ft
Rice Lake RoughDeck HP Caster for 1000 lb to 5000 lb 4 lf x 4 ft, add $1,525.50
Ramps
Rice Lake Roughdeck HP Access Ramp 4 ft x 3 ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 4 ft x 3 ft x 3.5 in, add $324.00
Rice Lake Roughdeck HP Access Ramp 5 ft x 3 ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 5 ft x 3 ft x 3.5 in, add $369.00
Rice Lake Roughdeck HP Access Ramp  4 ft x 4  ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 4 ft x 4 ft x 3.5 in, add $387.00
Rice Lake Roughdeck HP Access Ramp 5 ft x 4 ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 5 ft x 4 ft x 3.5 in, add $414.00
Pit Frame
Rice Lake 18761 RoughDeck HP 4 ft x 4 ft Pit Frame (1,000lb - 10,000lb)
Rice Lake 18761 RoughDeck HP 4 ft x 4 ft Pit Frame (1,000lb - 10,000lb), add $364.50
Rice Lake 18763 RoughDeck HP 5 ft x 5 ft Pit Frame (1,000lb - 10,000lb)
Rice Lake 18763 RoughDeck HP 5 ft x 5 ft Pit Frame (1,000lb - 10,000lb), add $450.00
MODEL RoughDeck with iQUBE2® 155626 155628 155629 155630 155631 155632
Rice Lake 4X4-1K Roughdec
$2,974.50
buy now
Rice Lake 4X4-2K Roughdec
$2,974.50
buy now
Rice Lake 4X4-5K Roughdec
$2,974.50
buy now
Rice Lake 4X4-10K Roughde
$2,974.50
buy now
Rice Lake 5X5-5K Roughdec
$3,271.50
buy now
Rice Lake 5X5-10K Roughde
$3,595.50
buy now
Capacity 1000 lb 2000 lb 5000 lb 10000 lb 5000 lb 10000 lb
Platform dimensions 4 x 4 ft 4 x 4 ft 4 x 4 ft 4 x 4 ft 5 x 5 ft 5 x 5 ft
Warranty (limited) RoughDeck HP weldment five years, load cells two years, all other components one year
