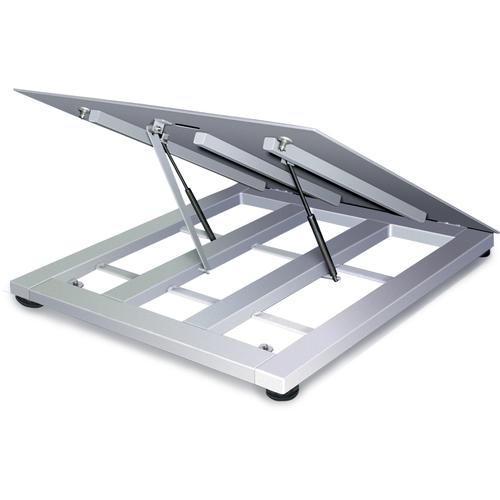

Rice Lake Roughdeck QC Stainless Steel Lift Floor Scales
RoughDeck QC is the weighing solution for efficiency and safety when cleaning cycles are tight. The exclusive gas-shock design offers easy lifting, but even more importantly, eliminates dangerous slamming of the deck when closing. For added safety and convenience, a manual support bar swings into action during extended underdeck cleaning.
Rice Lake Roughdeck QC 50402 Stainless Steel Lift Floor Scale 2.5 x 2.5 ft - Legal for Trade - Base Only - 2000 lb
Base Only Indicator Sold Separately
Legal For Trade

Specifications Chart

Please Call (800)832-0055
or Email Us for help
Ordering this Scale
 Factory Installed Options Must be added with scale
Rice Lake Floor anchor plates, Stainless Steel (set of 2) , Add $32.00
Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel FM approved load cells and hardware , Add $270.00
Indicator Column\Stand
Rice Lake 28740 Indicator Floor Stand Stainless Steel 36.3 inch
Rice Lake 28740 Indicator Floor Stand Stainless Steel 36.3 inch, add $279.00
Rice Lake Roughdeck QC Stainless Steel Lift Floor Scales

Price From: $4185.00



Select Indicator (Must be added with scale)
Rice Lake IQ Plus 210 Stainless Steel LED Digital Weight Indicator , Add $508.50
Rice Lake IQ plus® 390-DC Digital Weight Indicator , Add $675.00
Rice Lake IQ plus® 590-DC Digital Weight Indicator , Add $720.00
Rice Lake 420 Plus Digital Weight Indicator , Add $715.50
Rice Lake 480 LED Legend Series Digital Weight Indicator , Add $562.50
Rice Lake 482 LCD Legend Series Digital Weight Indicator , Add $652.50

For a full list of Rice Lake Indicators Click Here

Ramps
Rice Lake Roughdeck QC 69193 Stainless Steel Access Ramp 2.5 ft x 4.0 ft x 3.5 in for PN 50402
Rice Lake Roughdeck QC 69193 Stainless Steel Access Ramp 2.5 ft x 4.0 ft x 3.5 in for PN 50402, add $1,201.50
Rice Lake Roughdeck QC 69194 Stainless Steel Access Ramp 3.0 ft x 4.0 ft x 3.5 in for PN 50403
Rice Lake Roughdeck QC 69194 Stainless Steel Access Ramp 3.0 ft x 4.0 ft x 3.5 in for PN 50403, add $1,201.50
Rice Lake Roughdeck QC 69195 Stainless Steel Access Ramp 4.0 ft x 4.0 ft x 3.5 in for PN 50404, 50405 and 50407
Rice Lake Roughdeck QC 69195 Stainless Steel Access Ramp 4.0 ft x 4.0 ft x 3.5 in for PN 50404, 50405 and 50407, add $1,669.50
Rice Lake Roughdeck QC 69217 Stainless Steel Access Ramp 4.0 ft x 4.0 ft x 4.5 in for PN 50406, 50408, 50410 and 50411
Rice Lake Roughdeck QC 69217 Stainless Steel Access Ramp 4.0 ft x 4.0 ft x 4.5 in for PN 50406, 50408, 50410 and 50411, add $1,687.50
Rice Lake Roughdeck QC 69218 Stainless Steel Access Ramp 4.0 ft x 4.0 ft x 4.5 in for PN 50409
Rice Lake Roughdeck QC 69218 Stainless Steel Access Ramp 4.0 ft x 4.0 ft x 4.5 in for PN 50409, add $1,687.50
Rice Lake Roughdeck QC 69222 Stainless Steel Access Ramp 4.0 ft x 5.0 ft x 5.5 infor PN 50412
Rice Lake Roughdeck QC 69222 Stainless Steel Access Ramp 4.0 ft x 5.0 ft x 5.5 infor PN 50412, add $2,178.00
Rice Lake Roughdeck QC 69219 Stainless Steel Access Ramp 5.0 ft x 4.0 ft x 4.5 in for PN 50413 and 50414
Rice Lake Roughdeck QC 69219 Stainless Steel Access Ramp 5.0 ft x 4.0 ft x 4.5 in for PN 50413 and 50414, add $2,056.50
Rice Lake Roughdeck QC 69220 Stainless Steel Access Ramp 5.0 ft x 4.0 ft x 4.5 in for PN 50415
Rice Lake Roughdeck QC 69220 Stainless Steel Access Ramp 5.0 ft x 4.0 ft x 4.5 in for PN 50415, add $2,056.50
Rice Lake Roughdeck QC 69223 Stainless Steel Access Ramp 5.0 ft x 5.0 ft x 5.5 in for PN 50416, 50417 and 50418
Rice Lake Roughdeck QC 69223 Stainless Steel Access Ramp 5.0 ft x 5.0 ft x 5.5 in for PN 50416, 50417 and 50418, add $2,695.50
Pit Frame
Rice Lake Roughdeck QC 64768 Pit Frame 2.5 ft x 2.5 ft x 4 in for PN 50402
Rice Lake Roughdeck QC 64768 Pit Frame 2.5 ft x 2.5 ft x 4 in for PN 50402, add $931.50
Rice Lake Roughdeck QC 64769 Pit Frame3.0 ft x 3.0 ft x 4 in for PN 50403
Rice Lake Roughdeck QC 64769 Pit Frame3.0 ft x 3.0 ft x 4 in for PN 50403, add $931.50
Rice Lake Roughdeck QC 64770 Pit Frame 4.0 ft x 4.0 ft x 4 in for PN 50404 and 50405
Rice Lake Roughdeck QC 64770 Pit Frame 4.0 ft x 4.0 ft x 4 in for PN 50404 and 50405, add $1,201.50
Rice Lake Roughdeck QC 64771 Pit Frame 4.0 ft x 4.0 ft x 5 in for PN 50406
Rice Lake Roughdeck QC 64771 Pit Frame 4.0 ft x 4.0 ft x 5 in for PN 50406, add $0.00
Rice Lake Roughdeck QC 64772 Pit Frame 4.0 ft x 5.0 ft x 4 in for PN 50407
Rice Lake Roughdeck QC 64772 Pit Frame 4.0 ft x 5.0 ft x 4 in for PN 50407, add $1,381.50
Rice Lake Roughdeck QC 64773 Pit Frame 4.0 ft x 5.0 ft x 5 in for PN 50408
Rice Lake Roughdeck QC 64773 Pit Frame 4.0 ft x 5.0 ft x 5 in for PN 50408, add $1,543.50
Rice Lake Roughdeck QC 64774 Pit Frame 4.0 ft x 5.0 ft x 5 in for PN 50409
Rice Lake Roughdeck QC 64774 Pit Frame 4.0 ft x 5.0 ft x 5 in for PN 50409, add $1,543.50
Rice Lake Roughdeck QC 64775 Pit Frame 4.0 ft x 6.0 ft x 5 in for PN 50410 and 50411
Rice Lake Roughdeck QC 64775 Pit Frame 4.0 ft x 6.0 ft x 5 in for PN 50410 and 50411, add $1,687.50
Rice Lake Roughdeck QC 64776 Pit Frame 4.0 ft x 6.0 ft x 6 in for PN 50412
Rice Lake Roughdeck QC 64776 Pit Frame 4.0 ft x 6.0 ft x 6 in for PN 50412, add $1,777.50
Rice Lake Roughdeck QC 64777 Pit Frame 5.0 ft x 5.0 ft x 5 in for PN 50413 and 50414
Rice Lake Roughdeck QC 64777 Pit Frame 5.0 ft x 5.0 ft x 5 in for PN 50413 and 50414, add $1,687.50
Rice Lake Roughdeck QC 64778 Pit Frame 5.0 ft x 5.0 ft x 5 in for PN 50415
Rice Lake Roughdeck QC 64778 Pit Frame 5.0 ft x 5.0 ft x 5 in for PN 50415, add $1,687.50
Rice Lake Roughdeck QC 64779 Pit Frame 5.0 ft x 7.0 ft x 6 in for PN 50416, 50417 and 50418
Rice Lake Roughdeck QC 64779 Pit Frame 5.0 ft x 7.0 ft x 6 in for PN 50416, 50417 and 50418, add $1,993.50
The RoughDeck QC is a hostile environment, stainless steel floor scale customized for food, chemical and other demanding washdown applications. The RoughDeck QC’s exclusive gas-shock design provides easy lifting and soft closing of the 3/16 inch top plate. Also included is a manual drop-in-place support bar for use during extended underdeck cleaning.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

  • Rugged washdown design
  • Smooth, 304 stainless steel top deck
  • Rigid 304 stainless steel tube frame
  • Manual drop-in-place safety bar
  • 4 stainless steel, welded seal IP67, shear-beam load cells
  • 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
  • Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
  • 3/16 in thick smooth top plate
  • 4 adjustable stainless steel SUREFOOT support feet
man lifting

Known as the toughest, most accurate floor scale line in existence, the RoughDeck’s legendary performance is now customized for food, chemical and other frequent washdown applications.

RoughDeck QC is the weighing solution for efficiency and safety when cleaning cycles are tight. Our exclusive gas-shock design offers easy lifting, but even more importantly, eliminates dangerous slamming of the deck when closing. For added safety and convenience, a manual support bar swings into action during extended underdeck cleaning.

Legendary RoughDeck performance, innovative specialty features—the ultimate washdown solution.

rugged design The rugged design incorporates 304 stainless steel construction and four welded seal load cells with PTFE cable designed for high temperatures and washdown areas.




Some Notes about the Pit Frams

  • Use concrete of minimum yield strength 5,000 PSI or 6-bag mix.
  • Allow 7 days to cure (wet concrete periodically during this time).
  • Dimensions shown assume firm, stable soil conditions. When soil conditions are not adequate, place foundation at sufficient depth.
  • In wet or washdown applications, we recommend the use of hermetically sealed load cells, and that the junction box be mounted remotely in a dry location.
  • Wire mesh to have minimum 0.75 in cover bottom and sides.
Models 50402 50403 50404 50405 50406 50407 50408 50409 50410 50411 50412
Rice Lake Roughdeck QC 50
$4,185.00
buy now
Rice Lake Roughdeck QC 50
$4,590.00
buy now
Rice Lake Roughdeck QC 50
$5,175.00
buy now
Rice Lake Roughdeck QC 50
$5,175.00
buy now
Rice Lake Roughdeck QC 50
$5,580.00
buy now
Rice Lake Roughdeck QC 50
$5,773.50
buy now
Rice Lake Roughdeck QC 50
$5,773.50
buy now
Rice Lake Roughdeck QC 50
$6,367.50
buy now
Rice Lake Roughdeck QC 50
$6,367.50
buy now
Rice Lake Roughdeck QC 50
$6,367.50
buy now
Rice Lake Roughdeck QC 50
$6,975.00
buy now
Size (W x L) 2.5 ft x 2.5 ft 3 ft x 3 ft 4 ft x 4 ft 4 ft x 4 ft 4 ft x 4 ft 4 ft x 5 ft 4 ft x 5 ft 4 ft x 5 ft 4 ft x 6 ft 4 ft x 6 ft 4 ft x 6 ft
Capacity x Readability 2000 x 0.5 lb 2000 x 0.5 lb 2000 x 0.5 lb 5000 x 1 lb 10000 x 2 lb 2000 x 0.5 lb 5000 x 1 lb 10000 x 2 lb 2000 x 0.5 lb 5000 x 1 lb 10000 x 2 lb
Hight 3.5 in 3.5 in 3.5 in 3.5 in 4.5 in 3.5 in 4.5 in 4.5 in 4.5 in 4.5 in 5.5 in
Legal For Trade NTEP CC 92-001, Class III 5000
End Load Capacity 100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb
Remote Junction Box Stainless steel enclosure can be located up to 10 ft away from scale
Deck 3/16 in thick smooth top plate
Threaded Eyebolt Hole 1/2-20 NF located in center of deck for easy lifting
Welding Stitch
Cable 20 ft (6.1 m) (for connecting junction box to indicator)
Warranty RoughDeck QC weldment five years, load cells two years, all other components one year
Approvals NTEP CC 92-001, Class III 5000 d



Models 50413 50414 50415 50416 50417 50418
Rice Lake Roughdeck QC 50
$6,367.50
buy now
Rice Lake Roughdeck QC 50
$6,367.50
buy now
Rice Lake Roughdeck QC 50
$8,023.50
buy now
Rice Lake Roughdeck QC 50
$8,649.00
buy now
Rice Lake Roughdeck QC 50
$8,649.00
buy now
Rice Lake Roughdeck QC 50
$9,639.00
buy now
Size (W x L) 5 ft x 5 ft 5 ft x 5 ft 5 ft x 5 ft 5 ft x 7 ft 5 ft x 7 ft 5 ft x 7 ft
Capacity x Readability 2000 x 0.5 lb 5000 x 1 lb 10000 x 2 lb 2000 x 0.5 lb 5000 x 1 lb 10000 x 2 lb
Hight 4.5 in 4.5 in 4.5 in 5.5 in 5.5 in 5.5 in
Legal For Trade NTEP CC 92-001, Class III 5000
End Load Capacity 100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb
Remote Junction Box Stainless steel enclosure can be located up to 10 ft away from scale
Deck 3/16 in thick smooth top plate
Threaded Eyebolt Hole 1/2-20 NF located in center of deck for easy lifting
Welding Stitch
Cable 20 ft (6.1 m) (for connecting junction box to indicator)
Warranty RoughDeck QC weldment five years, load cells two years, all other components one year
Approvals NTEP CC 92-001, Class III 5000 d

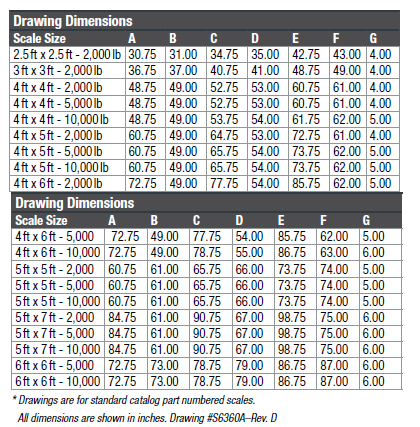

Scale Dims

Scale Dims Scale Dims2 Scale Dims chart

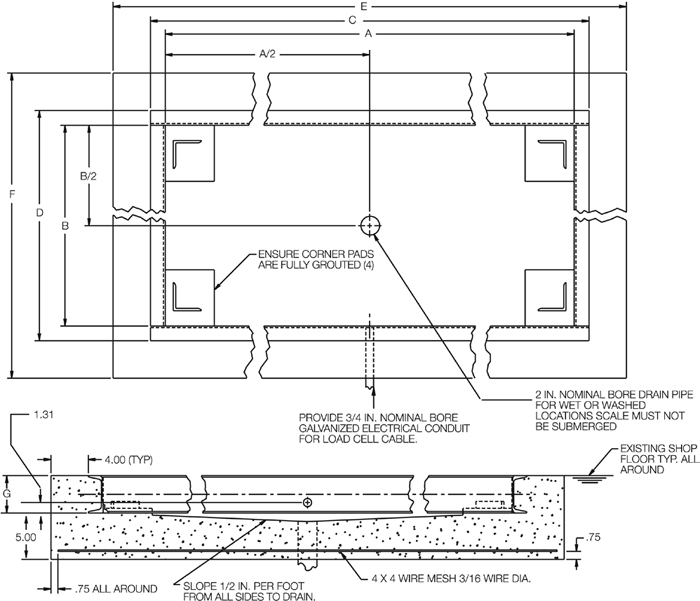

Pit Frame Dims

Pit Frame Dims Pit Frame Dims
