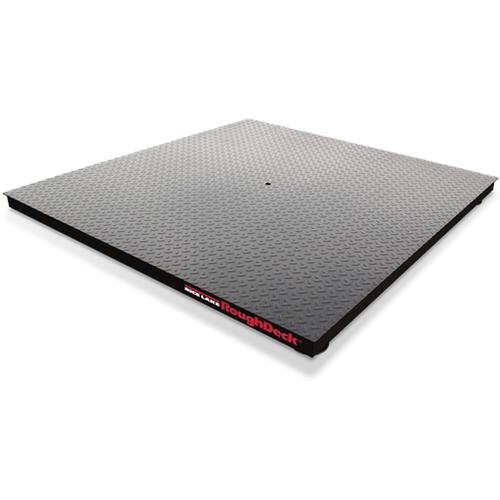

Rice Lake Roughdeck HP Structural Steel Low-Profile Floor Scales
Harsh environments and demanding capacities are no match for the industry’s toughest floor scale. RoughDeck lives up to its name with superior structural design, specialized footing, and durable load cell and cable protection. RoughDeck’s design separates it from other floor scales by minimizing deck deflection and extraneous forces that could damage load cells.
Rice Lake Roughdeck HP Steel Low-Profile Floor Scale - Legal for Trade - Base Only - 2000 lb
Base Only Indicator Sold Separately
Legal For Trade
Selected Models
Canada Measurement
Selected Models

Specifications Chart

Please Call (800)832-0055
or Email Us for help
Ordering this Scale
 Factory Installed Options Must be added with scale
Rice Lake Roughdeck HP Smooth Deck Instead of Diamond Safety Tread Plate , Add $0.00
Rice Lake Floor anchor plates, mild steel (set of 2) , Add $30.00
Rice Lake Roughdeck HP 4 drilled deck holes for scale height adjustment , Add $40.00
Rice Lake Roughdeck HP Mild steel Deck with RL35023S Stainless Steel FM Approved Load Cells and Hardware , Add $300.00
Rice Lake Roughdeck HP Mild Steel Deck with RLH35 Welded-Seal IP67 Stainless Steel FM Approved Load Cells and Hardware , Add $500.00
Rice Lake Roughdeck HP Mild Steel Deck with RL35082 Hermetically Sealed IP69K Stainless Steel FM Approved Load Cells and Hardware , Add $800.00
Rice Lake Roughdeck HP with Epoxy Paint , Add $90.00
Rice Lake Roughdeck HP Top Access Junction Box , Add $100.00
Rice Lake Roughdeck HP Forklift Channel , Add $275.00
Harsh environments and demanding capacities are no match for the industry’s toughest floor scale. RoughDeck lives up to its name with superior structural design, specialized footing, and durable load cell and cable protection. RoughDeck’s design separates it from other floor scales by minimizing deck deflection and extraneous forces that could damage load cells. Standard or customized, the RoughDeck series is available in low-profile stationary and portable versions, and offers component interchangeability and alternative construction materials to meet specific industrial requirements—from basic shipping and receiving to highly corrosive or washdown environments.
Single Side Bumper Guard
Rice Lake RoughDeck HP Bumper Guard Option A 2.5 ft
Rice Lake RoughDeck HP Bumper Guard Option A 2.5 ft, add $112.50
Rice Lake RoughDeck HP Bumper Guard Option A 3.0 ft
Rice Lake RoughDeck HP Bumper Guard Option A 3.0 ft, add $135.00
Rice Lake RoughDeck HP Bumper Guard Option A 4.0 ft
Rice Lake RoughDeck HP Bumper Guard Option A 4.0 ft, add $180.00
Rice Lake RoughDeck HP Bumper Guard Option A 5.0 ft
Rice Lake RoughDeck HP Bumper Guard Option A 5.0 ft, add $225.00
Rice Lake RoughDeck HP Bumper Guard Option A 6.0 ft
Rice Lake RoughDeck HP Bumper Guard Option A 6.0 ft, add $270.00
Rice Lake RoughDeck HP Bumper Guard Option A 7.0 ft
Rice Lake RoughDeck HP Bumper Guard Option A 7.0 ft, add $315.00
RoughDeck HP Caster Portability Frames
Rice Lake RoughDeck HP Caster for 1000 lb to 5000 lb 2.5 lf x 2.5 ft
Rice Lake RoughDeck HP Caster for 1000 lb to 5000 lb 2.5 lf x 2.5 ft, add $1,525.50
Rice Lake RoughDeck HP Caster for 1000 lb to 5000 lb 3 lf x 3 ft
Rice Lake RoughDeck HP Caster for 1000 lb to 5000 lb 3 lf x 3 ft, add $1,525.50
Rice Lake RoughDeck HP Caster for 1000 lb to 5000 lb 4 lf x 4 ft
Rice Lake RoughDeck HP Caster for 1000 lb to 5000 lb 4 lf x 4 ft, add $1,525.50
Rice Lake Roughdeck HP Structural Steel Low-Profile Floor Scales

Price From: $1359.00



Select Indicator (Must be added with scale)
Rice Lake 480 with Quick Connect , Add $582.30
Rice Lake 480 Plus Legend with Quick Connect , Add $582.30
Rice Lake 482 with Quick Connect , Add $672.30
Rice Lake 482 Plus Legend with Quick Connect< , Add $672.30
Rice Lake 420 Plus with Quick Connect , Add $765.00
Rice Lake IQ Plus 390-DC with Quick Connect , Add $720.00
Rice Lake IQ Plus 590-DC with Quick Connect , Add $765.00

Options Must be added with scale

(Some Factory Installed)

Indicator Column\Stand
Rice Lake 19352 Indicator Floor Stand  Steel Painted 36.3in
Rice Lake 19352 Indicator Floor Stand Steel Painted 36.3in, add $184.50
Rice Lake 126384 Indicator Floor Stand  Steel Painted 48 inch
Rice Lake 126384 Indicator Floor Stand Steel Painted 48 inch, add $202.50
Ramps
Rice Lake Roughdeck HP Access Ramp 2.5 ft x 3 ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 2.5 ft x 3 ft x 3.5 in, add $279.00
Rice Lake Roughdeck HP Access Ramp 3 ft x 3 ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 3 ft x 3 ft x 3.5 in, add $297.00
Rice Lake Roughdeck HP Access Ramp 4 ft x 3 ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 4 ft x 3 ft x 3.5 in, add $324.00
Rice Lake Roughdeck HP Access Ramp 5 ft x 3 ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 5 ft x 3 ft x 3.5 in, add $369.00
Rice Lake Roughdeck HP Access Ramp 2.5 ft x 4 ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 2.5 ft x 4 ft x 3.5 in, add $324.00
Rice Lake Roughdeck HP Access Ramp 3 ft x 4 ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 3 ft x 4 ft x 3.5 in, add $346.50
Rice Lake Roughdeck HP Access Ramp  4 ft x 4  ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 4 ft x 4 ft x 3.5 in, add $387.00
Rice Lake Roughdeck HP Access Ramp 5 ft x 4 ft x 3.5 in
Rice Lake Roughdeck HP Access Ramp 5 ft x 4 ft x 3.5 in, add $414.00
Pit Frame
Rice Lake 18757 RoughDeck HP 2.5 ft x 2.5 ft Pit Frame (1,000lb - 10,000lb)
Rice Lake 18757 RoughDeck HP 2.5 ft x 2.5 ft Pit Frame (1,000lb - 10,000lb), add $256.50
Rice Lake 18759 RoughDeck HP 3 ft x 3 ft Pit Frame (1,000lb - 10,000lb)
Rice Lake 18759 RoughDeck HP 3 ft x 3 ft Pit Frame (1,000lb - 10,000lb), add $283.50
Rice Lake 18761 RoughDeck HP 4 ft x 4 ft Pit Frame (1,000lb - 10,000lb)
Rice Lake 18761 RoughDeck HP 4 ft x 4 ft Pit Frame (1,000lb - 10,000lb), add $364.50
Rice Lake 18763 RoughDeck HP 5 ft x 5 ft Pit Frame (1,000lb - 10,000lb)
Rice Lake 18763 RoughDeck HP 5 ft x 5 ft Pit Frame (1,000lb - 10,000lb), add $450.00
Rice Lake 18765 RoughDeck HP 4 ft x 5 ft Pit Frame (1,000lb - 10,000lb)
Rice Lake 18765 RoughDeck HP 4 ft x 5 ft Pit Frame (1,000lb - 10,000lb), add $409.50
Rice Lake 18767 RoughDeck HP 4 ft x 6 ft Pit Frame (1,000lb - 10,000lb)
Rice Lake 18767 RoughDeck HP 4 ft x 6 ft Pit Frame (1,000lb - 10,000lb), add $450.00
Rice Lake 18769 RoughDeck HP 5 ft x 6 ft Pit Frame (1,000lb - 10,000lb)
Rice Lake 18769 RoughDeck HP 5 ft x 6 ft Pit Frame (1,000lb - 10,000lb), add $495.00
Rice Lake 18771 RoughDeck HP 5 ft x 7 ft Pit Frame (1,000lb - 10,000lb)
Rice Lake 18771 RoughDeck HP 5 ft x 7 ft Pit Frame (1,000lb - 10,000lb), add $531.00

The Toughest, Most Accurate Floor Scale Available

The RoughDeck HP’s best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 1,000 to 10,000 pound capacities, the RoughDeck HP is the industry leader for precision weighing in Legal for Trade applications.

The RoughDeck HP’s NEMA Type 4X aluminum TuffSeal junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck. The junction box is also mounted as a handy slide-out tray that eases setup and service access. Cables include sturdy cord grips or a quick disconnect for added convenience. In addition, all load cell cables are enclosed in conduit, alleviating danger of rough handling. All load cells are recessed within the channel for protection on all sides, while maintaining easy access for leveling.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

RoughDeck HP is the industry leader for precision weighing

The RoughDeck HP’s best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 1,000 to 30,000 lb capacities, the RoughDeck HP is the industry leader for precision weighing in Legal for Trade applications.

The RoughDeck HP’s NEMA 4X aluminum TuffSeal junction box is protected from forks and industrial abuse by a 6-inch structural steel channel frame and diamond treadplate safety deck. The junction box is also mounted as a handy slide-out tray that eases setup and service access. Cables include sturdy cord grips or a quick disconnect for added convenience. In addition, all load cell cables are enclosed in conduit, alleviating danger of rough handling. All load cells are recessed within the channel for protection on all sides, while maintaining easy access for leveling.

All of the RoughDeck floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation and servicing the scale. The lifting holes are not the same size on all of our scales. Please view the Lifting Eyebolt Table found on the Resources/Downloads tab of this product page to determine the standard size and quantity of eyebolts needed for your scale.

  • Heavy-duty industrial design
  • Structural steel channel frame
  • 4 NTEP Certified alloy steel, shear beam load cells
  • 20 ft SURVIVOR® EL147HE hostile environment load cell cable
  • TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
  • Side-access junction box
  • Rugged diamond deck safety treadplate
  • 4 adjustable stainless steel SUREFOOT™ support feet
  • 4 corner overload stops (Canadian versions only)
  • Level bubble (Canadian versions only)
Model with Quick Connect HP-25X25-2K HP-3X3-1K HP-3X3-2K HP-3X3-5K HP-4X4-1K HP-4X4-2K HP-4X4-5K HP-4X4-10K
66318 66320 66317 105300 66319 67618 66316 66315
Rice Lake HP-25X25-2K Rou
$1,359.00
buy now
Rice Lake HP-3X3-1K Rough
$1,359.00
buy now
Rice Lake HP-3X3-2K Rough
$1,359.00
buy now
Rice Lake HP-3X3-5K Rough
$1,359.00
buy now
Rice Lake HP-4X4-1K Rough
$1,449.00
buy now
Rice Lake HP-4X4-2K Rough
$1,449.00
buy now
Rice Lake HP-4X4-5K Rough
$1,449.00
buy now
Rice Lake HP-4X4-10K Roug
$1,449.00
buy now
Capacity x Readability 2000 x 0.5 lb 1000 x 0.2 lb 2000 x 0.5 lb 5000 x 1 lb 1000 x 0.2 lb 2000 x 0.5 lb 5000 x 1 lb 10000 x 2 lb
Size 2.5 ft x 2.5 ft x 3.5 in 3 ft x 3 ft x 3.5 in 3 ft x 3 ft x 3.5 in 3 ft x 3 ft x 3.5 in 4 ft x 4 ft x 3.5 in 4 ft x 4 ft x 3.5 in 4 ft x 4 ft x 3.5 in 4 ft x 4 ft x 3.5 in
Legal For Trade NTEP CC 92-001, Class III 5000 d
Cable Length 20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt Hole (1/2-20NF) located in center of deck for easy lifting
Warranty (limited) RoughDeck HP weldment five years, load cells two years, all other components one year
Pallet Jacks Not recommended for use with pallet jacks -
APPROVALS NTEP
FM



Model with Quick Connect HP-4X5-5K HP-4X5-10K HP-4X6-5K HP-4X6-10K HP-5X5-5K HP-5X5-10K HP-5X6-5K HP-5X6-10K HP-5X7-5K HP-5X7-10K
66314 66313 66312 66311 66310 66309 66308 66307 66306 66305
Rice Lake HP-4X5-5K Rough
$1,584.00
buy now
Rice Lake HP-4X5-10K Roug
$1,854.00
buy now
Rice Lake HP-4X6-5K Rough
$1,719.00
buy now
Rice Lake HP-4X6-10K Roug
$2,025.00
buy now
Rice Lake HP-5X5-5K Rough
$1,746.00
buy now
Rice Lake HP-5X5-10K Roug
$2,070.00
buy now
Rice Lake HP-5X6-5K Rough
$1,917.00
buy now
Rice Lake HP-5X6-10K Roug
$2,277.00
buy now
Rice Lake HP-5X7-5K Rough
$2,079.00
buy now
Rice Lake HP-5X7-10K Roug
$2,484.00
buy now
Capacity x Readability 5000 x 1 lb 10000 x 2 lb 5000 x 1 lb 10000 x 2 lb 5000 x 1 lb 10000 x 2 lb 5000 x 1 lb 10000 x 2 lb 5000 x 1 lb 10000 x 2 lb
Size 4 ft x 5 ft x 3.5 in 4 ft x 5 ft x 3.5 in 4 ft x 6 ft x 3.5 in 4 ft x 6 ft x 3.5 in 5 ft x 5 ft x 3.5 in 5 ft x 5 ft x 3.5 in 5 ft x 6 ft x 3.5 in 5 ft x 6 ft x 3.5 in 5 ft x 7 ft x 3.5 in 5 ft x 7 ft x 3.5 in
Legal For Trade NTEP CC 92-001, Class III 5000 d
Cable Length 20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt Hole (1/2-20NF) located in center of deck for easy lifting
Warranty (limited) RoughDeck HP weldment five years, load cells two years, all other components one year
APPROVALS NTEP
FM



Model with Quick Connect HP-3X3-1KG HP-4X4-25KG HP-4X4-5KG HP-5X5-25KG HP-5X5-5KG HP-5X7-25KG HP-5X7-5KG
66464 66465 66466 66467 66468 66469 66470
Rice Lake HP-3X3-1KG Roug
$1,359.00
buy now
Rice Lake HP-4X4-25KG Rou
$1,449.00
buy now
Rice Lake HP-4X4-5KG Roug
$1,449.00
buy now
Rice Lake HP-5X5-25KG Rou
$1,746.00
buy now
Rice Lake HP-5X5-5KG Roug
$2,070.00
buy now
Rice Lake HP-5X7-25KG Rou
$2,079.00
buy now
Rice Lake HP-5X7-5KG Roug
$2,484.00
buy now
Capacity x Readability 1000 x 0.2 kg 2500 x 0.5 kg 5000 x 1 kg 2500 x 0.5 kg 5000 x 1 kg 2500 x 0.5 kg 5000 x 1 kg
Size 3 ft x 3 ft x 3.5 in 4 ft x 4 ft x 3.5 in 4 ft x 4 ft x 3.5 in 5 ft x 5 ft x 3.5 in 5 ft x 5 ft x 3.5 in 5 ft x 7 ft x 3.5 in 5 ft x 7 ft x 3.5 in
Legal For Trade Measurement Canada AM-4827, Class III 5,000 d
Cable Length 20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt Hole (1/2-20NF) located in center of deck for easy lifting
Warranty (limited) RoughDeck HP weldment five years, load cells two years, all other components one year
Pallet Jacks Not recommended for use with pallet jacks -
APPROVALS Measurement Canada
FM
