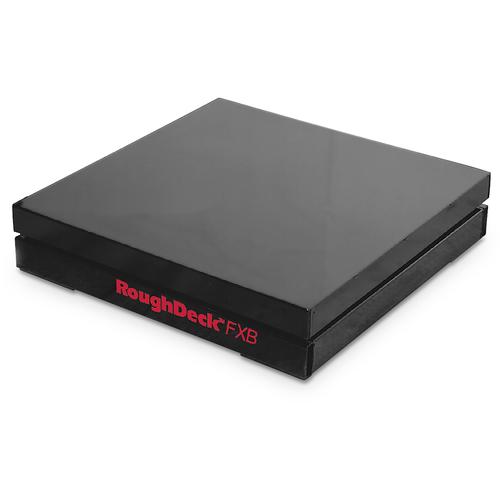

Rice Lake Roughdeck FXB Flexure Lever Floor Scales
The RoughDeck® FXB flexure lever floor scale’s unique flexure design filters motion and shock loading. The s-beam load cell is critical to the flexure functionality. Available in a variety of sizes and weight capacities, the RoughDeck FXB flexure lever floor scale is customizable to a vast array of applications, and its rugged, all-steel design withstands damage
Rice Lake Roughdeck FXB Flexure Lever Floor Scales
Base Only (Indicator Sold Separately)
Legal For Trade
Selected Models
Please Call (800)832-0055
or Email Us for help
Ordering this Scale
Specifications Chart

18 x 24 in
18 x 30 in
24 x 24 in

30 x 30 in
36 x 36 in
38 x 46 in

48 x 48 in
48 x 72 in
60 x 60 in

Stainless Steel
24 x 24 in
to 60 x 72 in

The RoughDeck® FXB flexure lever floor scale’s unique flexure design filters motion and shock loading. The s-beam load cell is critical to the flexure functionality. Available in a variety of sizes and weight capacities, the RoughDeck FXB flexure lever floor scale is customizable to a vast array of applications, and its rugged, all-steel design withstands damage
Painted Steel
  • Unique flexure design filters motion and shock loading
  • Spring steel flexures
  • Rugged all-steel painted construction
  • One Rice Lake Weighing Systems brand RL20000 series nickel-plated s-beam load cell and plated wire rope
  • NTEP Certified models in sizes 24 in x 24 in (500 lb) through 72 in x 96 in up to 10,000 lb capacity


Stainless Steel
  • Unique flexure design filters motion and shock loading
  • All 304 stainless steel construction
  • Stainless flexures, hardware and load cell
  • NTEP Certified models in sizes 24 in x 24 in (500 lb) through 72 in x 96 in up to 10,000 lb capacity


More About How Flexure Levers Work

Contact Us if you are interested in these Options

  • Forklift skid, painted steel FXB-3846 through FXB-6084 provides two eight-channels mounted on customer specified centers. Includes four leveling feet on base
  • Forklift skid with indicator column, painted steel FXB-3846 through FXB-6084 provides two eight-channel mounted on customer specified centers with one of the channels extended 12 in and equipped with bolt on indicator column. Indicator display will be 54 in above floor level
Rice Lake Roughdeck FXB Flexure Lever Floor Scales

Price From: $3757.50



Select Indicator (Must be added with scale)
Rice Lake 120 LED Digital Weight Indicator , Add $292.50
Rice Lake 120 Plus LCD Digital Weight Indicator , Add $405.00
Rice Lake 320IS Instriniscally-Safe Indicator with A/C Power Supply , Add $1566.00
Rice Lake 320IS Plus Instriniscally-Safe Indicator with A/C Power Supply , Add $1746.00
Rice Lake 482 Plus Legend Indicator , Add $652.50
Rice Lake 420 Plus with Indicator , Add $715.50
Rice Lake IQ Plus 390-DC with Indicator , Add $675.00
Rice Lake IQ Plus 590-DC with Indicator , Add $720.00
Indicator Column\Stand

Rice Lake 19352 Indicator Floor Stand Steel Painted 36.3in, add $184.50

Rice Lake 126384 Indicator Floor Stand Steel Painted 48 inch, add $202.50
18 x 24 in, 18 x 30 in and 24 x 24 in
Model 33134 33066 113566 33136 113567 33067 33068
60x72x11.25in - 10000 lb
$3,757.50
buy now
60x72x11.25in - 10000 lb
$3,757.50
buy now
60x72x11.25in - 10000 lb
$3,757.50
buy now
60x72x11.25in - 10000 lb
$3,757.50
buy now
60x72x11.25in - 10000 lb
$3,757.50
buy now
60x72x11.25in - 10000 lb
$3,757.50
buy now
60x72x11.25in - 10000 lb
$3,757.50
buy now
Size (L x W xH) 18 x 24 x 6.5 in 18 x 24 x 6.5 in 18 x 30 x 6.5 in 18 x 30 x 6.5 in 18 x 30 x 6.5 in 24 x 24 x 6.5 in 24 x 24 x 6.5 in
Capacity x Readability
With Indicator Sold Separately
500 x 0.1 lb
250 x 0.05 kg
1000 x 0.2 lb
500 x 0.1 kg
500 x 0.1 lb
250 x 0.05 kg
1000 x 0.2 lb
500 x 0.1 kg
1500 x 0.3 lb
750 x 0.15 kg
500 x 0.1 lb
250 x 0.05 kg
1000 x 0.2 lb
500 x 0.1 kg
Legal for Trade - NTEP CC 88-100, Class III 5,000 d
Est. Weight 125 lb 125 lb 133 lb 133 lb 133 lb 151 lb 151 lb
End Loading Capacity 100% of scale capacity
Safe Overload Capacity 150% of scale capacity
Warranty Two-year limited warranty
Approvals NTEP CC 88-100, Class III 5,000 d
FM Approved
Options Forklift skid, painted steel FXB-3846 through FXB-6084 provides two eight-channels mounted on customer specified centers. Includes four leveling feet on base
Forklift skid with indicator column, painted steel FXB-3846 through FXB-6084 provides two eight-channel mounted on customer specified centers with one of the channels extended 12 in and equipped with bolt on indicator column. Indicator display will be 54 in above floor level





30 x 30 in, 36 x 36 in and 38 x 46 in
Model 33138 33069 33139 33070 33140 33071 33072 33141 113569 113570
60x72x11.25in - 10000 lb
$3,937.50
buy now
60x72x11.25in - 10000 lb
$3,937.50
buy now
60x72x11.25in - 10000 lb
$3,937.50
buy now
60x72x11.25in - 10000 lb
$4,108.50
buy now
60x72x11.25in - 10000 lb
$4,108.50
buy now
60x72x11.25in - 10000 lb
$4,108.50
buy now
60x72x11.25in - 10000 lb
$4,108.50
buy now
60x72x11.25in - 10000 lb
$4,108.50
buy now
60x72x11.25in - 10000 lb
$4,108.50
buy now
60x72x11.25in - 10000 lb
$4,108.50
buy now
Size (L x W xH) 30 x 30 x 6.5 in 30 x 30 x 6.5 in 30 x 30 x 6.5 in 30 x 30 x 8.25 in 36 x 36 x 8.25 in 36 x 36 x 8.25 in 36 x 36 x 8.25 in 38 x 46 x 8.25 in 38 x 46 x 8.25 in 38 x 46 x 8.25 in
Capacity x Readability
With Indicator Sold Separately
500 x 0.1 lb
250 x 0.05 kg
1000 x 0.2 lb
500 x 0.1 kg
1500 x 0.3 lb
750 x 0.15 kg
2000 x 0.4 lb
1000 x 0.2 kg
1000 x 0.2 lb
500 x 0.1 kg
2000 x 0.4 lb
1000 x 0.2 kg
5000 x 1 lb
2500 x 0.5 kg
1000 x 0.2 lb
500 x 0.1 kg
2000 x 0.4 lb
1000 x 0.2 kg
5000 x 1 lb
2500 x 0.5 kg
Legal for Trade NTEP CC 88-100, Class III 5,000 d
Est. Weight 191 lb 191 lb 191 lb 281 lb 234 lb 234 lb 234 lb 610 lb 610 lb 610 lb
End Loading Capacity 100% of scale capacity
Safe Overload Capacity 150% of scale capacity
Warranty Two-year limited warranty
Approvals NTEP CC 88-100, Class III 5,000 d
FM Approved
Options Forklift skid, painted steel FXB-3846 through FXB-6084 provides two eight-channels mounted on customer specified centers. Includes four leveling feet on base
Forklift skid with indicator column, painted steel FXB-3846 through FXB-6084 provides two eight-channel mounted on customer specified centers with one of the channels extended 12 in and equipped with bolt on indicator column. Indicator display will be 54 in above floor level





48 x 48 in, 48 x 72 in and 60 x 60 in
Model 113572 33073 33074 33075 33078 33149 33080 33081 33082 33152
60x72x11.25in - 10000 lb
$4,738.50
buy now
60x72x11.25in - 10000 lb
$4,738.50
buy now
60x72x11.25in - 10000 lb
$4,738.50
buy now
60x72x11.25in - 10000 lb
$5,251.50
buy now
60x72x11.25in - 10000 lb
$6,030.00
buy now
60x72x11.25in - 10000 lb
$6,417.00
buy now
60x72x11.25in - 10000 lb
$6,417.00
buy now
60x72x11.25in - 10000 lb
$6,246.00
buy now
60x72x11.25in - 10000 lb
$6,462.00
buy now
60x72x11.25in - 10000 lb
$13,486.50
buy now
Size (L x W xH) 48 x 48 x 8.25 in 48 x 48 x 8.25 in 48 x 48 x 8.25 in 48 x 48 x 9.25 in 48 x 60 x 9.25 in 48 x 72 x 9.25 in 48 x 72 x 9.25 in 60 x 60 x 9.25 in 60 x 60 x 9.25 in 60 x 60 x 13.25 in
Capacity x Readability
With Indicator Sold Separately
1000 x 0.2 lb
500 x 0.1 kg
2000 x 0.4 lb
1000 x 0.2 kg
5000 x 1 lb
2500 x 0.5 kg
10000 x 2 lb
5000 x 1 kg
10000 x 2 lb
5000 x 1 kg
5000 x 1 lb
2500 x 0.5 kg
10000 x 2 lb
5000 x 1 kg
5000 x 1 lb
2500 x 0.5 kg
10000 x 2 lb
5000 x 1 kg
20000 x 4 lb
10000 x 2 kg
Legal for Trade NTEP CC 88-100, Class III 5,000 d
Est. Weight 654 lb 654 lb 654 lb 735 lb 845 lb 1120 lb 1120 lb 967 lb 1180 lb 1674 lb
End Loading Capacity 100% of scale capacity
Safe Overload Capacity 150% of scale capacity
Warranty Two-year limited warranty
Approvals NTEP CC 88-100, Class III 5,000 d
FM Approved
Options Forklift skid, painted steel FXB-3846 through FXB-6084 provides two eight-channels mounted on customer specified centers. Includes four leveling feet on base
Forklift skid with indicator column, painted steel FXB-3846 through FXB-6084 provides two eight-channel mounted on customer specified centers with one of the channels extended 12 in and equipped with bolt on indicator column. Indicator display will be 54 in above floor level








Stainless Steel 24 x 24 in to 60 x 72 in
Model 113581 113582 113586 113588 113595 113596 113613
60x72x11.25in - 10000 lb
$4,941.00
buy now
60x72x11.25in - 10000 lb
$4,941.00
buy now
60x72x11.25in - 10000 lb
$7,479.00
buy now
60x72x11.25in - 10000 lb
$8,181.00
buy now
60x72x11.25in - 10000 lb
$10,899.00
buy now
60x72x11.25in - 10000 lb
$13,599.00
buy now
60x72x11.25in - 10000 lb
$19,597.50
buy now
Size (L x W xH) 24 x 24 x 6.5 in 24 x 24 x 6.5 in 30 x 30 x 8.25 in 36 x 36 x 8.25 in 48 x 48 x 8.25 in 48 x 48 x 11.25 in 60 x 72 x 11.25 in
Capacity x Readability
With Indicator Sold Separately
500 x 0.1 lb
250 x 0.05 kg
1000 x 0.2 lb
500 x 0.1 kg
2000 x 0.4 lb
1000 x 0.2 kg
2000 x 0.4 lb
1000 x 0.2 kg
5000 x 1 lb
2500 x 0.5 kg
10000 x 2 lb
5000 x 1 kg
10000 x 2 lb
5000 x 1 kg
Legal for Trade NTEP CC 88-100, Class III 5,000 d
Est. Weight 151 lb 151 lb 281 lb 450 lb 630 lb 735 lb 1290 lb
End Loading Capacity 100% of scale capacity
Safe Overload Capacity 150% of scale capacity
Warranty Two-year limited warranty
Approvals NTEP CC 88-100, Class III 5,000 d
FM Approved
Options Forklift skid, painted steel FXB-3846 through FXB-6084 provides two eight-channels mounted on customer specified centers. Includes four leveling feet on base
Forklift skid with indicator column, painted steel FXB-3846 through FXB-6084 provides two eight-channel mounted on customer specified centers with one of the channels extended 12 in and equipped with bolt on indicator column. Indicator display will be 54 in above floor level

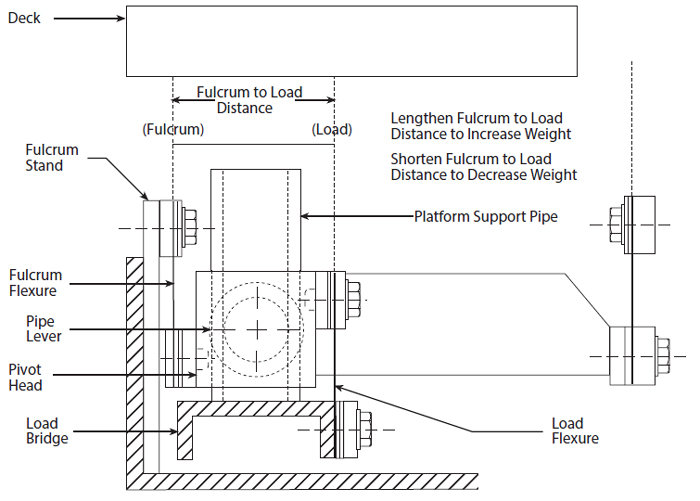

How Flexure Levers Work

In the RoughDeck FXB, flexure levers replace pivots and bearings for the fulcrum and load and power points on the lever. The multiple of the lever for a flexure is calculated in the same manner as a pivot and bearing lever system. The reference point of the flexure is the center line through the flexure itself,
