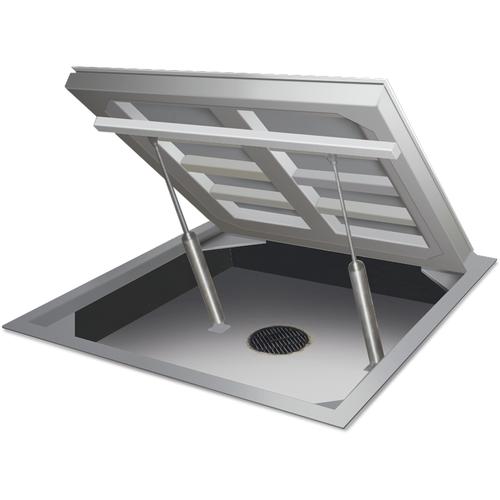

Rice Lake AutoLift HE Pit-type, Hostile Environment Stainless Steel Lift Floor Scale
With its own pneumatic lifting arm, the low-profile AutoLift HE floor scale takes efficiency and safety further by providing hands-free access for washdown demands. The remote TuffSeal™ JB4SS stainless steel NEMA Type 4X junction box can be remotely mounted up to ten feet from the scale, keeping sensitive electronics far from damaging chemicals and moisture.
Rice Lake Roughdeck AutoLift HE 42207 Pit-type, Hostile Environment Stainless Steel Lift Floor Scale 4 ft x 4 ft - Base Only - 2000 lb
Base Only Indicator Sold Separately

Specifications Chart

Please Call (800)832-0055
or Email Us for help
Ordering this Scale
Rice Lake Roughdeck QC Stainless Steel Lift Floor Scales

Price From: $4185.00



Select Indicator (Must be added with scale)
Rice Lake IQ Plus 210 Stainless Steel LED Digital Weight Indicator , Add $508.50
Rice Lake IQ plus® 390-DC Digital Weight Indicator , Add $675.00
Rice Lake IQ plus® 590-DC Digital Weight Indicator , Add $720.00
Rice Lake 420 Plus Digital Weight Indicator , Add $715.50
Rice Lake 480 LED Legend Series Digital Weight Indicator , Add $562.50
Rice Lake 482 LCD Legend Series Digital Weight Indicator , Add $652.50

For a full list of Rice Lake Indicators Click Here

Indicator Column\Stand

Rice Lake 28740 Indicator Floor Stand Stainless Steel 36.3 inch, add $279.00
With its own pneumatic lifting arm, the low-profile AutoLift HE floor scale takes efficiency and safety further by providing hands-free access for washdown demands. The remote TuffSeal™ JB4SS stainless steel NEMA Type 4X junction box can be remotely mounted up to ten feet from the scale, keeping sensitive electronics far from damaging chemicals and moisture.
  • Includes scale, pit frame, pit coping and pneumatic control box
  • Rugged washdown design
  • 304 stainless steel construction
  • Rigid 304 stainless steel channel frame
  • Manual, drop-in-place, safety bar
  • 4 stainless steel, welded seal, shear beam load cells
  • Load cells protected on all four sides
  • 20 ft of SURVIVOR® hostile environment load cell cable
  • Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
  • Smooth stainless steel deck
  • 4 adjustable stainless steel SUREFOOT™ support feet
  • Requires 85-100 psi air pressure, opens 43 degrees

Hands-free Hygiene

TuffSeal® Junction Box Protects Circuitry - Included with all models, the rugged, stainless steel TuffSeal junction box is specifically designed with a unique closure to prevent moisture ingress and protect sensitive circuitry. A Gore™ breather vent helps equalize pressure inside the enclosure that can be caused by sudden temperature or environmental changes.

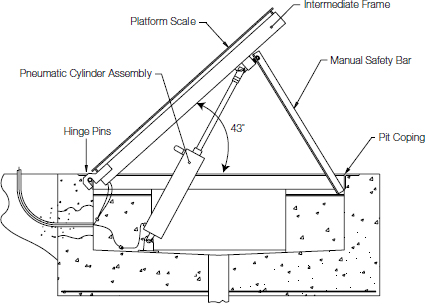

The AutoLift HE floor scale is engineered with a pneumatic scale-lifting system that permits ultimate access for cleaning in washdown environments

Rugged enough for excellent performance in harsh, corrosive environments, the Autolift HE design includes four IP67 welded seal load cells to maintain remarkable accuracy and durability. Its TuffSeal JB4SS stainless steel NEMA Type 4X junction box is UL approved for watertight protection and corrosion resistance.

Powerful, pneumatic lifting arms promote efficiency and safety by permitting automatic hands-free access to the scale’s undersurface for complete sanitation throughout the cavity. With automatic lifting arms and manually placed safety bars, the scale’s pit cavity is exposed securely for the duration of cleaning, minimizing hand contact with caustic industrial chemicals. Because of the AutoLift HE’s 304 stainless steel surface top and underside, it is ideal for extreme industry sanitation practices.

Available in a variety of sizes and load capacities from 2,000 to 10,000 pounds, the Autolift HE floor scale is the perfect solution for a wide range of washdown applications and facility sizes.

  • Load Cell Mounting Plate - Localized deflection of the load cell is minimized by welding the mounting plate to the channel frame rather than the deck plate
  • SUREFOOT ™ for Accuracy - SUREFOOT decreases extraneous forces on the load cell, resulting in superior accuracy and repeatability. A stainless steel cup sits on the sub-frame and bonds a pliable neoprene cushion to a stainless steel top plate with attached threaded stem, allowing the stem and top plate to move laterally and tilt independently of the bottom stainless steel cup.
  • Superior Structural Design - The AutoLift HE floor scale is a part of Rice Lakes line of RoughDeck® floor scales. RoughDeck floor scales are renowned for their durability and superior structural design, which is why the AutoLift HE floor scale carries a full five-year warranty on the deck structure.
  • Efficiency from the Ground Up - The Autolift HE floor scale features a pit mount design for a flush, floor-level weighing platform that is easy to load and unload. The junction box can be remotely mounted up to 10 feet from the scale, further isolating electronics from the damaging effects of cleaning the scale.
Models 42207 42208 42209 42211 42212 42213
Rice Lake Roughdeck AutoL
$10,980.00
buy now
 Rice Lake Roughdeck Auto
$10,980.00
buy now
 Rice Lake Roughdeck Auto
$11,340.00
buy now
Rice Lake Roughdeck AutoL
$13,050.00
buy now
Rice Lake Roughdeck AutoL
$13,050.00
buy now
Rice Lake Roughdeck AutoL
$13,410.00
buy now
Capacity x Readability 2000 x 0.5 lb 5000 x 1 lb 10000 x 2 lb 2000 x 0.5 lb 5000 x 1 lb 10000 x 2 lb
Size (W x L) 4 ft x 4 ft 4 ft x 4 ft 4 ft x 4 ft 5 ft x 5 ft 5 ft x 5 ft 5 ft x 5 ft
End Load Capacity 100% full scale at 2,000 lb, 5,000 lb
80% full scale at 10,000 lb
Remote Junction Box Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
Deck Smooth stainless steel deck
Load cells Four stainless steel, welded seal, shear beam load cells, protected on all four sides
Threaded Eyebolt Hole (1/2-20 NF) located in center of deck for easy lifting
Welding Stitch, consult factory if continuous is required
Cable 20 ft of SURVIVOR® hostile environment load cell cable
Warranty AutoLift HE weldment five years, load cells two years, all other components one year

Scale Dims

Scale Dims Scale Dims2 Scale Dims chart

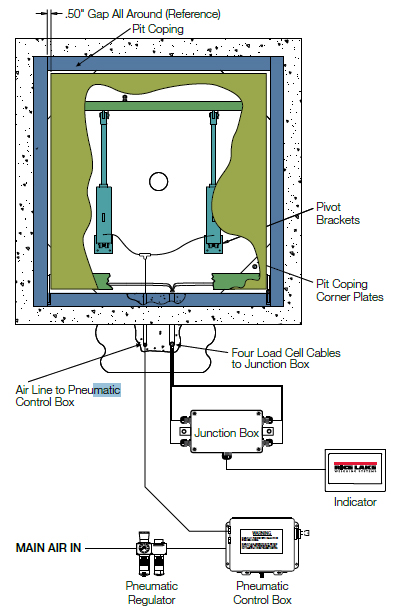

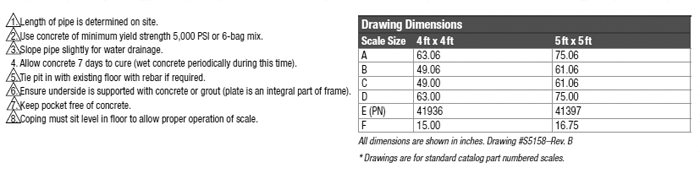

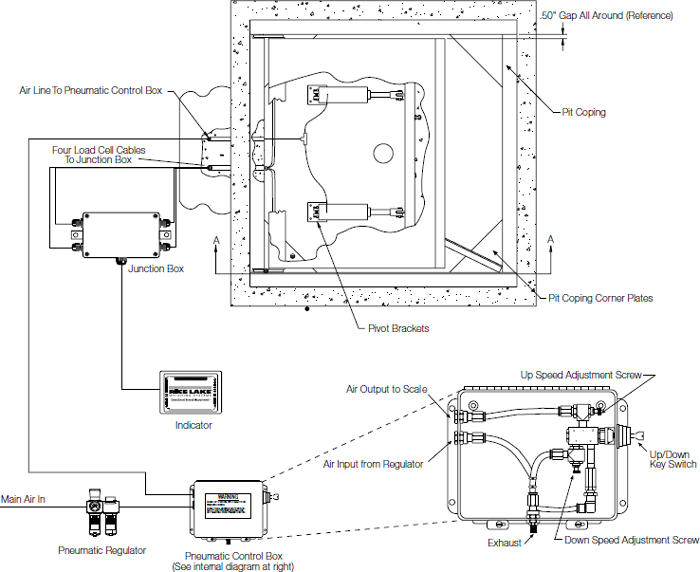

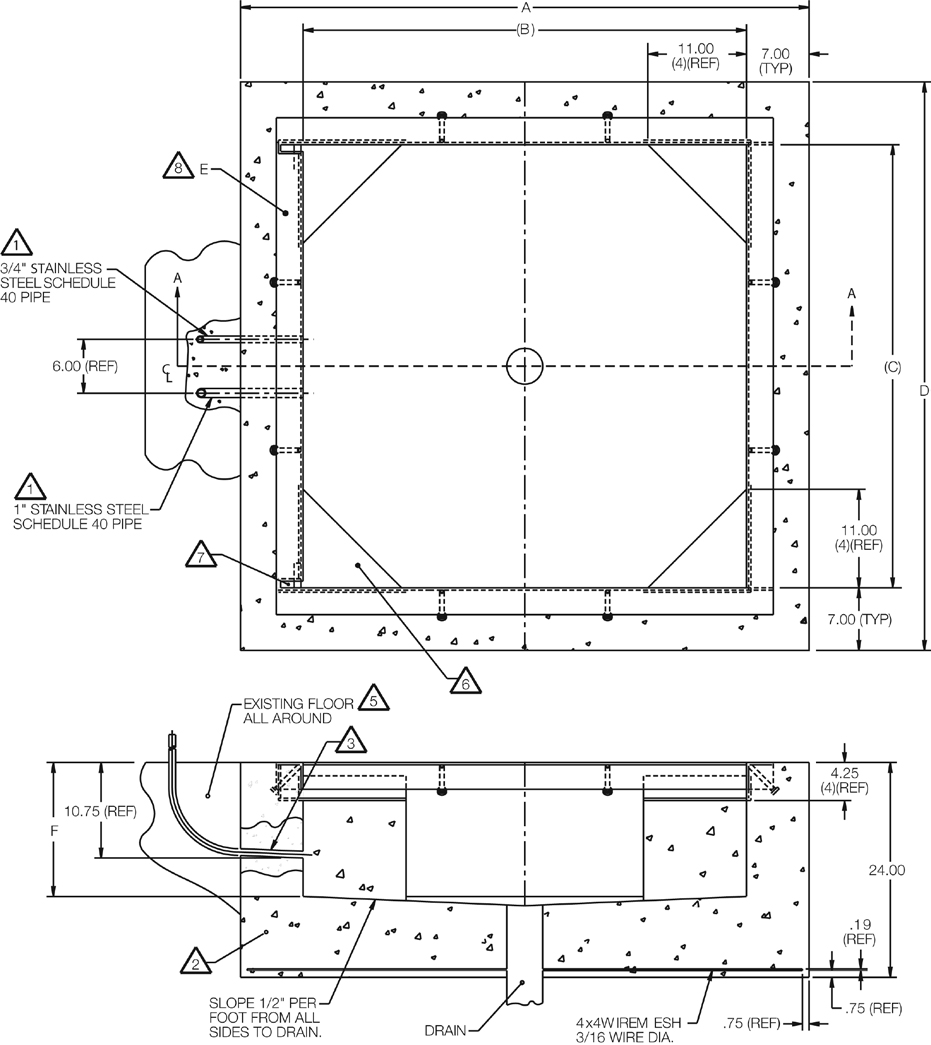

Pit Frame Dims

Pit Frame Dims Pit Frame Dims
