Legal For Trade Selected Models Specifications Chart Please Call (800)832-0055 or Email Us for help Ordering this Scale

Portable beam scales are well known for time-tested reliability and performance, and Rice Lakes RL1200 Series is designed to complement these demands. For agriculture, warehousing, or general industrial weighing, these cost-effective, cast-iron designs deliver the ultimate in portability and durability.

Standard Features

• NTEP Certified
• Cast iron construction
• 1000 lb capacity
• Conductive wheels to eliminate static build-up and discharge
• Handle for ease of portability
• Intrinsically safe indicator (see indicator section for specifications)

Model	195558 RL1200-IS	195560 RL1200-IS
	$3,422.65	$3,422.65
Capacity x Readability	1,000 x 0.5 lb	1,000 x 0.5 lb
Indicator	882IS Intrinsically-Safe Indicator	882IS Plus Intrinsically-Safe Indicator
Construction	Cast-iron platform, base and levers
Platform Dimensions	24 in x 18 in
Approvals	NTEP Certified 93-004 Class III 2,000d (avoirdupois beam only)
Warranty	One year limited warranty

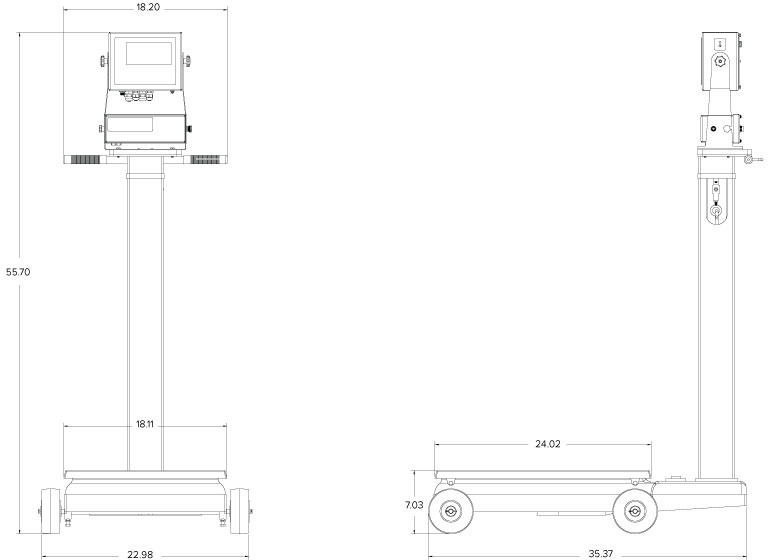

Dimensions

More About the 882IS Indicator (Included)

882IS Intrinsically-Safe Digital Weight Indicator The Hazardous Environment Instrumentation Solution Designed for hazardous locations that are potentially explosive, the 882IS digital weight indicator is built to safely operate in these settings without sacrificing performance. With cFMus, ATEX and IECEx approvals, the 882IS is the industry’s choice for flammable and combustible applications such as fuel refineries, chemical plants, distilleries, textile manufacturing and more.

Safe, Accurate Weight Readings in Hazardous Locations The intrinsically safe, auto-ranging power supply enables wiring to a single AC conduit line and seal from the safe area. An FM approved, rechargeable battery is also available for isolated power or movable applications. The 882IS utilizes a backlit LCD display to maintain brilliant visibility for user-friendly operation, even in dimly lit areas. Its stainless steel enclosure provides superior protection from the elements.

• Seven-digit, seven-segment LCD display with white LED backlight
• Stainless steel NEMA IP66 enclosure
• T4 temperature rating
• Front panel digital calibration
• Numeric keypad (882IS Plus only)
• Duplex fiber optic interface
• Power ON/OFF; battery save mode
• I/O module option: one serial port, optional analog outputs, optional fieldbus cards
• FM Entity Approved for use in hazardous locations per Rice Lake Weighing Systems control drawing file numbers 180948, 182301, and 186430

Model 91233 is included with this scale

Model	882IS			882IS Plus
	195091	185288	194235	195092	185291	194236
	$1,189.50	$1,914.90	$2,094.30	$1,189.50	$1,914.90	$2,094.30
Battery pack, Charger & Tilt Stand	-	Included	-	-	Included	-
A/C power supply	-	-	Included	-	-	Included
Front Panel Control Switches	Zero, Gross/Net, Tare, Print, Units Conv, Start, Stop			Zero, Gross/Net, Tare, Print, Units Conv, Start, Stop, Full numeric keypa
Front Panel	Ten-button plus power button flat membrane panel
Front Panel Annunciators	Center Zero, Gross, Net, Motion, lb, kg, oz, g
Legal For Trade	NTEP CC 03-078 Class III/IIIL 10,000d Measurement Canada AM-5560
Load Cell Excitation	3.0 VDC at 87.5 O, 4.6 VDC at 700 O
Load Cell Current	34 mA (4 x 350 O load cells) or (8 x 700 O load cells)
Intrinsic Safety:	FM/cFM: Class I,II,III, Division 1, Groups ABCDEFG T4 Class I, Zone 0 AEx/Ex ia IIC T4 Ga Zone 20 AEx/Ex ia IIIC T135°C Da Ta = -10°C to +40°C (14°F to 104°F ATEX/IECEx: II 1 G Ex ia IIC T4 Ga II 1 D Ex ia IIIC T135°C Da
Load Cell Cabling	Four and six-wire with remote sensing (recommended)
Analog Signal Input Range	0.6 mV/V - 4.0 mV/V
Analog Signal Sensitivity	0.2 µV/graduation minimum 1.5 µV/graduation recommended
Conversion Rate	60 updates/second
Resolution	10,000 displayed graduations (NTEP Certified),1,000,000 expanded The maximum number of allowed graduations will vary by application Display Increments:
Display Increments	1, 2, 5
Display	Seven-digit, seven-segment LCD display 121 x 24 dot matrix messaging area with white LED backlight
Decimal Point	Configurable with dead zeros
Unit Switching	Configurable for 2 units of measurement with front panel operation with conversion for tare and setpoint values
Motion Band	Configurable to ± 1 or ± 3 graduations, 1 second delay (or Off)
Power Input	5.8 - 7.9 VDC,100 - 175 mA Maximum power consumption 0.25 watts
Operating Temperature	14° F to 104° F (-10° C to 40° C) legal for trade
Electrical Operating Temperature	14° F to 104° F (-10° C to 40° C) legal
Rating/Material	Stainless steel IP66 enclosure
Optional Battery	Operating times: 4 x 350 O = 35-40 hrs 1 x 350 O =40-50 hrs 8 x 700 O = 35-40 hrs Charging Times: 10 hrs for dead battery, 14 hrs for initial charge
Weight	6.1 lb (2.8 kg)
Warranty	One-year limited warranty
Approvals	UL/cUL Listed* FM Entity ATEX IECEx NTEP Measurement Canada (pending)
