Itin Scale Company
Ohaus Digital Scale Indicators

Ohaus 3000/5000/7000/CD Series Indicators

3000 Series Indicators 5000 Series Indicators 7000 Series Indicators CD-Series Indicators
Ohaus 3000 Series Indicator

$255.20
T31P

$316.00
T32XW

$199.20
T32MC

$199.20
T32ME
The OHAUS 3000 series of economy indicators is ideal for general weighing and simple counting applications in production, packaging, warehouse, inventory, shipping and receiving areas. Ideal for bench and floor scale applications, the 3000 series offers either a dry-use, ABS plastic indicator housing or an IP66/NEMA4X water resistant stainless steel housing. Both indicators feature large, bright backlit displays, raised tactile keys and easy configurability. The 3000 series is the solution to your weighing applications that require dependability within an affordable budget.

Features:

  • T31P features a high-impact durable ABS housing with reversible rear cover for either wall, column or
    table-top mounting
  • T31XW features an IP66/NEMA4X water resistant stainless steel housing with integral faceplate supports
    for easy servicing
  • Large, backlit LCD display quickly displays results in a choice of multiple weighing units (lb, oz,
    combined lb:oz, kg or g)
  • Drives up to four 350? load cells
  • 10,000d maximum displayed weighing resolution
  • Parts counting mode with a minimum Average Piece Weight of 1d, selectable sample sizes, and automatic retention of last sample size used and Average Piece Weight data
  • Built-in bidirectional RS232C for printing or connection to PC
  • T31P includes an AC adapter and an internal rechargeable lead acid battery that lasts 100 hours between recharges
  • T31XW has an internal universal switching power supply
Model T31P T32XW T32MC T32ME
Price
$255.20

$316.00

$199.20

$199.20
Full Scale Capacity Range 5 to 20,000 lb or kg
Displayed Resolution 1:20,000 max / 1:6,000 NTEP Certified / Measurement Canada Approved
Legal for Trade NTEP 08-066 A1
Measurement Canada AM-5713C rev. 1;
NTEP 09-090
Measurement Canada 5747C;
Certifications - NEMA4X/IP65 - -
Construction ABS plastic Stainless steel NEMA 4X/IP65; includes stainless steel table-wall mount bracket ABS plastic front panel with painted carbon steel rear housing; includes painted carbon steel table-wall mount bracket
Weight Display 6-digit, 7-segment LCD 1 in. / 25 mm digit height, with high-contrast white LED backlight 6-digit, 7-segment red LED 0.8in / 20mm digit height
Keyboard 4-button mechanical switches, raised tactile keys 4-button membrane switch, raised tactile keys 4-button mechanical switches, raised tactile keys
Weighing Units lb, oz, lb-oz, kg, g
Extra Functions/Modes Parts Counting Parts Counting, Display Hold, Checkweighing, Weight Accumulation
Checkweigh Display - 3 LED: Red-green-yellow (Over-Accept-Under)
Minimum Average Piece Weight 1d
Load Cell Excitation / Input Sensitivity 5V DC / up to 3 mV/V (min 1 V/d)
Load Cell Drive Up to four 350 load cells
Stabilization Time Within 2 seconds
Zeroing Range 2% or 100% of capacity
Auto-zero Tracking Off, 0.5, 1 or 3 scale divisions
Span Calibration 5 lb or 5 kg to 100% capacity
Interface Bidirectional RS232C
Operating Temperature Range 14F to 104F / -10C to 40C
Maximum relative humidity 80 % for temperatures up to 31C / 88F, decreasing linearly to 50 % relative humidity at 40C / 104F, non condensing
Safety , EMC and Quality: EN60950, EN61326, FCC, CE, CULUS - ISO 9001:2008
Power 9 VDC, 0.5A, AC adapter or internal rechargeable, sealed lead-acid battery (100-hour typical operation with full charge) 100-240 VAC / 50-60 Hz, internal power supply or internal rechargeable, sealed lead-acid battery (58-hour typical operation with full charge) 9-12 VDC, 0.5A, external AC adapter
Enclosure Dimensions (W x D x H) 8.2 x 2.8 x 6.5 in.
210 x 71 x 168 mm
8.3 x 2.8 x 5.8 in.
212 x 71 x 149 mm
7.8 x 1.8 x 5.2 in
198 x 46 x 132 mm
Net Weight 3.6 lb / 1.6 kg 7.1 lb / 3.2 kg 1.5 lb / 0.7 kg
Shipping Dimensions (W x D x H) 10.7 x 9.3 x 6.9 in
272 x 235 x 175 mm
10.7 x 9.2 x 7.2 in
272 x 234 x 182 mm
10.7 x 9.2 x 7.2 in
271 x 234 x 182 mm
Shipping Weight 5.7 lb / 2.6 kg 9.7 lb / 4.4 kg 4.0 lb / 1.8 kg
Accesseries View



Ohaus 5000 Sereis Indicators
Ohaus digital scale indicators

T51P

Ohaus digital scale indicators

T51XW


$$359.20

$439.20

Ideal for bench and floor scale use, the T51XW has a NEMA4X/IP66 water resistant stainless steel housing, a large, bright backlit display, raised tactile keys, optional battery-powered use, and is easy set-up and use. The T51XW is your solution to wet weighing applications that require multiple functions, rugged construction, comprehensive yet intuitive software and multiple connectivity options. Also available in the T51P version which has all the same features, but is not NEMA 4x / IP66 approved.

Features:

  • NEMA 4X/IP66 water resistant stainless steel housing with integral faceplace supports for easy servicing
  • 30,000d maximum displayed weighing resolution with temporary display of 10x readability in weighing mode using quick key press
  • Quick display of results using large LCD with high-contrast white backlight
  • Easy to operate with 4-key membrane keypad with raised tactile keys
  • Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
  • Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, and Display Hold
  • Internal universal switching power supply with hardwired line cord Optional NiMH internal rechargeable power pack available
  • Includes RS232 interface with GMP/GLP data output including date and time
  • Optional interfaces include DC relay control kit, AC relay control kit, 2nd RS232 and RS485/422
Model T51P T51XW
price
$359.20

$439.20
Display resolution 1:30,000d
Counting resolution (without Auto-add) 1:300,000d
Minimum APW (without Auto-add) (lb/g) 0.1d
Weighing units kg, lb, g, oz, lb:oz, tonnes, custom
Weighing modes Static Weighing, Dynamic Weighing,
Counting, Checkweighing,
Percent Weighing, Display Hold
Housing ABS plastic with internal reinforcing ribs 304 stainless steel enclosure
Display 6-digit, 7-segment LCD, 25mm /1 inch high digits,
with high-contrast white LED backlight
Keyboard 4 function membrance switches, raised tactile keys
Ingress Protection - NEMA 4X/ IP66
Load Cell Excitation (V dc) 5V DC
Load Cell Drive Up to 8 x 350 ohm Load Cells
Load Cell input sensitivity Up to 3 mV/V
Stabilization time (seconds) Within 2 seconds
Auto Zero Tracking Off, 0.5, 1 or 3d
Zeroing range 2% or 100% of capacity
Span Calibration 1 kg / lb to 100% of capacity
Interface Built-in RS232 and External Tare Input included /
Optional 2nd RS232, RS422/485,
AC Relay or DC Relay available
Dimensions WxHxD (in/cm) 10.2 x 2.7 x 8.8 in /
260 x 71 x 224 mm
10.3 x 3 x 8.7 in /
262 x 76 x 212 mm
Net Wt. (lb/kg) 3.3 lb / 1.5 kg 7.7 lb / 3.5 kg
Shipping Wt. (lb/kg) 5.0 lb / 2.3 kg 9.5 lb / 4.3 kg
Shipping dimensions (WxDxH) (in/cm) 13 x 9.5 x 7 in /
330 x 240 x 180 mm
13 x 9.5 x 7 in /
330 x 240 x 180 mm
Operating Temperature Range 14F to 104F
-10C to 40C
Operating Humidity Range Maximum 80% up to 88F/31C,
decreasing linearly to 50% at 104F/40C
Powered By 100-240 VAC/ 50-60 Hz Internal universal power supply, line cord / 6 'C' cell batteries (not supplied) with 80 hour life/ Opt. int. rechargeable NiMH battery (10-hr. typical operation) 100-240 VAC/ 50-60 Hz Internal universal power supply, hardwire cord / Opt. int. rechargeable NiMH battery (10-hr. typical operation
Accesseries View

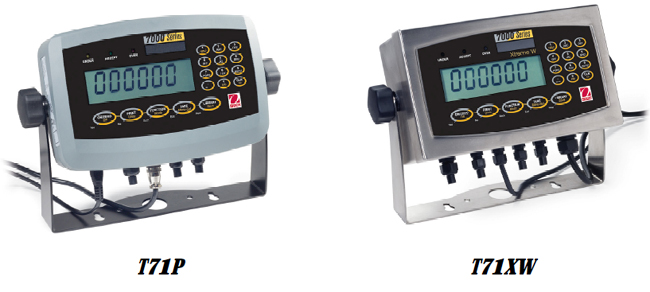

Ohaus 7000 Series Indicators

Ohaus digital scale indicators


$396.00

$479.20
The OHAUS 7000 series of multifunional indicators is ideal for a ranfe of application in production, packaging, warehouse, inventory, shipping and receiving areas. Ideal for bench and floor scale use, the 7000 series is available in both dry use, ABC plastic housing as well as NEMA4X/IP66 water resistant stainless steel housing. Both housings feature large. bright dual line backlit display, raised tectile keys, battery-powered use (optional on T71XW), and are easy set-up and use. The 7000 series is the solution to your weighing indicator applications that require multiple functions, rugged construction, comprehenisve yet intuitive software and multiple connectivity opti

  • T71XW High-impact, durable ABS plastic housing with reversible rear cover for either wall, column, scale front, or table-top mounting
  • T71XW NEMA 4X/IP66 water resistant stainless stell housing with integral faceplate supports for easy servicing.
  • 50,000d maximum displayed weighing resolution with temporary display of 10x readability in weighing mode using quick key press
  • Quick display of results using large LCD with high-contrast white backlight
  • Easy to operate with postive feedback 5-function key and alpha-numeric membrane keybord
  • Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
  • Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, Display Hold and Accumulation
  • 255 item library function
  • T71XW Internal universal switching power supply with hardwired line cord, T71P has the same internal power supply with universal line cord or can ber powered using 6 "c" batteries (80-hour battery life) -optional NIMH internal rechargeable power pack available for both indicator
  • Includes RS232 interface with GMP/GLP data output including date and time and external analog base input
  • Optional interfaces include DC relay control kit, AC relay control kit, 2nd RS232 and RS485/422


Model T71P T71XW
Price
$396.00

$479.20
Capacity Range 1 to 999,950 kg/Ib
Display resolution 1:50,000d
Counting resolution (without Auto-add) 1:500,000d
Minimum APW (without Auto-add) (lb/g) 0.1d
Weighing units kg, lb, g, oz, lb:oz, tonnes, custom
Weighing modes Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold
Housing ABS plastic with internal reinforcing ribs 304 stainless steel enclosure
Display 6-digit, 7-segment LCD, 25mm /1 inch high digits, with high-contrast white LED backlight
Keyboard Positive feedback membrane keys, 5 function keys and alpha-numeric keypad
Ingress Protection - NEMA 4X/ IP66
Load Cell Excitation (V dc) 5V DC
Load Cell Drive Up to 8 x 350 ohm Load Cells
Load Cell input sensitivity Up to 3 mV/V
Stabilization time (seconds) Within 2 seconds
Auto Zero Tracking Off, 0.5, 1 or 3d
Zeroing range 2% or 100% of capacity
Span Calibration 1 kg / lb to 100% of capacity
Interface Built-in RS232 and External Tare Input included / Optional 2nd RS232, RS422/485, AC Relay or DC Relay available
Dimensions WxHxD (in/cm) 10.2 x 2.7 x 8.8 in / 260 x 71 x 224 mm 10.3 x 3 x 8.7 in / 262 x 76 x 212 mm
Net Wt. (lb/kg) 3.3 lb / 1.5 kg 7.7 lb / 3.5 kg
Shipping Wt. (lb/kg) 5.0 lb / 2.3 kg 9.5 lb / 4.3 kg
Shipping dimensions (WxDxH) (in/cm) 13 x 9.5 x 7 in / 330 x 240 x 180 mm 13 x 9.5 x 7 in / 330 x 240 x 180 mm
Operating Temperature Range 14F to 104F
-10C to 40C
Operating Humidity Range Maximum 80% up to 88F/31C, decreasing linearly to 50% at 104F/40C
Powered By 100-240 VAC/ 50-60 Hz Internal universal power supply, line cord / 6 'C' cell batteries (not supplied) with 80 hour life/ Opt. int. rechargeable NiMH battery (10-hr. typical operation) 100-240 VAC/ 50-60 Hz Internal universal power supply, hardwire cord / Opt. int. rechargeable NiMH battery (10-hr. typical operation
Accesseries View
Ohaus CD-33 Indicators

Ohaus digital scale indicatorsThe Ohaus CD Industrial Indicator is the shape of things to come. The Ohaus CD-33 offers functions like basic weighing, parts counting, check weighing, animal weighing and more. Smart software and hardware are enclosed in a sharp contemporary housing. Designed to support up to four analog load cells in industrial and laboratory applications.

  • 5 weighing modes with custom unit for multi-functional weighing possibilities
  • Time, date and ID output throught built-in RS232 for GMP/GLP applications
  • Displayed resolution of up to 1:50,000 divisions

$468.00

Ohaus CKW-55 Checkweighing Indicators

Ohaus digital scale indicatorsThe Ohaus CKW-55 indicator offers speed, durability and ease-of-use -- designed for static checkweighing operations and other industrial applications--from general purpose to washdown.

The Ohaus CKW-55 is a full-featured static checkweighing indicator with simple functionality at a competitive price. Its multiple configurable checkweighing parameters and construction were designed with simplicity and dependability in mind that could translate to increased productivity, security and lower cost of ownership.

  • Unrivaled speed of set-up and configuration for production line efficiency Intelligent design provides ease of installation and maintenance Fast response time for higher productivity
  • NSF/USDA compliance for sanitary environments
  • Stainless steel housing, NEMA 4X / IP66, 3rd party certified
  • Includes wall-table mount bracket
  • Food Safety: NSF certified, USDA-AMS accepted, supports HACCP compliance
  • Configurable checkweighing setpoints: By range, variance by weight or percent
  • Checkweighing indication by: 3-color 24-segment bar graph, beeper and/or display alert
  • Dedicated checkweighing ´Target´ key with numeric keypad
  • 20-part Library storage for item no., over, under, target and pre-set tare values
  • High-contrast LED display with adjustable brightness
  • ´Supervisor mode´ with setup and function lockouts
  • Built-in RS232 with optional RS422/485 and AC/DC relay output
  • Built-in external remote input for tare, zero, print and other operations
  • Multiple weighing units: kg, g, lb, oz, lb:oz, %
  • Features: beeper alert, 20-part library, auto tare/on-accept, geo factor for local gravity adjustment, GMP/GLP compliant, time/date, accumulation, configurable RS232 commands, function lockout
  • 100-240 VAC universal power supply with optional internal rechargeable NiMH battery
  • 1:20,000 max displayed resolution, Geo factor, GMP-Time/Date, Auto-Tare/on Accept, Accumulation

$772.00

Specifications

Model Number

CD-31

CD-33

CKW-55

Price


$468.00


$468.00


$539.10

Capacity (lb/kg)

Up to 199,999

100,000

Graduation (lb/kg)

0.0005 to 100 (capacity dependant)

0.0002 to 50
(capacity dependant)
EC / OIML Approval YES NO YES
Geo Function NO YES

Displayed Resolution

1:10,000 LFT

1:20,000 non-LFT
Legal for Trade Type Approved Resolution NTEP 1:10,000 LFT 1:10,000 (NTEP pending)

Max Displayed Resolution

1:50000 Non LFT

1:20,000 non-LFT

Weighting Modes

lb, kg, g lg, kg, g, custom unit kg, lb g, oz, lb:oz, %
Parts Counting YES YES NO
Dynamic Weighing YES YES NO
Percent Weighing NO YES YES
Checkweighing NO YES YES
Time/Date/GMP NO YES YES
Standard RS232 YES YES YES

Functions

weighing, parts counting, animal weighing, percent, check weighing

weighing, checkweighing, percent weighing, USDA, NSF approved for food safety

Internal resolution

1:400,000

Over range capacity

Max capacity + 5 divisions

Stabilization time

1-4 seconds, depending on filter selection

within 2 seconds

Auto-zero tracking capture range

Off, 0.5, 1, or 3 divisions

Zeroing range

2%, 18% or 100% of capacity

Span Calibration

10% to 100% of capacity

1 kg/lb to 100% of capacity

Load cell excitation voltage

5VDC

Load Cell Drive

up to 4 x 350 ohm load cells

Display

Backlit LCD, 1 in / 2.54 cm digit height, 2 line, weight and prompt message

LCD, 1 in / 2.54 cm digit height, 2 line, weight and prompt message 3-color, 24 segment LED Bar Braph (checkweighing indication)
Operating Temperature Rane 14°F to 104°F / -10°C to 40°C

Power

AC Adapter

100-240 VAC / 50/60 Hz universal internal power supply hardwire cord or Rechargeable NiMH battery (optional)

Keyboard

8 Function, 4 Cursor Membrane Keys

12 function + 11 numeric keys

8 Function, 11 Numeric, with dedicated Tare and Target entry
Interface Bi-directional RS-232 with GMP data output Built in RS232 and external input (optional RS422/485, AC/DC relay)

Dimensions W X D X H

10 x 7.75 x 3.12 in / 25.4 x 19.68 x 7.92 cm

9 x 3 x 8.5 in / 230 x 75 x 217 cm (including bracket)

Net Weight

1.4 lb / 0.65 kg

6.6 lg / 3 kg

Model Number

CD-31

CD-33

CKW-55

top










Copyright ©1998-2017 Itin Scale Co., Inc. All rights reserved
sales@itinscales.com with comments or questions about this site

McAfee Secure sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams





Your account Search Contact Us Store Directory Home page Your account Contact Us Search our site Site map and product categories
