Ohaus Adventurer® AX Analytical and Precision Balances
Authorized Dealer
Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, ingenious draftshield, and much more, Adventurer is the most complete balance in its class
Analytical Balances >> Ohaus Scales

AX124,AX224,AX324,AX223,AX423,AX523

AX622,AX1502,AX2202,AX4202,AX5202,AX4201,AX8201

View Specifications Chart 0.0001g and 0.001g

View Specifications Chart 0.01g and 0.1g

The Most Complete Balance in its Class Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, ingenious draftshield, and much more, Adventurer is the most complete balance in its class

iTunes Promo iTunes Promo
Buy a Ohaus Adventurer® AX and get a free Printer or Buy a Ohaus Adventurer® AX and get a free Lab Kit
Standard Features Include:
  • Stability, Accuracy, and Fast Operation Ensure Optimal Weighing Results ? This trio of characteristics ensures the most important aspects of routine laboratory weighing are covered: accurate results you can count on extremely quickly.
  • Color Touchscreen & Connectivity Options Power a Modern Weighing Experience ? The wide viewing angle color touchscreen provides quick access to all of Adventurer?s applications, while dual USB ports with GLP/GMP tracking capabilities assist in the monitoring and reporting of data.
  • Space-saving Draftshield Improves User Experience and Accessibility ? The two piece, top-mounted draftshield doors open wide on both sides, providing ample room for sample placement, and also reduce the footprint of the draftshield in the rear of the balance when open.

Stability, Accuracy, and Fast Operation Ensure Optimal Weighing Results in Routine Weighing Tasks

Weighing Performance

  • Delivers stable and reliable weighing results for routine weighing tasks Stabilization Time
  • Adventurer?s fast stabilization time improves productivity in the laboratory Calibration
  • External Calibration ? Traditional calibration in which the operator manually calibrates the balance with their choice of calibration weight value to ensure accuracy available on every model.
  • AutoCal? ? Select models feature OHAUS? automatic internal calibration system that performs routine maintenance by calibrating the balance daily.

Ohaus Adventurer® AX Analytical and Precision Balances

FREE UPS Ground Shipping
(within the 48 continental US States)

Price: $1225.70


Ohaus SF40A Portable Dot-Matrix Impact Printer, add $684.00

Ohaus 80251396 Auxiliary Display Kit, add $45.90

Ohaus 80253384 Solids Density Determination Kit for Ohaus new Explorer and Discovery, add $534.60

Ohaus 83021085 Interface Cable, USB (Type A to B), EX, add $132.30

Ohaus 80850043 Security Device (470004-010) , add $158.40

Ohaus 80500524 RS232 Cable, PC 25-pin to Defender 5000 & 7000 with T7IP, T51P, add $132.30

Ohaus 80500525 RS-232 Cable PC 9 Pin , add $132.30


More info
Legal For Trade Canada Measurement Legal
Color Touchscreen Offers Easy and Fast Operation of Adventurer?s Applications
  • Operate and access Adventurer?s nine application modes and abundant features that eliminate the need to do several manual calculations through the modern color touchscreen
  • Operators can wear laboratory gloves while utilizing the touchscreen, eliminating the inconvenience and hazards associated with constantly putting on and removing gloves
  • In addition to the touchscreen, Adventurer also has six mechanical keys that provide tactile feedback and allow the operator to perform repetitive operations such as tare, zero, calibration, and print
  • Application Modes
  • Weighing - Determine the weight of items in the selected unit of measure.
  • Dynamic Weighing - Weigh an unstable load. Scale takes an average of weights over a period of time
  • Display Hold - Manually holds the last stable weight or highest weighing value on the display.
  • Parts Counting - Count samples of uniform weight.
  • Density Determination - Determine density of solids or liquid. With the weigh below hook, it?s possible to perform specific gravity tests for objects that cannot be easily placed on the weighing pan.
  • Totalization - Measure cumulative weight of multiple items. Cumulative total may exceed balance capacity.
  • Percent Weighing - Measure the weight of a sample displayed as a percentage of a preestablished Reference Weight.
  • Check Weighing - Compare the weight of a sample against target limits.
  • Formulation - For compounding and recipe making. The number of components can range from 2 to 50.
Equipped with the Connectivity and Functional Features Required in Laboratories
    Dual USB Ports
  • A front USB host port is easily accessible and makes it simple to load data from the balance on to a flash drive without having to reach around to the back or move the balance
  • A second USB device is located at the rear of the balance that can be used to connect the balance to a PC
  • The connectivity options help meet traceability requirements in traditional installations
    Real Time Clock with GLP/GMP Data
  • A real-time clock function keeps accurate time even during power loss and the GLP data capability has the ability to record Sample name, Project names and Balance ID?s to help meet traceability and compliance requirements
    Balance Profiles
  • The cloning feature allows you to save user and application settings to a USB flash drive which can be easily used to configure additional Adventurer balances
    Below Minimum Sample Weight Indication
  • When using the minimum weight feature, the display clearly indicates that your current sample weight is below your
Space-saving Draftshield Designed to Improve User Experience and Accessibility
  • Draftshield doors are constructed of two glass panels, reducing the space required on the lab bench when the doors are open
  • Wide door entry provides unobstructed access and allows larger weighing vessels to be easily placed on the pan, reducing the chance of accidental spillage
  • Easy to keep clean in order to ensure a safe workspace by minimizing contamination

Specifications Chart 0.0001g and 0.001g

Standard Models with
Internal Calibration
AX124 AX224 AX324 AX223 AX423 AX523
AX8201N/E
$2,550.00
ClickPrice
AX8201N/E
$2,805.00
ClickPrice
AX8201N/E
$3,151.80
ClickPrice
AX8201N/E
$1,488.35
ClickPrice
AX8201N/E
$1,751.00
ClickPrice
AX8201N/E
$2,013.65
ClickPrice
Capacity x Readability (g) 120 x 0.0001 220 x 0.0001 320 x 0.0001 220 x 0.001 420 x 0.001 520 x 0.001
Repeatability std (g) ±0.0001 ±0.001
Weighing Units gram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael, (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1)
Models with
External Calibration
AX124/E AX224/E - AX223/E AX423/E AX523/E
AX8201N/E
$2,308.60
ClickPrice
AX8201N/E
$2,555.95
ClickPrice
- AX8201N/E
$1,317.50
ClickPrice
AX8201N/E
$1,530.00
ClickPrice
AX8201N/E
$1,785.00
ClickPrice
Capacity x Readability (g) 120 x 0.0001 220 x 0.0001 320 x 0.0001 220 x 0.001 420 x 0.001 520 x 0.001
Repeatability std (g) ±0.0001 ±0.001
Weighing Units gram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael, (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1)
Legal For Trade
with Internal Calibration
- AX224N - - AX423N -
- AX8201N/E
$3,033.65
ClickPrice
- - AX8201N/E
$1,838.55
ClickPrice
-
Legal For Trade Models
with External Calibration
- - - AX223N/E AX423N/E AX523N/E
- - - AX8201N/E
$1,381.25
ClickPrice
AX8201N/E
$1,615.00
ClickPrice
AX8201N/E
$1,870.00
ClickPrice
All Scales
Legal For Trade Capacity x Readability (g) - 220 x 0.001 - 220 x 0.01 420 x 0.01 520 x 0.01
Class - I - II
Legal For Trade Weighing Units - Ict, grain, g, mg, oz, ozt, dwt - ct, grain, g, mg, oz, ozt, dwt, kg
Legal For Trade Approvals - NIST , Measurement Canada - NIST , Measurement Canada
Typical Operating Range (g)
(u=0.10%, k=2)
0.20g - 120g 0.20g - 220g 0.20g - 320g 2.0g - 220g 2.0g - 420g 2.0g - 520g
Optimal Operating Range (g)
(u=0.10%, k=2)
0.082g - 120g 0.082g - 220g 0.082g - 320g 0.82g - 220g 0.82g - 420g 0.82g - 520g
Sensitivity Drift (ppm/°C) 1.5 3
Linearity (g) ±0.0002 ±0.002
Stabilization Time (sec) <3 <2
Pan Size Ø 3.5 in / 90 mm Ø 5.1 in / 130 mm
Tare Range To capacity by subtraction
Power Requirements AC Adapter Input: 100-240 VAC 0.3A 50-60 Hz
AC Adapter Output: 12 VDC 0.84A
Display Type Full-Color Touchscreen WQVGA Graphic LCD
Display Size 4.3 in / 109 mm (diagonal)

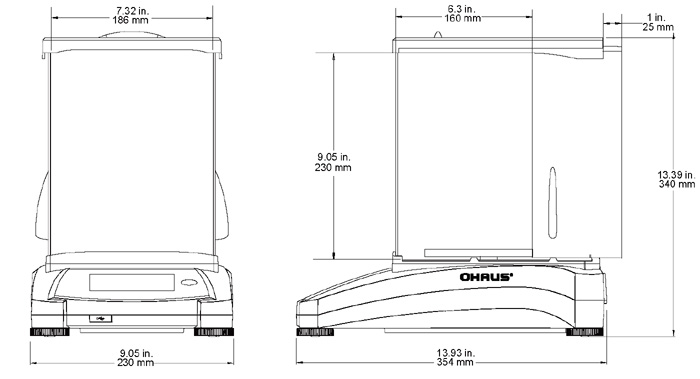

Base Housing (W×H×D) 13.93 x 13.39 x 9.05 in / 354 × 340 × 230 mm
Communication RS232, USB Device, USB Host
Temperature Range 50°F to 86°F/10°C to 30°C
Humidity Range Maximum relative humidity 80 % for temperatures up to 86°F/30°C
Storage Conditions 14°F/-10°C to 140°F/60°C at 10% to 90% relative humidity, non-condensing
Shipping Dimensions 20.0 × 15.4 × 20.9 in / 507 × 387 × 531 mm





Specifications Chart 0.01g and 0.1g

Standard Models with
Internal Calibration
- AX622 - AX1502 AX2202 AX4202 AX5202 - AX4201 AX8201
- AX8201N/E
$1,225.70
ClickPrice
- AX8201N/E
$1,488.35
ClickPrice
AX8201N/E
$1,663.45
ClickPrice
AX8201N/E
$1,926.10
ClickPrice
AX8201N/E
$2,101.20
ClickPrice
- AX8201N/E
$1,126.25
ClickPrice
AX8201N/E
$1,294.55
ClickPrice
Capacity x Readability (g) 420 x 0.01 620 x 0.01 820 x 0.01 1520 x 0.01 2200 x 0.01 4200 x 0.01 5200 x 0.01 2200 x 0.1 4200 x 0.1 8200 x 0.1
Repeatability std (g) ±0.01 ±0.1
Weighing Units gram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael, (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1)
Models with
External Calibration
AX422/E AX622/E AX822/E AX1502/E AX2202/E AX4202/E - AX2201/E AX4201/E AX8201/E
AX8201N/E
$807.50
ClickPrice
AX8201N/E
$1,020.00
ClickPrice
AX8201N/E
$1,020.00
ClickPrice
AX8201N/E
$1,275.00
ClickPrice
AX8201N/E
$1,445.00
ClickPrice
AX8201N/E
$1,700.00
ClickPrice
AX8201N/E
$832.15
ClickPrice
AX8201N/E
$963.05
ClickPrice
AX8201N/E
$1,094.80
ClickPrice
Capacity x Readability (g) 420 x 0.01 620 x 0.01 820 x 0.01 1520 x 0.01 2200 x 0.01 4200 x 0.01 5200 x 0.01 2200 x 0.1 4200 x 0.1 8200 x 0.1
Repeatability std (g) ±0.01 ±0.1
Weighing Units gram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael, (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1)
Legal For Trade Models
with External Calibration
- AX622N/E - AX1502N/E AX2202N/E AX4202N/E - - - AX8201N/E
- AX8201N/E
$1,071.00
ClickPrice
- AX8201N/E
$1,338.75
ClickPrice
AX8201N/E
$1,530.00
ClickPrice
AX8201N/E
$1,785.00
ClickPrice
- - - AX8201N/E
$1,138.15
ClickPrice
All Scales
Legal For Trade Capacity x Readability (g) - 620 x 0.1 - 1520 x 0.1 2200 x 0.1 4200 x 0.1 - - - 8200 x 1
Class - II - II - II
Legal For Trade Weighing Units - ct, grain, g, oz, ozt, dwt, lb, kg - ct, grain, g, oz, ozt, dwt, lb, kg - ct, grain, g, oz, ozt, dwt, lb, kg
Legal For Trade Approvals - NIST , Measurement Canada - NIST , Measurement Canada - NIST , Measurement Canada
Typical Operating Range (g)
(u=0.10%, k=2)
20.0g - 420g 20.0g - 620g 20.0g - 820g 20.0g - 1,520g 20.0g - 2,200g 20.0g - 4,200g 20.0g - 5,200g 200.0g - 2,200g 200.0g - 4,200g 200.0g - 8,200g
Optimal Operating Range (g)
(u=0.10%, k=2)
8.2g - 420g 8.2g - 620g 8.2g - 820g 8.2g - 1,520g 8.2g - 2,200g 8.2g - 4,200g 8.2g - 5,200g 82g - 2,200g 82g - 4,200g 82g - 8,200g
Sensitivity Drift (ppm/°C) 3 1.9 9
Linearity (g) ±0.02 ±0.2
Stabilization Time (sec) <1.5 <1.5
Pan Size 6.9 x 7.7 in / 175 x 195 mm
Tare Range To capacity by subtraction
Power Requirements AC Adapter Input: 100-240 VAC 0.3A 50-60 Hz
AC Adapter Output: 12 VDC 0.84A
Display Type Full-Color Touchscreen WQVGA Graphic LCD
Display Size 4.3 in / 109 mm (diagonal)

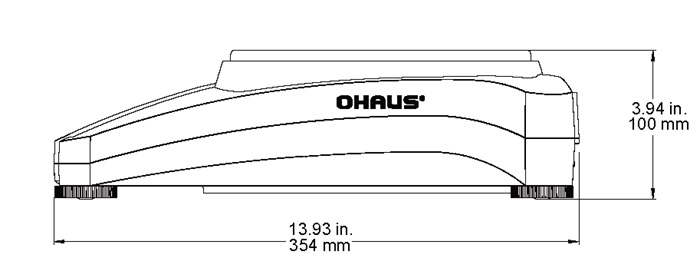

Base Housing (W×H×D) 13.93 × 3.94 × 9.05 in / 354 × 100 × 230 mm
Communication RS232, USB Device, USB Host
Temperature Range 50°F to 86°F/10°C to 30°C
Humidity Range Maximum relative humidity 80 % for temperatures up to 86°F/30°C
Storage Conditions 14°F/-10°C to 140°F/60°C at 10% to 90% relative humidity, non-condensing
Shipping Dimensions 22.0 × 15.5 × 11.9 in / 557 × 392 × 301 mm

Additional Features RS232 interface, integral weigh below hook, full housing in-use cover, removable stainless steel pan, die-cast metal bottom housing, security bracket, illuminated up-front level indicator, four adjustable feet, software lockout menus, stability indicator, software overload/underload indicators, user selectable environmental settings, audible indicator, user selectable brightness settings, auto dim, touchscreen calibration, auto tare, user selectable operating language (nine)

Approvals Metrology: NIST Handbook 44, Measurement Canada Weights and Measures Regulations (Class I, nmax 220000; Class II, nmax 52000) Product Safety: CSA C22.2 No. 61010-1, UL 61010-1, IEC 61010-1 Electromagnetic Compatibility: FCC Part 15 Class A, ICES-001 Class A, IEC 61326-1 (emissions Class B, immunity Industrial requirements)
