Mark-10 MR06-200 Wire Crimp Pull Sensor 200 x 0.1 lbF
Authorized Dealer
The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by a Mark-10 indicator.

View Specifications Cart

Specifications Chart

Mark-10 MR06-200 Wire Crimp Pull Sensor 200 x 0.1 lbF

FREE UPS Ground Shipping
(within the 48 continental US States)

Model:

The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by the indicator. A rotating turret with slots of multiple sizes accommodates a wide range of wire diamaters, up to 0.25 in. (6.4 mm).

Unique Plug & TestTM technology allows for interchangeable sensors to be used with a Mark- 10 indicator. All calibration and configuration data is saved in the smart connector.

The Plug & TestTM connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection.

Model MR06-200
Price MR06-200
$1,420.25
buy now
Capacity x Resolution
With Models 7i & 5i indicators
200 x 0.1 lbF
3200 x 2 ozF
100 x 0.05 kgF
1000 x 0.5 N
1 x 0.0005 kN
Capacity x Resolution
With Model 3i indicator
200 x 0.2 lbF
100 x 0.1 kgF
1000 x 1 N
Accuracy ±0.5% of full scale + indicator
Safe Overload 150% of full scale
Weight 2.5 lb [1.2 kg]
Slot Dimensions (in [mm]) 0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8], 0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4]

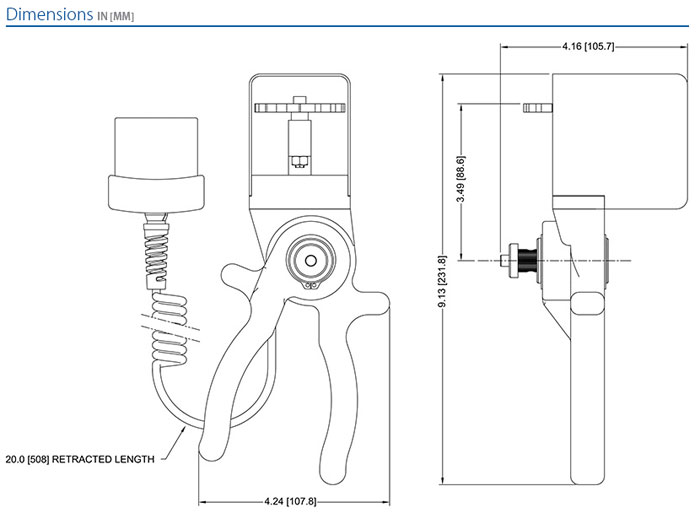

dims
