Mark-10 EKM5 Myometer Kit - Ergonomic Testing Systems
Authorized Dealer
The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals.
Mark-10 EKM5 Myometer Kit - Ergonomic Testing Systems

View Specifications Chart


Mark-10 EKM5 Myometer Kit - Ergonomic Testing Systems

FREE UPS Ground Shipping
(within the 48 continental US States)

Model:

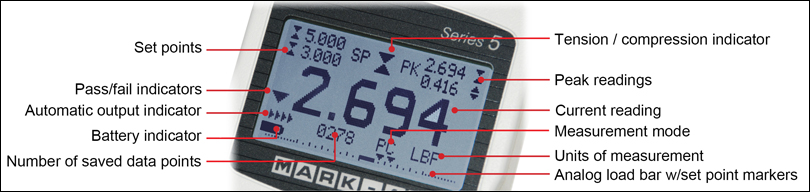

The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals. Display sample 1 Force Gauge Features & Specifications
  • Measures real time, average, and peak pull and push forces
  • 200 lbF (1,000 N) force capacity
  • Accuracy of ¡Ó0.1% of full scale
  • Sampling rate of 7,000 Hz
  • USB, RS-232, and analog outputs
  • High / low limit indicators, for pass / fail and minimum force testing
  • 1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESURR Lite data collection software.
  • Includes a full set of accessories and software - details on next page
  • Force gauge is compatible with other Mark-10 grips and attachments
    Included Items
  • M5-200 Advanced Force Gauge
  • Carrying case

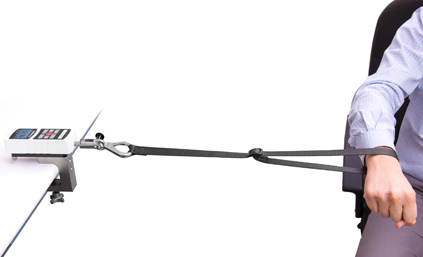

  • Tabletop mounting kit for force gauge, for vertical or horizontal orientations

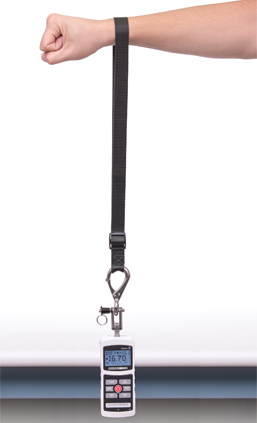

  • Adjustable length looped strap
  • Clevis and clasp hook attachments
  • AC adapter/charger
  • MESURR Lite data collection software - details below
  • USB cable
  • NIST-traceable certificate of calibration with data
    MESUR® Lite Software (Included)
  • Acquires and tabulates continuous, single-point, or saved data from the force gauge
  • One-click export to Excel
  • Configurable start and stop test triggers
  • Configurable number of readings per second, for continuous data acquisition
Sample 2
Model EKE5-200
Price Mark-10 EKM5-200 Myometer
$1,420.25
buy now
Capacity x Resolution: 200 x 0.05 lbF
3200 x 1 ozF
100 x 0.02 kgF
1000 x 0.2 N
1 x 0.0002 kN
Accuracy ± 0.1% of full scale
Sampling Rate 7,000 Hz
Units of Measurement lbF, ozF, kgF, N, KN
Output
  • USB / RS-232: Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control.
  • Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
  • Analog: ±1 VDC, ±0.25% of full scale at capacity
  • General purpose: Three open drain outputs, one input.
  • Set points: Three open drain lines.
Averaging mode Yes
On-board memory & statisics Yes
Continuous Data Captur Yes
Accessory Mounting Click-Lock Technology
Safe overload: 200% of full scale (display shows “OVER” at 110% and above)
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Warranty 3 years (see individual statement for further details)
