G1095 Bend Fixture for ASTM C393, C1161, D790 G1096 High Capacity Bend Fixture for ASTM C393, C1161, D790 G1097 Upper Anvil for Bend Fixtures for ASTM C393, C1161, D790 Specifications Chart

Mark-10 Bend Fixtures G1095 - G1096 - G1097 Select G1095 $902.50 G1096 $1,235.00 G1097 $171.00 View Spec Cart

Model	Price	Capacity lbF [kN]	Weight* lb [kg]	Housing material	Block material	Roller material	Includes
*G1095	$902.50	500 [2.5]	3.0 [1.3]	2024 Al	303 SS	416 SS, hardened	Screws for test stand mounting, two 10 mm dia. rollers and o-rings
*G1096	$1,235.00	2,000 [10]	7.1 [3.2]	2024 Al	303 SS	416 SS, hardened	Screws for test stand mounting, two 10 mm dia. rollers and o-rings
G1097	$171.00	2,000 [10]	0.5 [0.2]	303 SS	--	416 SS, hardened	10 mm. dia. roller and o-rings

*Including two blocks and 10 mm dia. rollers

Mark-10 G1095 Bend Fixture for ASTM C393, C1161, D790

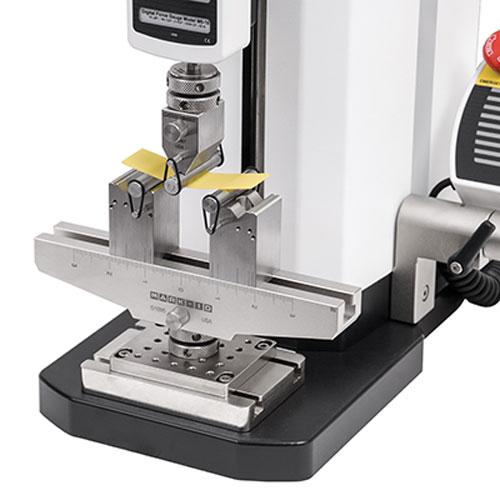

This family of bend fixtures is designed for 3-point and 4-point bend testing of plastics, metals, ceramics, tubing, and many other materials. Two base sizes are available, along with an upper anvil, and optional roller diameters. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing. The fixtures conform to ASTM C393, C1161, D790, and related standards.

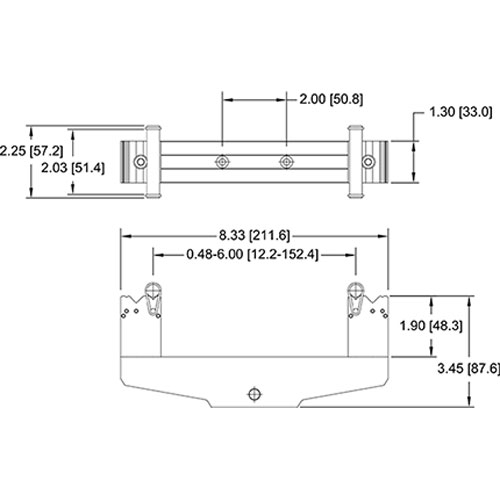

Bases feature movable blocks with multiple V-grooves to accept several roller diameters. 10 mm dia. rollers are included, and other sizes are available.

The bases feature engraved rulers, dual-graduated with an inch scale on one side and mm scale on the other. Integrated eye end receptacles facilitate mounting to load cells, force gauges, and test stands. The bases also include thru-holes and mounting screws for direct mounting to certain test stands.

• Designed for 3-point and 4-point bend testing
• Accommodate a broad sample size range
• Rugged design
• Dual graduated rulers - in and mm
• Compatible with the following test stands: ESM303, ESM1500, TSFM500-DC, ES30, TSA750 (with optional loading table), TSC1000, TSF. Recommended for use with a motorized test stand.
• May be used with eye end adapters or mounted to test stands with mounting screws (except anvil - eye end mounting only).

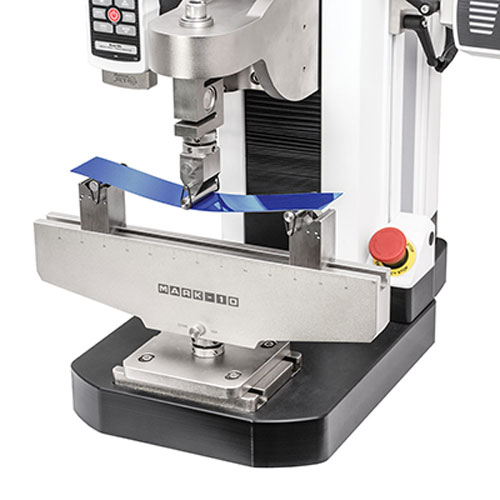

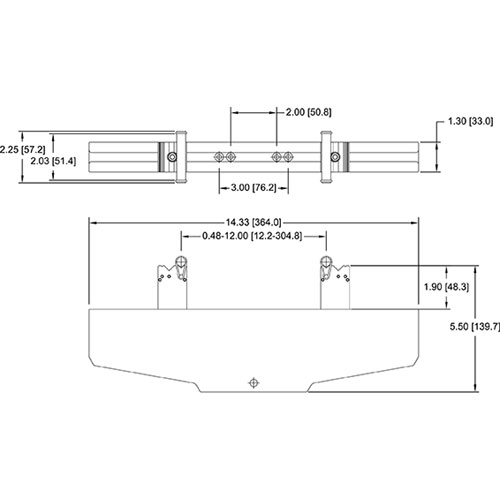

Mark-10 G1096 High Capacity Bend Fixture for ASTM C393, C1161, D790

This family of bend fixtures is designed for 3-point and 4-point bend testing of plastics, metals, ceramics, tubing, and many other materials. Two base sizes are available, along with an upper anvil, and optional roller diameters. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing. The fixtures conform to ASTM C393, C1161, D790, and related standards.

Bases feature movable blocks with multiple V-grooves to accept several roller diameters. 10 mm dia. rollers are included, and other sizes are available.

The bases feature engraved rulers, dual-graduated with an inch scale on one side and mm scale on the other. Integrated eye end receptacles facilitate mounting to load cells, force gauges, and test stands. The bases also include thru-holes and mounting screws for direct mounting to certain test stands.

• Designed for 3-point and 4-point bend testing
• Accommodate a broad sample size range
• Rugged design
• Dual graduated rulers - in and mm
• Compatible with the following test stands: ESM303, ESM1500, TSFM500-DC, ES30, TSA750 (with optional loading table), TSC1000, TSF. Recommended for use with a motorized test stand.
• May be used with eye end adapters or mounted to test stands with mounting screws (except anvil - eye end mounting only).

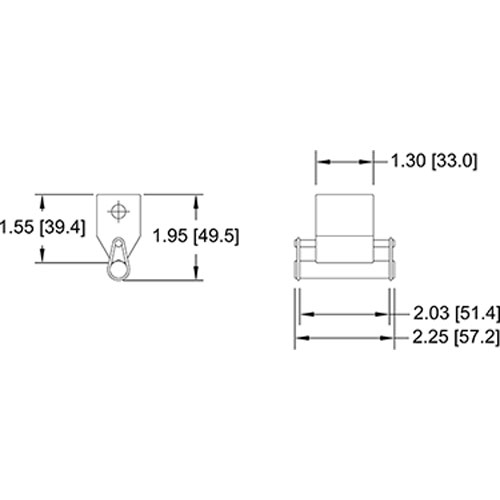

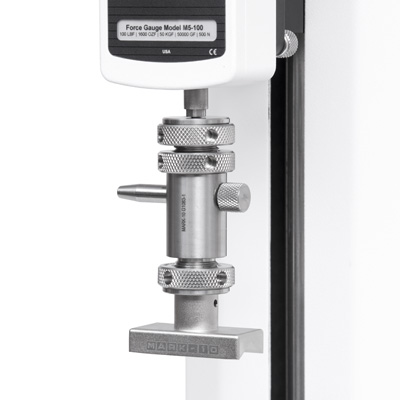

Mark-10 G1097 Upper Anvil for Bend Fixtures for ASTM C393, C1161, D790

This family of bend fixtures is designed for 3-point and 4-point bend testing of plastics, metals, ceramics, tubing, and many other materials. Two base sizes are available, along with an upper anvil, and optional roller diameters. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing. The fixtures conform to ASTM C393, C1161, D790, and related standards.

Bases feature movable blocks with multiple V-grooves to accept several roller diameters. 10 mm dia. rollers are included, and other sizes are available.

The bases feature engraved rulers, dual-graduated with an inch scale on one side and mm scale on the other. Integrated eye end receptacles facilitate mounting to load cells, force gauges, and test stands. The bases also include thru-holes and mounting screws for direct mounting to certain test stands.

• Designed for 3-point and 4-point bend testing
• Accommodate a broad sample size range
• Rugged design
• Dual graduated rulers - in and mm
• Compatible with the following test stands: ESM303, ESM1500, TSFM500-DC, ES30, TSA750 (with optional loading table), TSC1000, TSF. Recommended for use with a motorized test stand.
• May be used with eye end adapters or mounted to test stands with mounting screws (except anvil - eye end mounting only).

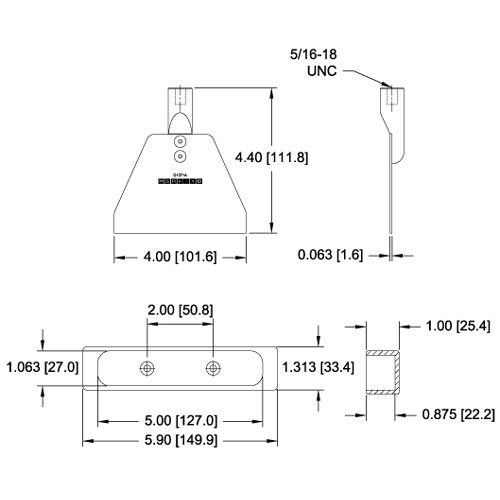

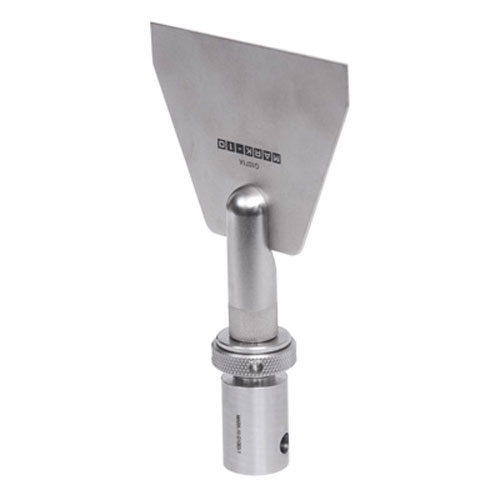

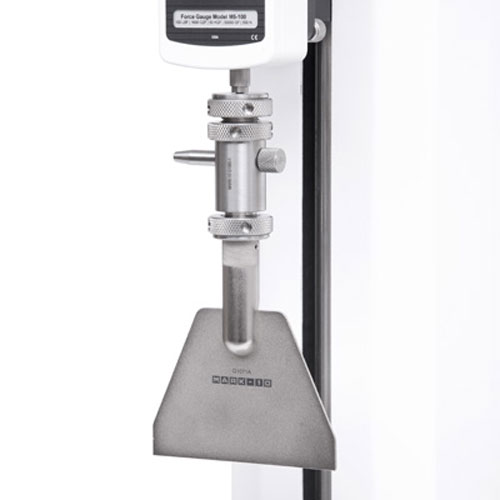

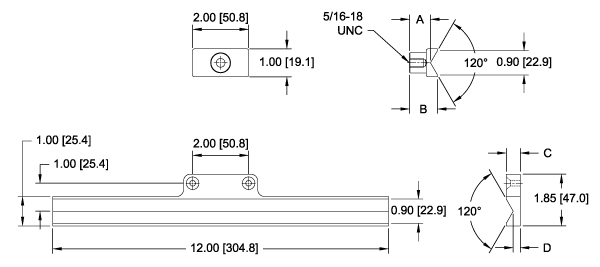

Mark-10 G1071 TAPPI T829 Score Bend Fixture

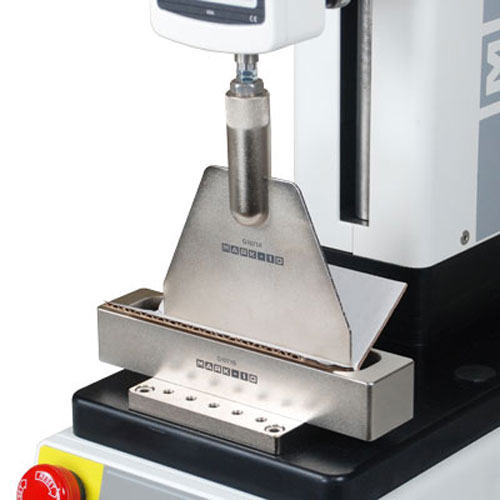

This set of fixtures is used to produce a 90° bend in fiber board materials and plastics. The fixtures are compliant to TAPPI standard T829 for evaluating the relative quality of scores in corrugated containers.

Upper and lower fixtures are easily removable.

Use this fixture with a choice of test stand and force gauge to create a complete score bend testing system.

Note: These fixtures are designed for compatibility with a Mark-10 force gauge and test stand. The resulting value displayed on the force gauge will be a force value. The abstract score ratio as called for in T829 is not automatically calculated.

• Set of upper and lower dies produce 90 degree bend in corrugated board and plastics
• Meets the requirements of TAPPI T829
• Fixtures are easily removable
• Maximum force: 50 lbF (250 N)
• Mounts directly to the following test stands: ESM, ESM303, ES30, TSC1000, TSF, TSFM500, ES10/ES20 (when ordered with optional AC1060 mounting plate). A motorized test stand is required to fufill the test speed requirement of TAPPI T829.

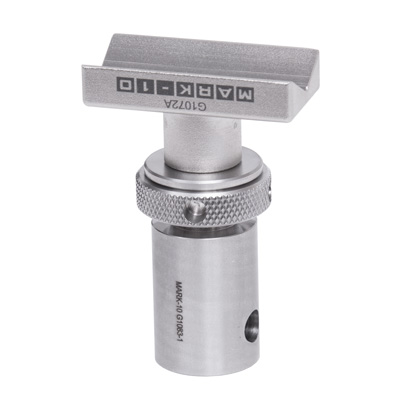

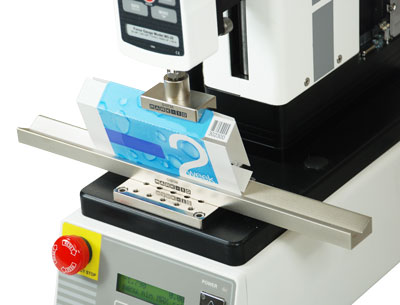

Mark-10 G1072 Opening Force Fixture Set

Used to determine the opening force of flat folded cartons along their score lines. Ideal for numerous applications in the packaging, food and beverage, medical device, consumer products, and many other industries.

Upper and lower fixtures are easily removable.

Use this fixture with a choice of test stand and force gauge to create a complete score bend testing system.

• Set of upper lower dies provided to accommodate various sized packaging materials
• Fixtures are easily removable
• Maximum force: 50 lbF (250 N)
• Mounts directly to the following test stands: ESM, ESM303, ES30, TSC1000, TSF, TSFM500, ES10/ES20 (when ordered with optional AC1060 mounting plate). A motorized test stand is recommended.
• Upper die includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts.
• Lower die includes mounting hardware for above listed test stands.
