Imada Digital Torque Screwdriver
Authorized Dealer
GLK Digital Torque Screwdrivers are compact, lightweight, and feature, LED?and audible alarms, ergonomic handle, push button controls, and are battery powered. Measure torque in peak or real time modes. Measure torque in peak or real time modes. Auto zero mode resets peak measurements automatically (1-10 seconds).

Specifications Chart

Imada Digital Torque Screwdriver




call now
GLK Digital Torque Screwdrivers are compact, lightweight, and feature, LED?and audible alarms, ergonomic handle, push button controls, and are battery powered. Measure torque in peak or real time modes. Measure torque in peak or real time modes. Auto zero mode resets peak measurements automatically (1-10 seconds).
  • Rugged, high quality production tools
  • High accuracy ±1.5% F.S. both CW and CCW directions
  • Selectable units, ozf-in, lbf-in, cN-m
  • Peak, peak with auto zero reset and Real Time modes
  • Five programmable torque presets ideal for frequent operations.
  • Pass/Fail mode counts fasteners tightened within programmed High/Low limits, using LED and audible alerts
  • ISO-6789 Compliant
  • Kit includes screwdriver with 1/4" square drive, 1/4" square drive to 1/4" hex magnetic adapter, Phillips tip, battery, carrying case and calibration certificate traceable to NIST
  • Optional ratchet (RA-50) with 1/4" square drive, CW, CCW and fixed operation is available

GLK Digital Torque Screwdrivers are compact, lightweight, and feature, LED and audible alarms, ergonomic handle, push button controls, and are battery powered.

Measure torque in peak or real time modes. Auto zero mode resets peak measurements automatically (1-10 seconds). Selectable units of ozf-in, lbf-in, and cN-m.

Five programmable torque presets stored in memory enable the user to check frequently used values. The presets alert the user with an intermittent signal at 90% and a continuous signal at 100% of the preset torque value using LED and audible indicators which enable users to tighten to within 10% of a preset torque value.

Pass/Fail mode counts the number of fasteners tightened within programmed high and low torque limits.

Specifications:

Accuracy: ±1.5% F.S.

Measuring direction: CW and CCW

Measuring unit: Selectable ozf-in, lbf-in, cN-m

Data Memory: 5 (storable Target torque values), 1 (Pass/Fail Mode)

Auto Shut OFF: Auto shut off after selectable interval of non-use (1~10 min.)

Battery: Lithium coin battery CR2354

Battery Life: Approx. 2 months (100 usages per day)

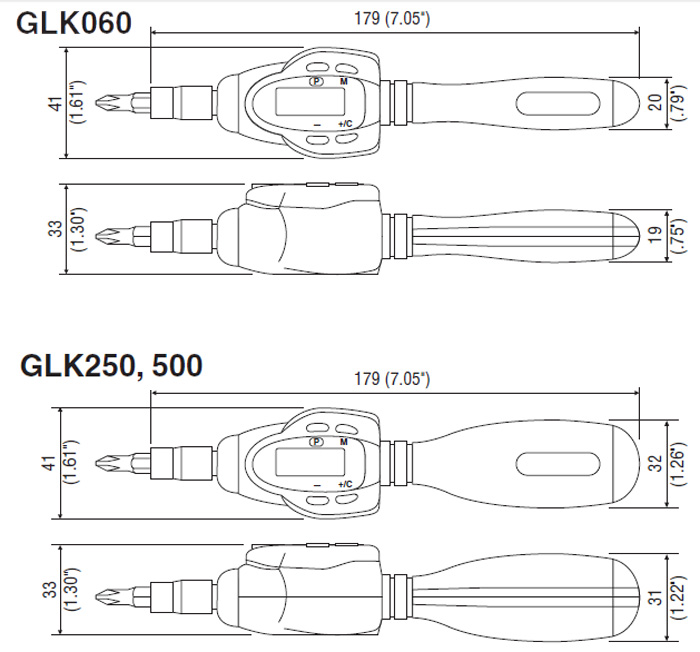

Models GLK-060E GLK-250E GLK-500E
Imada GLK060E - Digital T
$485.00
buy now
Imada GLK250E - Digital T
$485.00
buy now
Imada GLK500E - Digital T
$485.00
buy now
Capacity x Readability 0.05~5.31 lbf-in 0.22~22.13 lbf-in 0.44~44.25 lbf-in
0.9~85.0 ozf-in 3.5~354.0 ozf-in 7.1~708.0 ozf-in
0.60~60.00 cN-m 2.5~250.0 cN-m 5.0~500.0 cN-m
Accuracy ±1.5% F.S.
Measuring direction CW with display facing you, CCW with display facing away from you
Measuring unit Selectable lbf-in, lbf-ft, kgf-m, N-m
Data Memory 5 (storable Target torque values), 1 (Pass/Fail Mode)
Auto Shut OFF Power automatically turns off after 2 minutes of non-use
Battery Lithium coin battery CR2354
Battery Life Approx. 2 months (100 usages per day)
