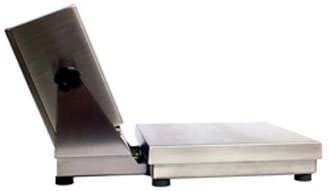

Doran 7000XL-ABR Legal For Trade Washdown Bench Scale with Attachment Bracket Adam Equipment
Authorized Dealer
Take the 7000XL-ABR to new levels with the enhanced features made possible with the new Excel Series Design. Choose from a variety of communication options include Wired or Wireless Ethernet. Control a mixing or batching operation by simply adding setpoints and relays.

View Specifications Chart

The Doran Excel Series 7000XL is the latest evolution of our time-proven 7000XL Series Scales. For years it?s been a workhorse in the toughest of working environments, now it can be put to work in a wider variety of tasks with the Excel Series Design. From a simple dough scale on a baker?s bench to a data collection instrument connected to a computer network, the 7000XL is adaptable to fit your specific needs.


Legal for Trade

Washdown Safe
Superior washdown protection has been engineered into the Model 7000XL Bench Scale. The 7000XL indicator features an innovative gasket design that provides NEMA4X and IP69K protection - even in the harshest working environments.

1000% Overload DXL Base
Our unique ?Quad-Spring©? design protects the sensitive load cell from shock and overload damage. Protected to a maximum of 10 times the base load rating sets the new industry standard - a feature only available from Doran

Heavy Duty Touch Panel
Engineered to stand up in the harshest environment, the sealed, super tough ?Guardian©? touch panel resists moisture and puncture damage. Simple controls - ZERO, UNITS, and PRINT - make it easy to use, quick to train employees and prevents operator error.

Powerful Excel Features & Options
Take the 7000XL to new levels with the enhanced features made possible with the new Excel Series Design. Choose from a variety of communication options including Wired or Wireless Ethernet. Control a mixing or batching operation by simply adding setpoints and relays.

Easy to Operate
The basic controls are all here - Zero, Units, and Print, you can't get any simpler than that. The benefit to you is a scale that is easy to operate and train employees to use - reducing operator error.

Excel Series Features
    Communication Interfaces
  • Programmable, Bi-directional RS-232 interface
  • Optional Interfaces: USB 2.0, RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (wired or Wireless - 802.11b), User definable data output
    Optional Setpoints
  • Up to 8 setpoints are available for use in process control, Accept/Reject, 4 Internal Relays or 8 Digital Outputs
    Advanced Features
  • Accumulator, Counter, Grading Scale, and Peak & Hold - Standard
  • Dimension setup and communications Windows software.
Powerful New Excel Design
  • Communications Interface
    • Communications Interface Programmable, Bi-directional RS-232 interface
    • Optional Interfaces: USB 2.0, RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (Wired or Wireless - 802.11b), User definable data output, all Field Installable Options
  • Optional Setpoints
    • Up to 8 setpoints are available for use in process control, Accept/Reject, 4 Internal Relays or 8 Digital Outputs
  • Advanced Features
    • Accumulator, Counter, Grading Scale, and Peak & Hold
    • Introducing the New Dimension setup and communications Windows software
Doran 7000XL-ABR
Legal for Trade Washdown Scale with Attachment Bracket

Price From: $1368.00



Options Must be added with scale

(Some Factory Installed)

Communications & Data Output
Doran EXOPT300 Bluetooth Internal Communications & USB Adapter
Doran EXOPT300 Bluetooth Internal Communications & USB Adapter, add $209.00
Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit
Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit, add $65.00
Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D
Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D, add $71.25
Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D
Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D, add $71.25

Printer
Doran LR350 Label Printer (PRT0350-C)
Doran LR350 Label Printer (PRT0350-C), add $540.00
Power Options
Doran EXOPT308 Internal Rechargeable Battery Providing up to 60 hours of continuous use
Doran EXOPT308 Internal Rechargeable Battery Providing up to 60 hours of continuous use, add $104.50
Remote Switch
Doran EXOPT115 Remote Switch Configured for remote ZERO
Doran EXOPT115 Remote Switch Configured for remote ZERO, add $81.00
Doran EXOPT116 Remote Switch Configured for remote PRINT
Doran EXOPT116 Remote Switch Configured for remote PRINT, add $81.00
Doran EXOPT117 Remote Switch Configured for remote UNITS
Doran EXOPT117 Remote Switch Configured for remote UNITS, add $81.00
Model *7002XL/88-ABR 7005XL/88-ABR 7010XL/88-ABR 7025XL/88-ABR *7002XL-ABR 7005XL-ABR 7010XL-ABR 7025XL-ABR 7050XL-ABR 7050XL/12-ABR 7100XL/12-ABR
Doran 7002XL/88-ABR Bench
$1,368.00
buy now
Doran 7005XL/88-ABR Legal
$1,368.00
buy now
Doran 7010XL/88-ABR Legal
$1,368.00
buy now
Doran 7025XL/88-ABR Legal
$1,368.00
buy now
Doran 7002XL-ABR Bench Sc
$1,381.50
buy now
Doran 7005XL-ABR Legal Fo
$1,381.50
buy now
Doran 7010XL-ABR Legal Fo
$1,381.50
buy now
Doran 7025XL-ABR Legal Fo
$1,381.50
buy now
Doran 7050XL-ABR Legal Fo
$1,381.50
buy now
Doran 7050XL/12-ABR Legal
$1,485.00
buy now
Doran 7100XL/12-ABR Legal
$1,485.00
buy now
Capacity x Readability lb 2 x 0.0005 5 x 0.001 10 x 0.002 25 x 0.005 2 x 0.0005 5 x 0.001 10 x 0.002 25 x 0.005 50 x 0.01 50 x 0.01 100 x 0.02
kg 0.9 x 0.2g 2.3 x 0.5g 4.5 x 1g 11.3 x 2g 0.9 x 0.2g 2.3 x 0.5g 4.5 x 1g 11.3 x 2g 22.7 x 5g 22.7 x 5g 45 x 10g
oz 35 x 0.01 80 x 0.02 160 x 0.05 400 x 0.1 35 x 0.01 80 x 0.02 160 x 0.05 400 x 0.1 800 x 0.2 22.7 x 5g 1600 x 0.5
Platter Size 8" x 8" 10" x 10" 12" x 12"
Legal for Trade NOT
Legal for Trade
Indicator: CC# 99-129A4 NTEP Class III - Base: CC# 97-097A1 NTEP Class III
NOT
Legal for Trade
Indicator: CC# AM-5347 Canada Class III - Base: CC# AM-5241 Canada Class III
NTEP Resolution NOT
Legal for Trade
5000d 5000d 5000d NOT
Legal for Trade
5000d 5000d 5000d 5000d 5000d 5000d
Computer Interface Bi-directional RS-232 (standard)
Washdown NEMA4 x / IP69 rated
Display 6 digit red LED 0.56" High
Controls: Zero, Units and Print
Indicators lb, kg, g, oz, NEG, ZERO and MOT
Units lb, kg, g, oz or lb:oz
Power 115 VAC, 50/60 Hz (230 VAC Optional); EMI/ESD protected
Construction 304 Stainless Steel
Warranty Two Year Parts & Labor
* Not Legal for Trade
