Cardinal CWL-40 Portable Axle Weigher Cardinal Detecto
Authorized Dealer

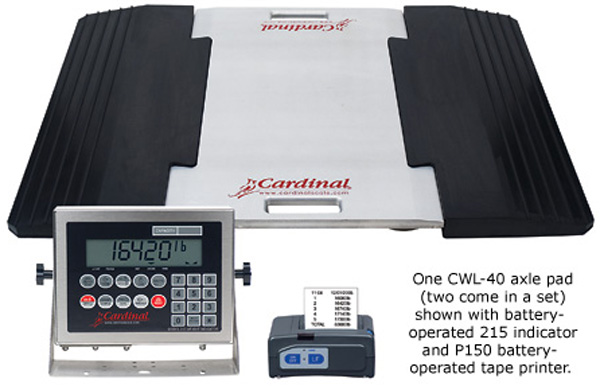

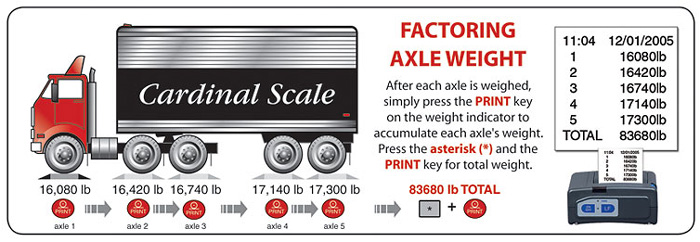

Cardinal's model CWL-40 portable axle weighers are rugged, but light enough for easy transport, weighing in at only 60 pounds per platform. They feature rechargeable battery power and can factor axle weight and gross weight. With Cardinal's model P150 battery-operated portable tape printer, you may print axle weight, gross weight, time, and date.
Chatillon crane scales
215 Indicator
Chatillon crane scales
P150 Printer

View Specifications Cart

Cardinal CWL-40 Portable Axle Weigher

Detecto P-150 Mobile Tape Printer With Serial Interface
Detecto P-150 Mobile Tape Printer With Serial Interface, add $705.00

View Spec Cart

Cardinal's model CWL-40 portable axle weighers are rugged, but light enough for easy transport, weighing in at only 60 pounds per platform. They feature rechargeable battery power and can factor axle weight and gross weight. With Cardinal's model P150 battery-operated portable tape printer, you may print axle weight, gross weight, time, and date. The interlocking rubber ramps snap perfectly into place with the CWL-40's unique design.

FEATURES

  • Low-profile (1.75 inch/44mm high) design with integral transport handle
  • Six strain gauge load cell design Large enough to weigh dual axles
  • Corrosion resistant

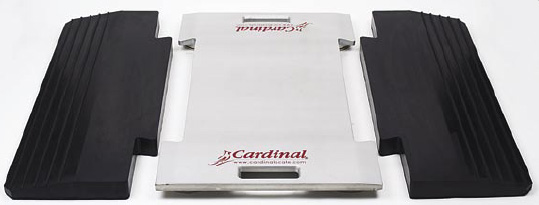

  • Interlocking rubber ramps
  • Optional cigarette lighter adapter and clamps for car battery adapter
  • Rubber ramps for easy access. Ramps are interlocking and constructed from slip-resistant black rubber. Ramps measure 28 inches x 10 inches (71 x 25 cm).

Model CWL-40 CWL-40
Bundle
Capacity x Readability
Per Platform
20,000 x 20 lb 20,000 x 20 lb
9,000 x 10 kg 9,000 x 10 kg
No of Platforms 2 2
Price Cardinal Detecto CWL-40 P
$6,300.00
buy now
Cardinal Detecto CWL-40 B
$7,450.00
buy now
215 indicator NO YES 1
P150 Printer NO YES 1
Total Capacity 40,000 lb 40,000 lb
18,000 kg 18,000 kg 90,000 kg
Platform Size 24" L x 14" W (61 cm L x 36 cm W) weighing surface
Overall Size: 28" L x 17.5" W x 1.7" H (72 cm L x 45 cm W x 4 cm H)
Weight 60 lbs (27 kg) per platform
Safe Overload 150% of capacity
Output Per Platform 1.75mV/V
Input Resistance 750 ohms
Output Resistance 750 ohms
No. of Load Cells 6 each strain gauge load cells
Maximum Resolution 1,000 divisions
Accuracy The greater of +/-0.3% applied load or 1 division
