Chatillon CMA-Series Crane Scales Chatillon Scales
Authorized Dealer
The Chatillon CMA Series scale is supplied with hanging loop, S-hook, charger/adapter with US, EU and UK plug adapter. The CMA Series is supplied with a Certificate of Calibration with NIST
Chatillon crane scales

View Spec Cart    View Dimensions

The CHATILLON® CMA Series digital scale is a precision weighing solution for high capacity weighing. The CMA Series is ideal for warehouse applications. The CMA Series is available in six capacities from 1320 lbs to 22,000 lbs (600 to 10,000 kg). All CMA Series have a measurement accuracy of better than 0.2% full scale. The scale features an easy-to-read, LED display that indicates measured values in either pounds (lbs) or kilograms (kg). A cast aluminum housing makes the CMA ideal for harsh environments. The CMA Series is powered using rechargeable battery pack. The scale can display the peak weight. You may add accessories and tare out their weight up to 100% of the scale’s rated capacity. Operation is simple using the integral push-button style keys or using the optional wireless remote controller. The remote controller lets you change units, clear measurements, zero and tare out weight at a distance of up to 100 feet (30 m).

Chatillon CMA-Series Digital Crane Scales


Chatillon CMAI Replacement Remote Control For CMA Series Digital Crane Scales, add $90.25

Chatillon Replacment Battery for CMA series, add $83.60

View Spec Cart

View Dimensions

Remote Control (CMAI)

The CMA Series scale is supplied with hanging loop, S-hook, charger/adapter with US, EU and UK plug adapter. The CMA Series is supplied with a Certificate of Conformance. An optionally available Certificate of Calibration with NIST is available

High Capacity Digital Weighing for Tough Applications.
The CMA Series is available in six capacities from 1320 lbs to 22,000 lbs (600 to 10,000 kg). All CMA Series have a measurement accuracy of better than 0.2% full scale. The scale features an easy-to-read, LED display that indicates measured values in either pounds (lbs) or kilograms (kg) and a cast aluminum housing. The CMA Series is powered using rechargeable battery pack. The scale can display the peak weight.

Available NIST Certificate
The CMA Series is available in six capacities with a measurement accuracy of better than 0.2% full scale.

Models are available with an optional Certificate of Calibration for an additional price

Remote Control
Operation is simple using the integral push-button style keys or using the optional wireless remote controller. The remote controller lets you change units, clear measurements, zero and tare out weight at a distance of up to 100 feet (30 m).

500% Ultimate Overload
The CMA Series features a safe overload rated at 150% of full scale. The ultimate overload for the CMA is rated at 500% of full scale.

Compliant
The CMA Series is CE compliant and meets the requirements of WEEE and ROHS.

Bright LED Display
The CMA Series features a large, bright LED display for easy viewing at a distance.

Features
  • Displays LB and Kg units of measure
  • Rugged, Cast Aluminum Housing
  • Bright, LED Display, Large View Area
  • Wireless Remote Indicator can be located up to
  • 100 ft (30 m) away from the measuring head
  • Peak Weigh Capture
  • 150% Safety Overload (500% Ultimate Overload)
  • Rechargeable Battery
  • 1 Year Warranty
Model
w/ NIST Cert
CMA-1320-N CMA-2200-N CMA-4400-N CMA-6600-N CMA-11K-N CMA-22K-N
Price Chatillon CMA-1320-N Digi
$1,070.40
buy now
Chatillon CMA-2200N Digit
$1,070.40
buy now
Chatillon CMA-4400-N Digi
$1,359.20
buy now
Chatillon CMA-6600-N Digi
$1,457.60
buy now
Chatillon CMA-11K-N Digit
$1,846.40
buy now
Chatillon CMA-22K-N Digit
$1,943.20
buy now
Capacity 1320 lb x 0.5 lb
600 kg x 0.1 kg
2200 lb x 0.5 lb
1000 kg x 0.2 kg
4400 lb x 1 lb
2000 kg x 0.5 kg
6600 lb x 2 lb
3000 kg x 1 kg
11,000 lb x 2 lb
5000 kg x 1 kg
22,000 lb x 5 lb
10,000 kg x 2 kg
Attachment Hook MA-HOOK-S MA-HOOK-S MA-HOOK-S MA-HOOK-L MA-HOOK-L MA-HOOK-X
Accuracy Better than 0.2% of full scale
Safe Overload 150% of rated capacity
Ultimate Overload 500% of rated capacity
Display LED
Display Rate 15Hz
Resolution 3000:1
Data Sampling Rate 60Hz
Power Rechargeable Battery
Continuous Operation 70 hrs (typical)
Key Pad Switch Key-style (On/off, Units, Tare/Zero)
Operating Temperature 32o to 104oF (0o to 40oC)
Storage Temperature -4o to 104oF (-20o to 40oC)
Relative Humidity 0 to 85%
RoHS Compliant Yes
WEEE Compliant Yes
Included Accessories Top Holding Loop - Bottom Swivel Hook (Permanently attached) - Battery Charger/Adapter - Certificate of Conformance - User Guide

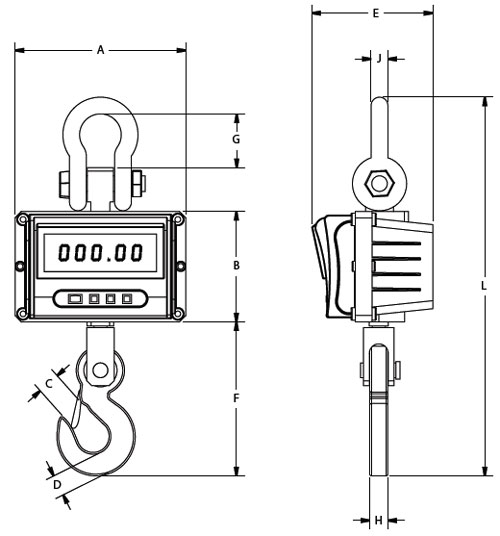

Dimensions

Model A B C D E F G H J L
CMA-1320 10.63”
270mm
6.77”
172mm
1.97”
50mm
1.85”
47mm
7.53”
191mm
9.56”
243mm
3.26”
83mm
1.12”
28mm
0.98”
25mm
24.02”
610mm
CMA-2200 10.63”
270mm
6.77”
172mm
1.97”
50mm
1.85”
47mm
7.53”
191mm
9.56”
243mm
3.26”
83mm
1.12”
28mm
0.98”
25mm
24.02”
610mm
CMA-4400 10.63”
270mm
6.77”
172mm
1.97”
50mm
1.85”
47mm
7.53”
191mm
9.56”
243mm
3.26”
83mm
1.12”
28mm
0.98”
25mm
24.02”
610mm
CMA-6600 10.63”
270mm
6.77”
172mm
1.97”
50mm
1.85”
47mm
7.53”
191mm
9.56”
243mm
3.26”
83mm
1.12”
28mm
0.98”
25mm
24.02”
610mm
CMA-11K 11.69”
297mm
7.32”
186mm
1.97”
50mm
1.97”
50mm
9.25”
235mm
12.2”
310mm
4.53”
115mm
1.58”
40mm
1.18”
30mm
28.94”
735mm
CMA-22K 11.69”
297mm
7.32”
186mm
2.17”
55mm
2.76”
70mm
9.25”
235mm
14.9”
380mm
5.12”
130mm
1.65”
42mm
1.50”
38mm
33.27”
845mm
