Chatillon CDR-Series Crane Scales Chatillon Scales
Authorized Dealer
The CHATILLON® CDR Series digital scale is an economical weighing solution for general purpose weighing. The CDR Series is available in five capacities with a measurement accuracy of better than 0.2% full scale.

View Specifications Cart

Chatillon CDR-Series Digital Crane Scales


Chatillon CDRI Replacement remote for Chatillon CDR Crane scales, add $90.25

View Spec Cart

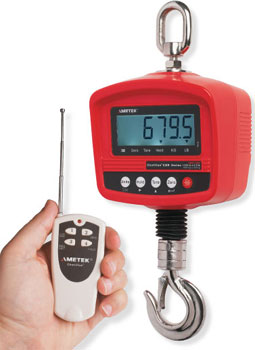

The CHATILLON® CDR Series digital scale is an economical weighing solution for general purpose weighing. The CDR Series is available in five capacities with a measurement accuracy of better than 0.2% full scale. The scale features an easy-to-read, backlighted LCD display that indicates measured values in either pounds (lbs) or kilograms (kg). The CDR Series is powered using rechargeable battery pack. The scale can display the peak weight. You may add accessories and tare out their weight up to 100% of the scale’s rated capacity. Operation is simple using the integral membrane-style keypad.

The standard remote controller allows users to change units, clear measurements, zero and tare out weight and capture peak weight at a distance of up to 100 feet (30m). The remote controller may not be used with the CDR-66-N.

The CHATILLON® CDR Series digital scale is an economical weighing solution for general purpose weighing. The CDR Series is available in five capacities with a measurement accuracy of better than 0.2% full scale. The scale features an easy-to-read, backlighted LCD display that indicates measured values in either pounds (lbs) or kilograms (kg). The CDR Series is powered using rechargeable battery pack. The scale can display the peak weight. You may add accessories and tare out their weight up to 100% of the scale’s rated capacity. Operation is simple using the integral membrane-style keypad

The standard remote controller allows users to change units, clear measurements, zero and tare out weight and capture peak weight at a distance of up to 100 feet (30m). The remote controller may not be used with the CDR-66

The CDR Series scale is supplied with hanging loop, S-hook, charger/adapter and power converter/surge protector for USA, EU, UK, Japan, Thailand, and Australian power configurations. The CDR Series is supplied with a Certificate of Calibration with NIST data

    Features
  • Displays Lb and Kg units of measure
  • Rugged Housing
  • Peak Weight Capture
  • 300% Safety Overload (500% Ultimate Overload)
  • Rechargeable Battery
  • 1 Year Warranty
Model w/ NIST Cert CDR-66-N CDR-132-N CDR-330-N CDR-660-N CDR-1320-N
Price Chatillon CDR-66-N Digita
$341.60
buy now
Chatillon CDR-132-N Digit
$438.40
buy now
Chatillon CDR-330-N Digit
$582.40
buy now
Chatillon CDR-660-N Digit
$677.60
buy now
Chatillon CDR-1320-N Digi
$775.20
buy now
Capacity 66 lb x 0.02 lb
30 kg x 10 g
132 lb x 0.05 lb
60 kg x 20 g
330 lb x 0.1 lb
150 kg x 50 g
660 lb x 0.2 lb
300 kg x 100 g
1320 lb x 0.5 lb
600 kg x 200 g
CDRI Remote Not Available Included Included Included Included
Accuracy Better than 0.2% of full scale
Safe Overload 300% of rated capacity
Ultimate Overload 500% of rated capacity
Display LCD, Backlighted
Display Rate 15Hz
Resolution 6000:1, 3000:1 (CDR-66-N)
Conformance (CE) EN55011, EN55024, EN61000, IEC 61000-4
Data Sampling Rate 60Hz
Power Rechargeable Battery 6V
Recharge Time Typically 12 hrs
Continuous Operation 30 hrs (typical)
Key Pad Membrane-style (On/off, Units, Tare/Zero, Hold)
Operating Temperature 32o to 104oF (0o to 40oC)
Storage Temperature -4o to 104oF (-20o to 40oC)
Instrument Weights 5 lbs (2.5 kg)
Shipping Weight 8 lbs (3.6 kg)
