Cambridge MODEL 680 Ultra Low Profile Legal For Trade Floor Scales

Call Toll Free:
(800) 832-0055

Quick Jump:

Cambridge MODEL 680 Ultra Low Profile Floor Scales	Authorized Dealer
Cambridge Scale Works Model 680 Series Ultra-Lo Profile Floor Scale are Live safety side rails for oversized loads and roll off protection have a Structural tubular steel design. Anti-skid diamond deck plate and Anti-skid leveling feet Its height is from 1.5 to 2.5 inches
Cambridge Scales >> Floor Scales

Base Only Indicator Sold Separately

Legal For Trade

Cambridge Scale Works Model 680 Series Ultra-Lo Profile Floor Scale are Live safety side rails for oversized loads and roll off protection have a Structural tubular steel design. Anti-skid diamond deck plate and Anti-skid leveling feet Its height is from 1.5 to 2.5 inches MODEL 680 STANDARD FEATURES

Live safety side rails for oversized loads and roll off protection
Structural tubular steel design
Anti-skid diamond deck plate
Anti-skid leveling feet
100% end loading capacity
200% overload protection
20? indicator cable
Four internally mounted NTEP certified 5000 division class III/IIIL water resistant environmentally protected load cells
Easy access leveling feet
Easy access junction board for corner adjusting
Shielded signal and load cell cables
Ultra-lo profile design for jack truck & cart weighing
Powder coated finish
One part in 5000 accuracy

Underside has structural tubular steel design. Load cell position allows live side rails. OPTIONS

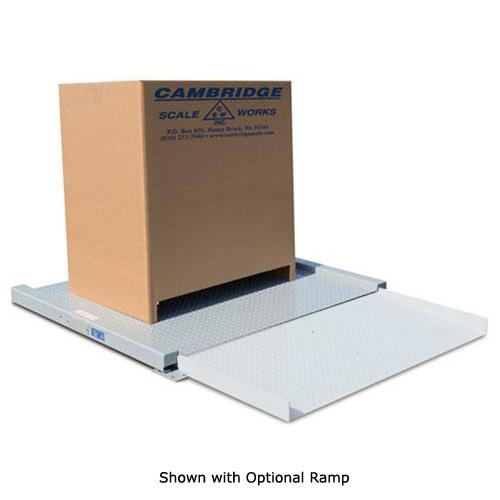

Easy incline ramps
Bumper rail assembly
Harsh environment package
Remote stainless steel junction box
Smooth plate
Stainless steel load cells
"FM" load cells

Other Options - Please call (800) 832-0055 for more info

Remote Stainless Steel "J" Box	Remote S.S. NEMA IV Junction Box with 10 F.T. Sealtite flexible condut with two straight connectors
Stainless Steel Load Cells.	Stainless Steel leveling feet. Stainless Steel hardware.
Stainless Steel hermetically sealed load cells.	Stainless Steel leveling feet. Stainless Steel hardware.
"FM" Approved load cells.	"FM" Approved load cells.

Cambridge MODEL 660 Ultra-Lo Profile Floor Scales

Price From: $1615.50

Select Indicator (Must be added with scale)
	Cambridge (CSW-10AT) NTEP , Add $324.00
	Cambridge (CSW-10AT-B) NTEP Battery Operated , Add $490.50
	Cambridge (SSCSW-10AT) NTEP Stainless Steel , Add $585.00
	Cambridge (SSCSW-10AT-B) NTEP Stainless Steel & Battery , Add $715.50
	Cambridge (CSW-15AT) NTEP Wireless , Add $985.50
	Cambridge (CSW-15AT-B) NTEP Wireless & Battery , Add $1138.50
	Cambridge (CSW-20AT) NTEP Numeric Keypad , Add $652.50
	Cambridge (CSW-20AT-B) NTEP Numeric Keypad & Battery , Add $805.50
	Cambridge (SSCSW-20AT) NTEP Stainless Steel Numeric Keypad , Add $855.00
	Cambridge (SSCSW-20AT-B) NTEPStainless Steel Numeric Keypad & Battery , Add $967.50

Options Must be added with scale

(Some Factory Installed)

Indicator Column\Stand
	Cambridge - (50267) Attached Indicator Column with Indicator Mounting Plate for 660 48 inch high, add $306.00
	Cambridge Stainless Steel 48 inch Rigid Free Standing Indictor Stand (50490), add $387.00

Ramps
	Cambridge RAM68036182 Model 680 Series Ramp 36 x 18 x 1.5, add $292.50
	Cambridge RAM68048245 Model 680 Series Ramp 48 x 24 x 2, add $382.50
	Cambridge RAM68048241 Model 680 Series Ramp 48 x 24 x 2, add $375.30
	Cambridge RAM68060305 Model 680 Series Ramp 60 x 30 x 2.5, add $459.00
	Cambridge RAM68060301 Model 680 Series Ramp 60 x 30 x 2.5, add $504.00

4 Side Bumper Guard
	Cambridge 680BUM30 Model 680 Series Bumper Rail Assembly 30 Inches, add $90.00
	Cambridge 680BUM36 Model 680 Series Bumper Rail Assembly 36 Inches, add $99.00
	Cambridge 680BUM48 Model 680 Series Bumper Rail Assembly 48 Inches, add $112.50
	Cambridge 680BUM60 Model 680 Series Bumper Rail Assembly 60 Inches, add $126.00

Cambridge Scale MODEL 680 Series Ultra-Low Profile Floor Scales

Model	Pan Size (Inch)	Capacity x Readability	Legal For Trade		Price Base Only	Price with CSW-10AT Indicator	Overall Size (Inch)
680UL30301	30 x 30 x 1.5	1,000 x 0.1 lb	NO	-	$1,615.50	$1,939.50	36 x 30
680UL30302	30 x 30 x 1.5	2,500 x 0.5 lb	NO	-	$1,615.50	$1,939.50	36 x 30
680UL36361	36 x 36 x 1.5	1,000 x 0.1 lb	NO	-	$1,678.50	$2,002.50	42 x 36
680UL36362	36 x 36 x 1.5	2,500 x 0.5 lb	NO	-	$1,687.50	$2,011.50	42 x 36
680UL36481	36 x 48 x 1.5	1,000 x 0.1 lb	NO	-	$1,705.50	$2,029.50	42 x 48
680UL36482	36 x 48 x 1.5	2,500 x 0.5 lb	NO	-	$1,705.50	$2,029.50	42 x 48
680UL48485	48 x 48 x 2	5,000 x 0.5 lb	YES	5,000 x 1 lb	$1,795.50	$2,119.50	54 x 48
680UL48481	48 x 48 x 2	10,000 x 1 lb	YES	10,000 x 2 lb	$1,957.50	$2,281.50	54 x 48
680UL48605	48 x 60 x 2	5,000 x 0.5 lb	YES	5,000 x 1 lb	$1,957.50	$2,281.50	54 x 60
3860-1013-00	48 x 60 x 2	10,000 x 1 lb	YES	10,000 x 2 lb	$2,115.00	$2,439.00	54 x 60
680UL48725	48 x 72 x 2	5,000 x 0.5 lb	YES	5,000 x 1 lb	$2,115.00	$2,439.00	54 x 72
680UL48721	48 x 72 x 2	10,000 x 1 lb	YES	10,000 x 2 lb	$2,295.00	$2,619.00	54 x 72
680UL60605	60 x 60 x 2.5	5,000 x 0.5 lb	YES	5,000 x 1 lb	$2,227.50	$2,551.50	66 x 60
680UL60601	60 x 60 x 2.5	10,000 x 1 lb	YES	10,000 x 2 lb	$2,515.50	$2,839.50	66 x 60
680UL60725	60 x 72 x 2.5	5,000 x 0.5 lb	YES	5,000 x 1 lb	$2,515.50	$2,839.50	66 x 72
680UL60601	60 x 72 x 2.5	10,000 x 1 lb	YES	10,000 x 2 lb	$2,785.50	$3,109.50	66 x 72
680UL60845	60 x 84 x 2.5	5,000 x 0.5 lb	YES	5,000 x 1 lb	$2,785.50	$3,109.50	66 x 84
680UL60841	60 x 84 x 2.5	10,000 x 1 lb	YES	10,000 x 2 lb	$3,055.50	$3,379.50	66 x 84
